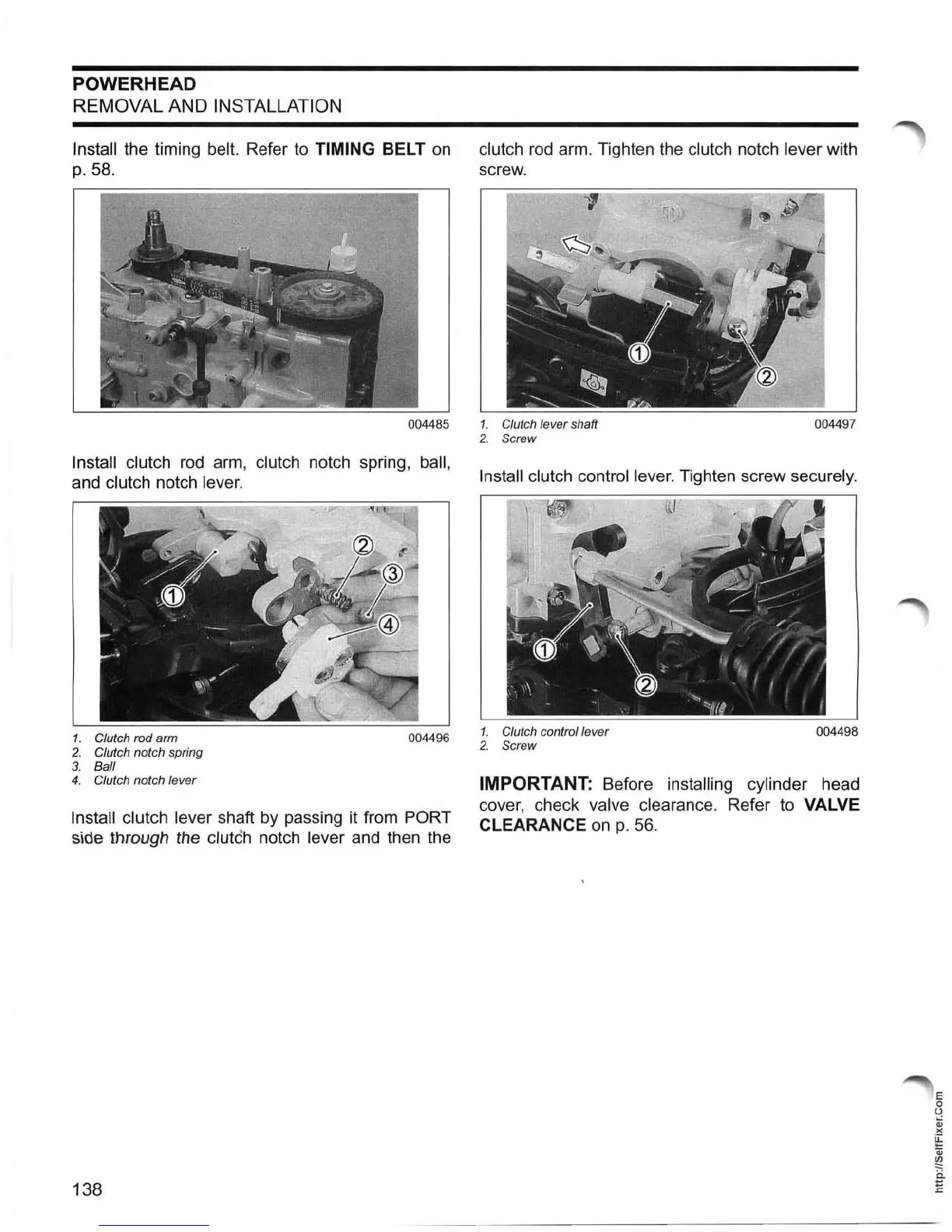

POWERHEAD
REMOVAL AND INSTALLATION
Install the timing belt. Refer to TIMING BELT on clutch rod arm. Tighten the clutch notch lever with
p. 58. screw.
004485
Install clutch rod arm, clutch notch spring, ball,
and clutch notch lever.
1. Clutch rod arm
004496
2. Clutch notch spring
3. Ball
4. Clutch notch lever
Install clutch lever shaft by passing it from PORT
side through the clutch notch lever and then the
138
1. Clutch lever shaft 004497
2. Screw
Install clutch control lever. Tighten screw securely.
1. Clutch control lever 004498
2. Screw
IMPORTANT: Before installing cylinder head
cover, check
valve clearance. Refer to VALVE
CLEARANCE on p. 56.
