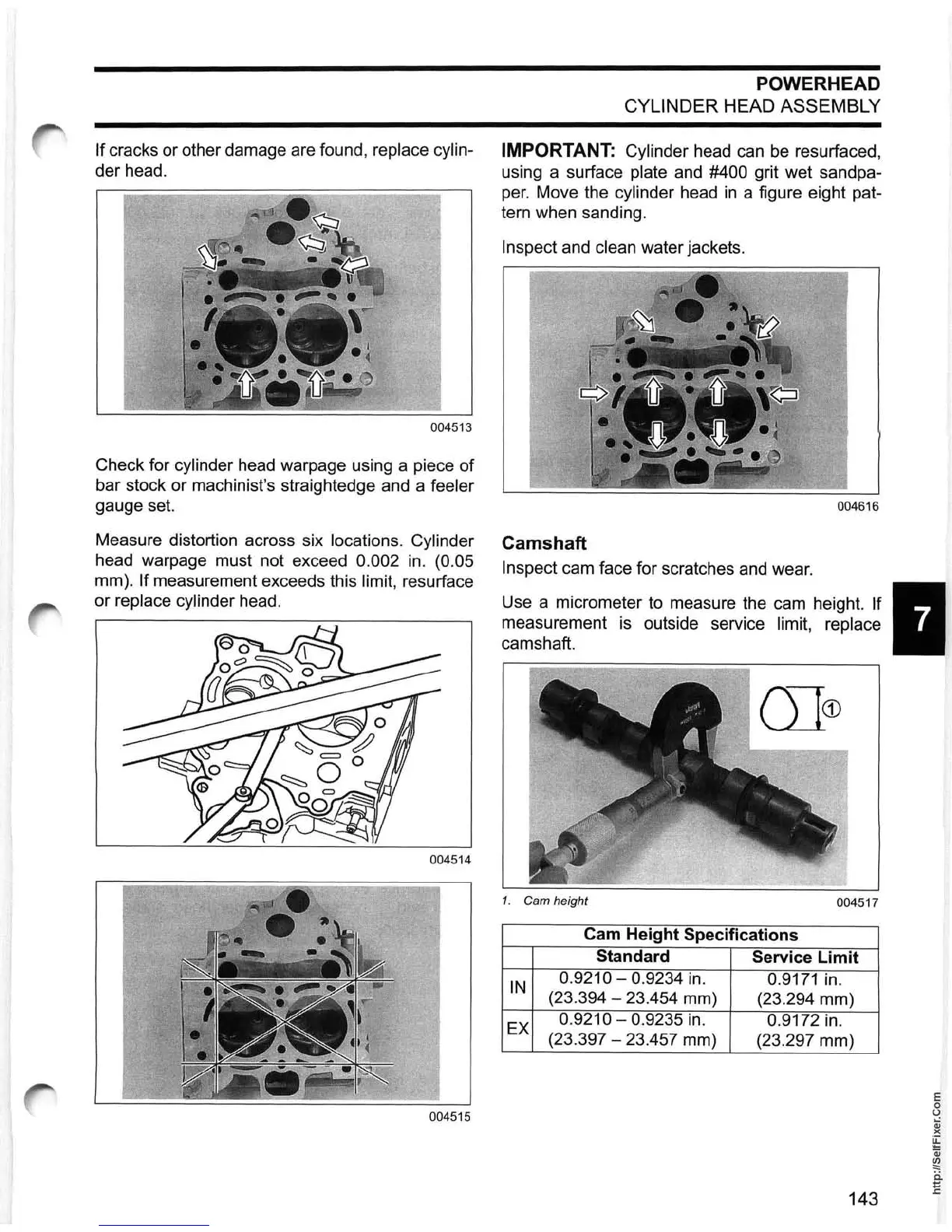

If cracks or other damage are found, replace cylin-
der head.
004513
Check for cylinder head warpage using a piece of
bar stock or machinist's straightedge and a
feeler
gauge set.
Measure distortion across six
locations. Cylinder
head warpage must not exceed 0.002
in.
(0.05
mm). If measurement exceeds this limit, resurface
or
replace cylinder head.
004514
004515
POWERHEAD
CYLINDER HEAD ASSEMBLY
IMPORTANT: Cylinder head
can
be
resurfaced,
using a surface
plate and #400 grit wet sandpa-
per.
Move the cylinder head
in
a figure eight pat-
tern when sanding.
Inspect and clean water jackets.
004616
Camshaft
Inspect cam face for scratches
and
wear.
Use a micrometer to measure the cam height.
If 7
measurement
is
outside service limit, replace
camshaft.
1.
Cam height
004517
Cam Height Specifications
Standard
Service Limit
IN
0.9210 - 0.9234
in.
0.9171
in.
(23.394 - 23.454 mm)
(23.294 mm)
EX
0.9210 - 0.9235
in.
0.9172
in.
(23.397 - 23.457 mm)
(23.297 mm)
143
