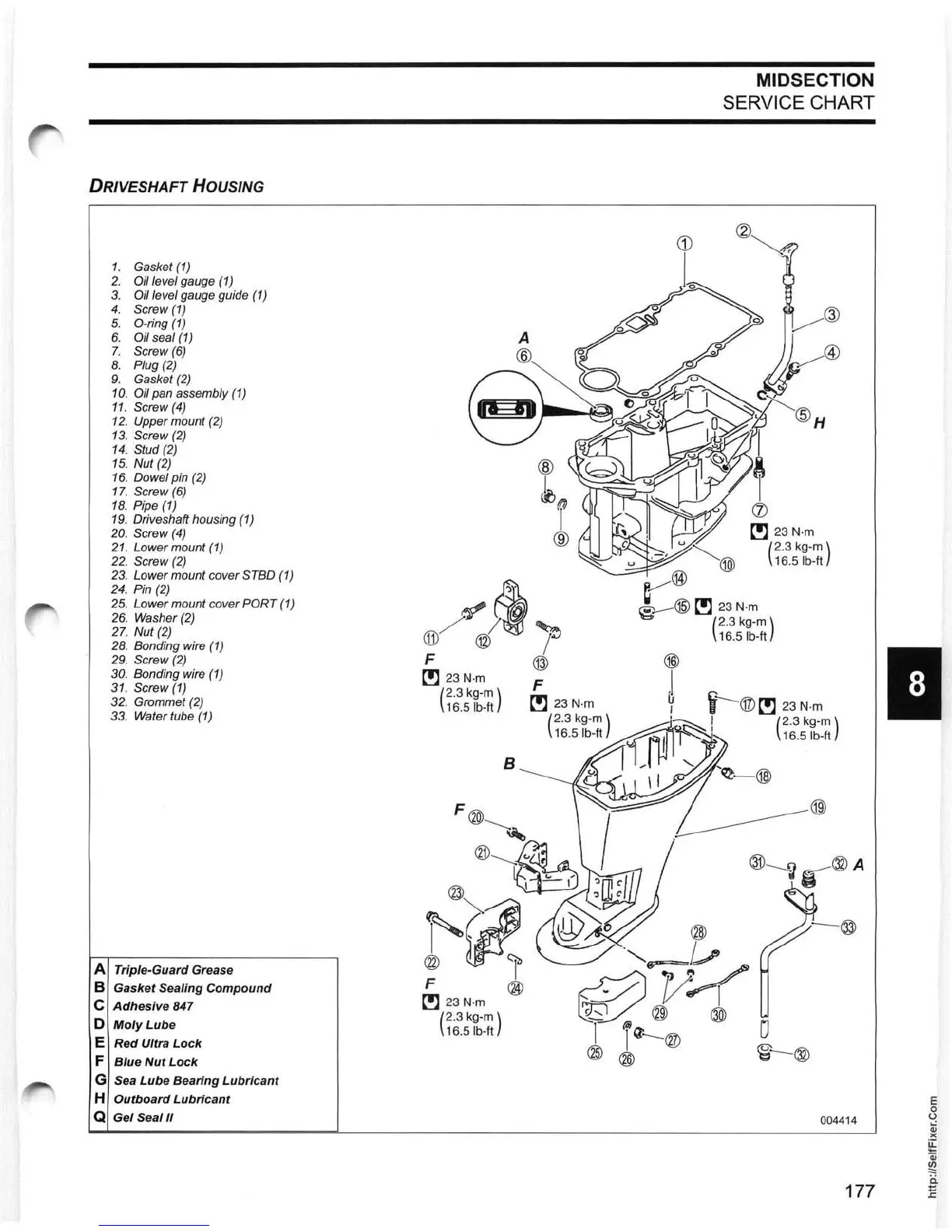

DRIVESHAFT HOUSING
1. Gasket (1)
2. Oil level gauge (1)
3. Oil level gauge guide (1)
4. Screw (1)
5. a-ring (1)
6. Oil seal (1)
7. Screw (6)
8. Plug (2)
9. Gasket (2)
10. Oil pan assembly (1)
11 . Screw (4)
12. Upper mount (2)
13 . Screw (2)
14. Stud (2)
15. Nut (2)
16 . Dowel pin (2)
17. Screw (6)
18 . Pipe (1)
19 . Driveshaft housing (1)
20. Screw (4)
21. Lowermount(1)
22.
Screw (2)
23. Lower mount cover STBD (1)
24. Pin (2)
25. Lower mount cover PORT (1)
26. Washer
(2)
27. Nut (2)
28. Bonding wire (1)
29. Screw (2)
30. Bonding wire (1)
31 . Screw (1)
32. Grommet (2)
33. Water tube (1)
A Triple-Guard Grease
B Gasket Sealing Compound
C Adhesive 847
o Moly Lube
E Red Ultra Lock
F Blue Nut Lock
G Sea Lube Searing Lubricant
H Outboard Lubricant
Q Gel Seal II
~Ii
®/ JJljr
F ®
~ 23N·m F
(
2.3
kg - m) ,.., 23 N.m
16.5
Ib-ft IL.,j
(
2.3 kg-m )
16. 5Ib-ft
B
F
~ 23N·m
(
2.3
kg-m)
16. 5Ib-ft
MIDSECTION
SERVICE CHART
H
~ 23N ·m
u ~ @)
~®
(
2.3
kg-m)
16.5 Ib -ft
~@~23N . m
(
2.3 kg-m)
16. 5Ib-ft
(
2.3
kg-m)
16. 5Ib -ft
004414
177
