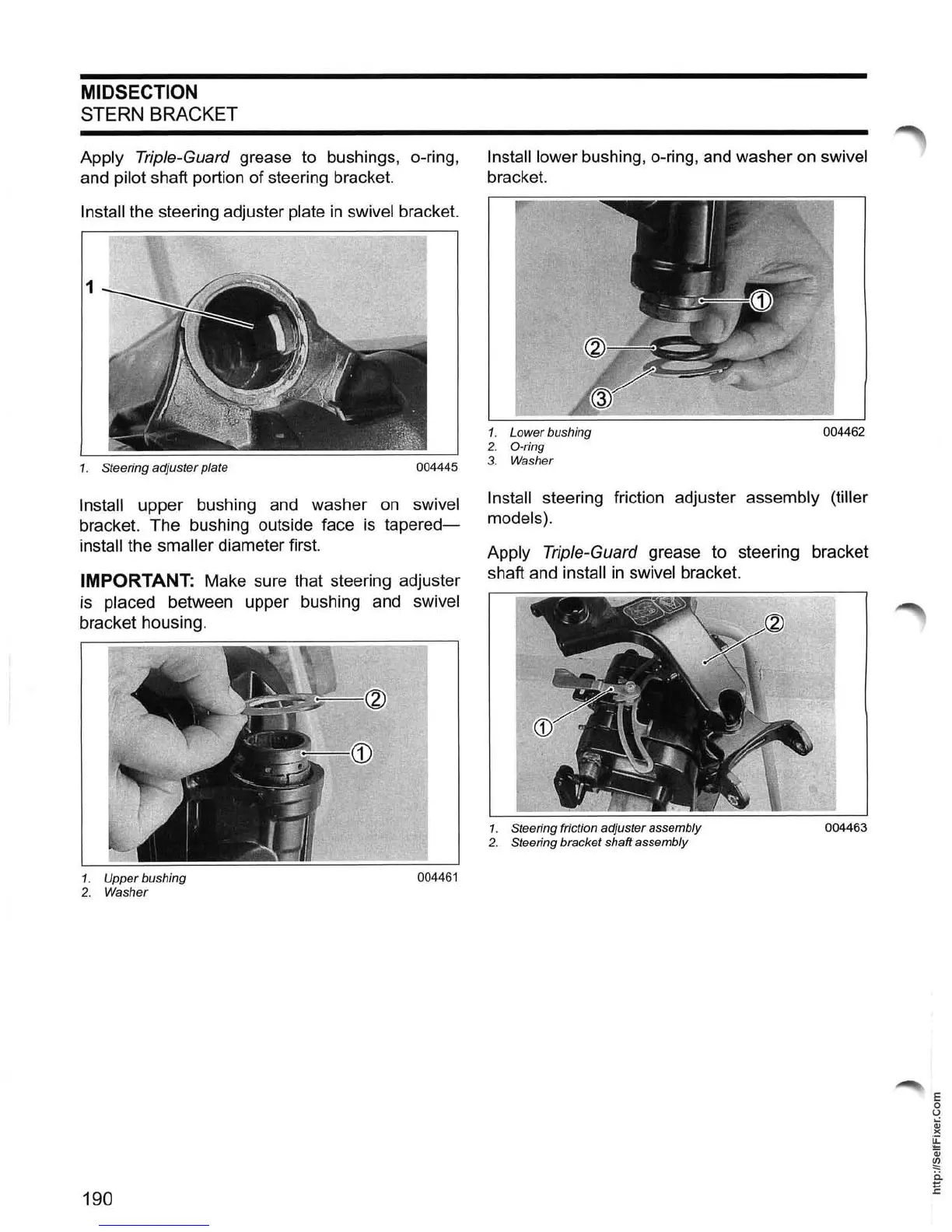

BRP 2995 Johnson - Page 189

MIDSECTION
STERN
BRACKET
Apply Triple-Guard grease to bushings, o-ring,
and pilot shaft portion of steering bracket.
Install the steering adjuster plate in swivel bracket.
1
1. Steering adjuster plate
004445
Install upper bushing and washer on swivel
bracket. The bushing outside face is tapered-
install the smaller diameter first.
IMPORTANT: Make sure that steering adjuster
is placed between upper bushing and swivel
bracket housing.
1. Upper bushing
004461
2. Washer
190
Install lower bushing, o-ring, and washer on swivel
bracket.
1. Lower bushing
004462
2. O-ring
3. Washer
Install steering friction adjuster assembly (tiller
models).
Apply Triple-Guard grease to steering bracket
shaft and install in swivel bracket.
1. Steering friction adjuster assembly
004463
2. Steering bracket shaft assembly
