1. Nut (1)
2. Turnbuckle (1)
3. Nut (1)
4. Washer (1)
5. Stud bolt (1)
6. Collar (1)
7. Shift rod (1)
8. Boot (1)
9. Shift rod guide (1)
10 . a-ring (1)
11 . a -ring (1)
12 . Washer (1)
13 . Spring pin (2)
14 . Shift cam (1)
15. Bolt (4)
16. Bush (1)
17. Grommet (1)
18. Water pump case (1)
19 . Impeller(1)
20. Key (1)
21 . Dowel pin (2)
22. Under panel (1)
23. Gasket (1)
24. Water inlet housing (1)
25. Water drain tube (1)
26. Oil seal (1)
27. Gasket (1)
28. Grommet (1)
29 . Bolt (1)
30. Water inlet tube (1)
31. Grommet (1)
A Triple-Guard Grease
B Gasket Sealing Compound
C Adhesive 847
o MolyLube
F Blue Nut Lock
R DPL Penetrating Lube

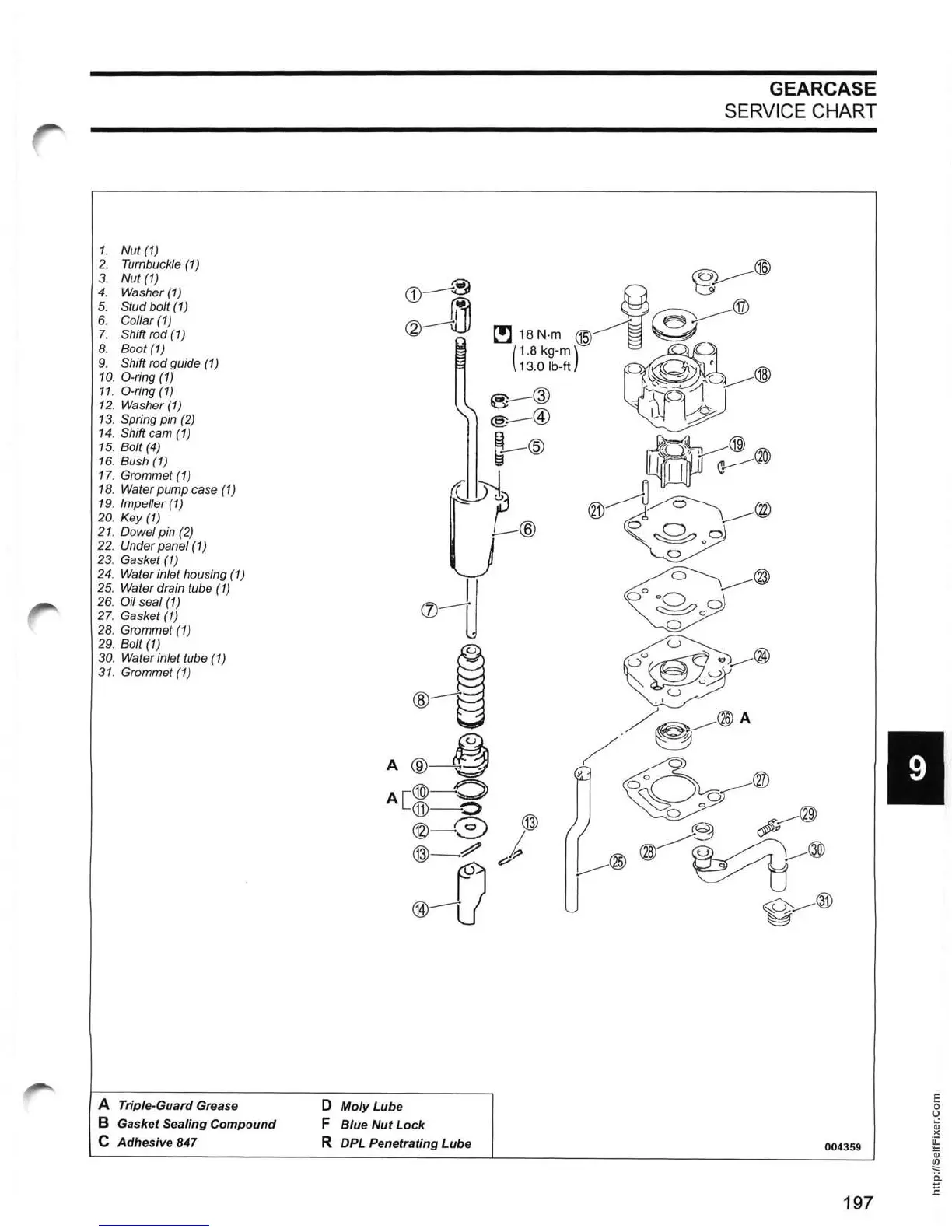

GEARCASE
SERVICE CHART
004359
197
