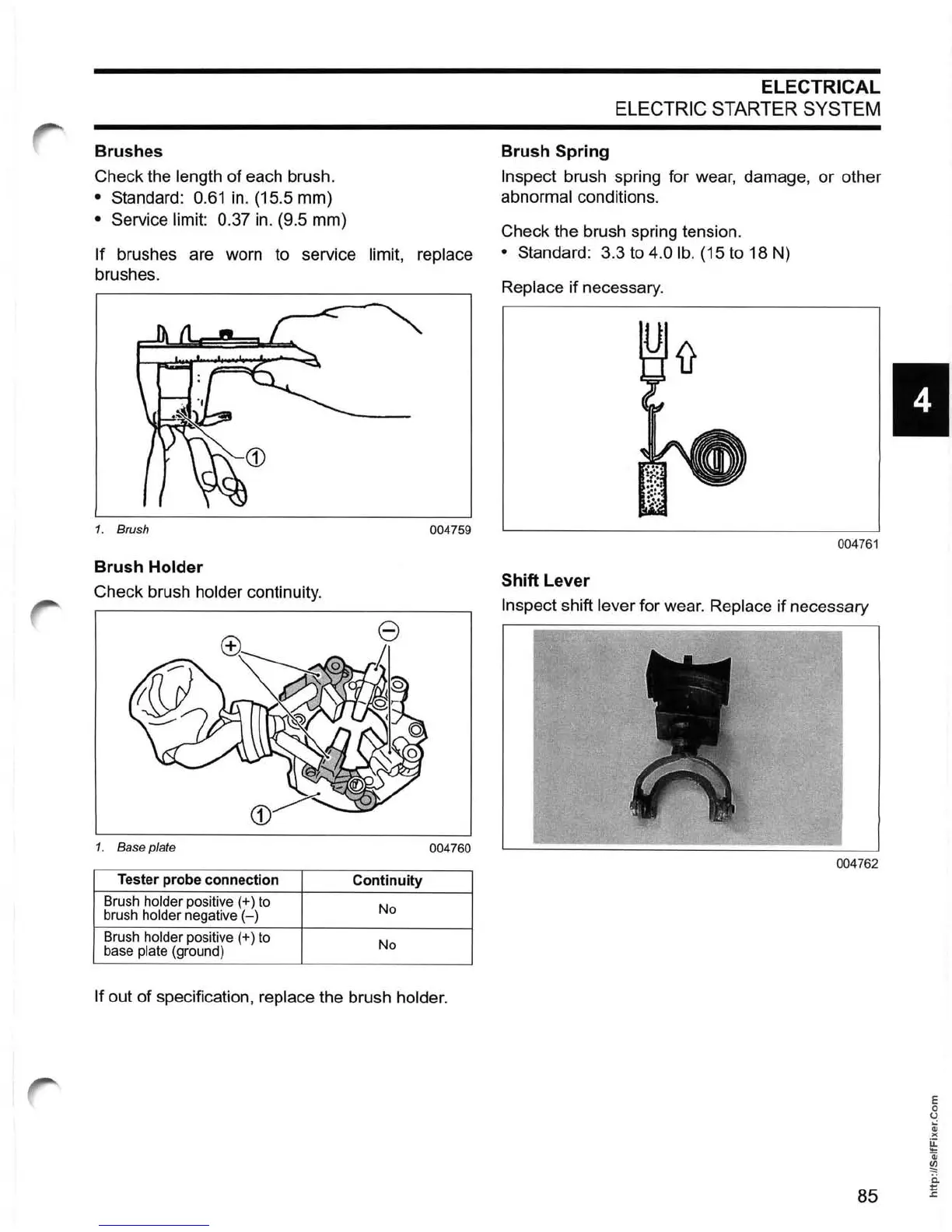

Brushes
Check the length of each brush.
• Standard:
0.61
in.
(15.5 mm)
• Service limit: 0.37
in.
(9.5 mm)
If brushes are worn to service limit, replace
brushes.
1. Brush
004759
Brush Holder
Check brush holder continuity.
1. Base plate
004760
Tester probe connection
Continuity
Brush holder positive (+) to
No
brush
holder negative
(-)
Brush holder positive (+) to
base
plate (ground)
No
If out
of
specification, replace the brush holder.
ELECTRICAL
ELECTRIC STARTER SYSTEM
Brush Spring
Inspect brush spring for wear, damage, or other
abnormal conditions.
Check the brush spring tension.
• Standard: 3.3 to 4.0
lb
. (15 to 18 N)
Replace if necessary.
004761
Shift Lever
Inspect shift lever for wear. Replace if necessary
004762
