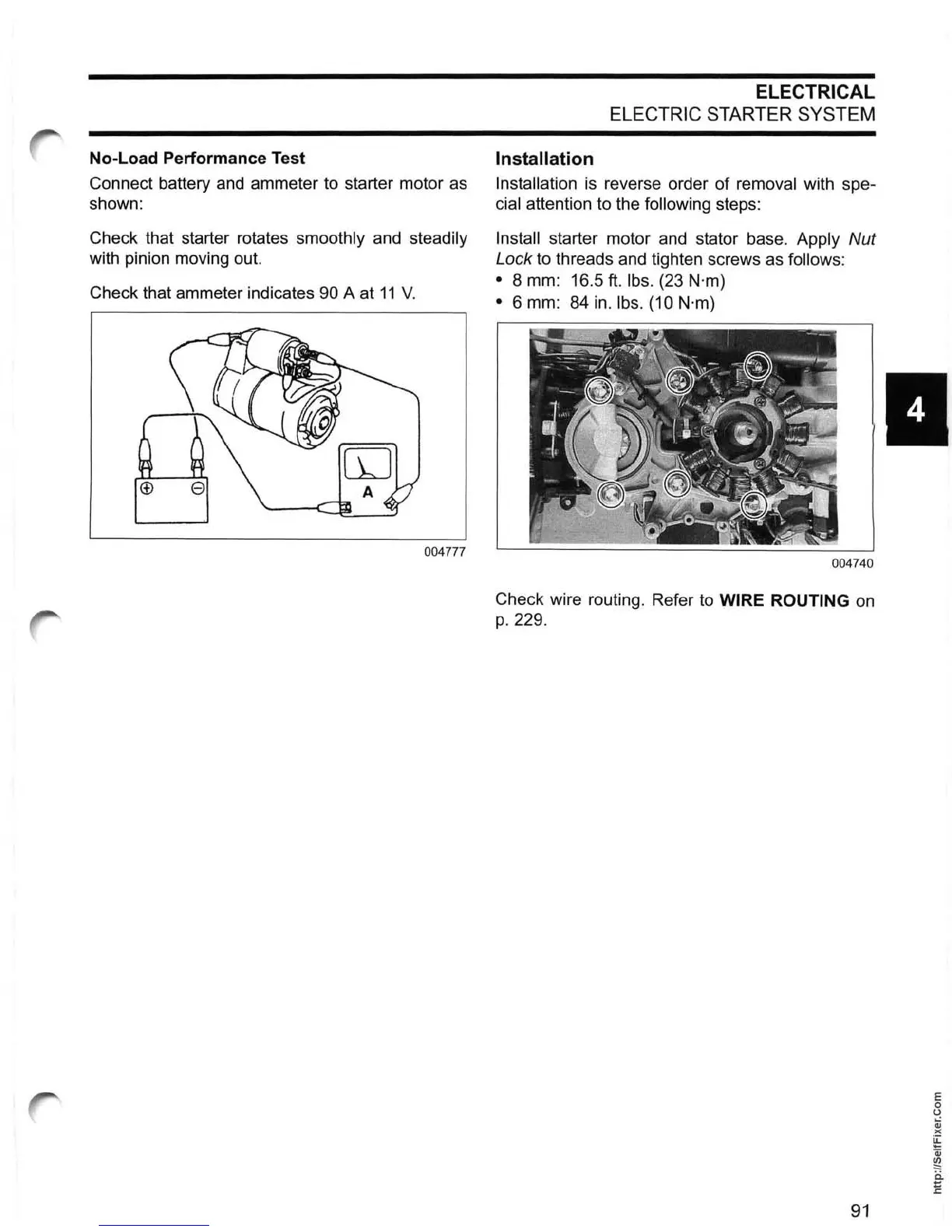

No-Load Performance Test
Connect battery and ammeter to starter motor
as
shown:
Check that starter rotates
smoothly and steadily
with pinion moving out.
Check that ammeter indicates
90
A at
11
v.
004777
ELECTRICAL
ELECTRIC STARTER SYSTEM
Installation
Installation
is
reverse order of removal with spe-
cial attention to the following steps:
Install starter motor and stator base. Apply Nut
Lock
to threads and tighten screws
as
follows:
•
8
mm
: 16.5 ft. Ibs. (23 N·m)
•
6
mm
: 84
in
. Ibs. (10 N·m)
004740
Check wire routing. Refer
to
WIRE ROUTING
on
p.229.
91
