Cleaner Spray Test
The test for the Cleaner spray is used to verify the cleaner coverage. This test allows the technician
to visually see how well the cleaning spray is covering the lane during a cleaning run. The process is
performed in two passes of the lane machine. The rst pass of the machine will clean approximately
25 feet of the bowling lane. The second pass sprays cleaner to the bowling lane as it travels without
interference of the duster and the squeegee assembly. The cleaner will pulse about half way through the
second run. Cleaner spray pressure during this test should be between 17-19 psi. Refer toFigure4-40.

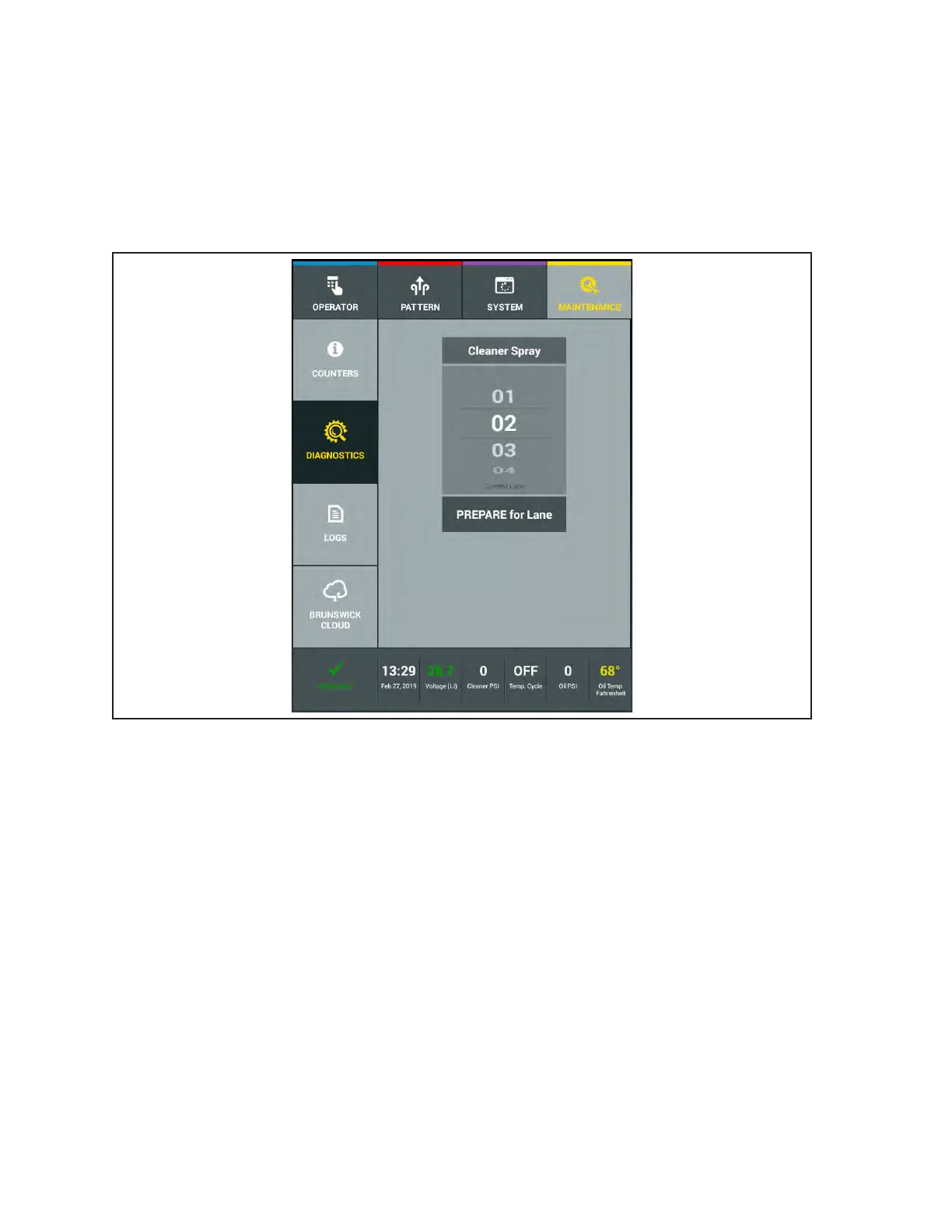

Figure4-40.MaintenanceDiagnosticsCleanerSprayTest
Performing the Cleaner Spray Test
1. Go to the Maintenance menu and select Diagnostics, then select Cleaner Spray Test.
2. Press “PREPARE for Lane” and the machine will prepare itself to run.
3. Push the machine on the lane surface when message appears.
4. Press OK a second time to begin the test.
a. The machine will travel down the lane cleaning, then return to the foul line after it travels
approximately 25 feet.
5. Press OK a second time when the message is displayed.
a. The machine will travel down the lane only spraying the cleaner so you can see the spray
coverage.
