Screen Calibration
The touch screen was calibrated at the factory. However, over time, the calibration of the
touch screen may drift slightly. In order to use the touch screen correctly, it needs to be
calibrated properly. Without the right calibration, the touches will be off center and may
inadvertently select the wrong button.
The CAPRAC
®
-t has a built-in touch screen calibration utility. To perform a screen
calibration, touch the SCREEN CALIB button.
Figure 5-14 Touchscreen Calibration Screen will appear displaying a target in the upper left
corner. Touch the center of the target. After the target is touched it will disappear and
another target will appear in the lower right corner of the screen. Touch the center of this
target. After this target is touched it will disappear and another target will appear in the center
of the screen. Touch the center of this target. After the target is touched, Figure 5-13 Setup
Screen will re-appear. The touch screen calibration procedure is complete.

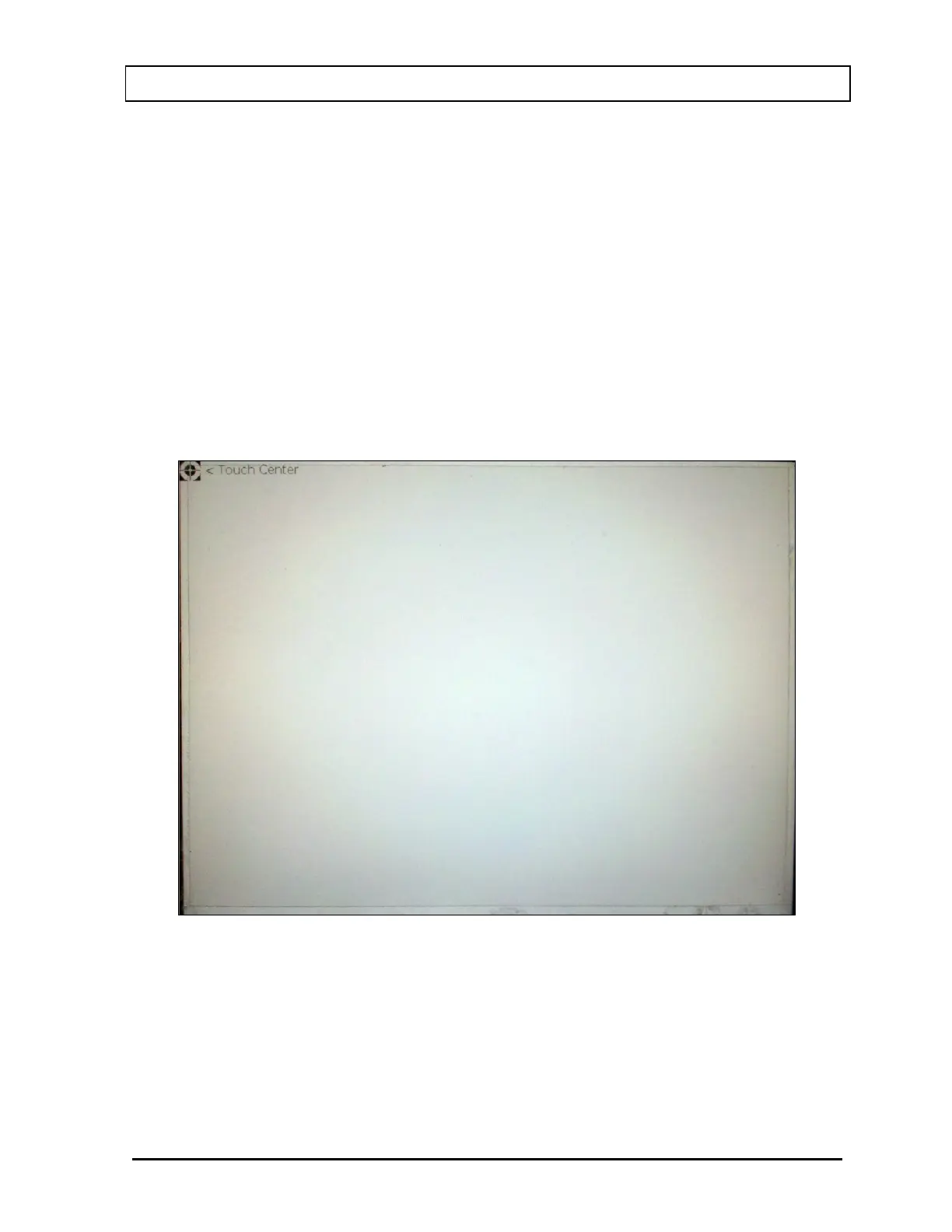

Figure 5-14 Touchscreen Calibration Screen
