SECTION 4 - ELECTRICAL SYSTEM SERVICE
page 4-7
203214C
197560S

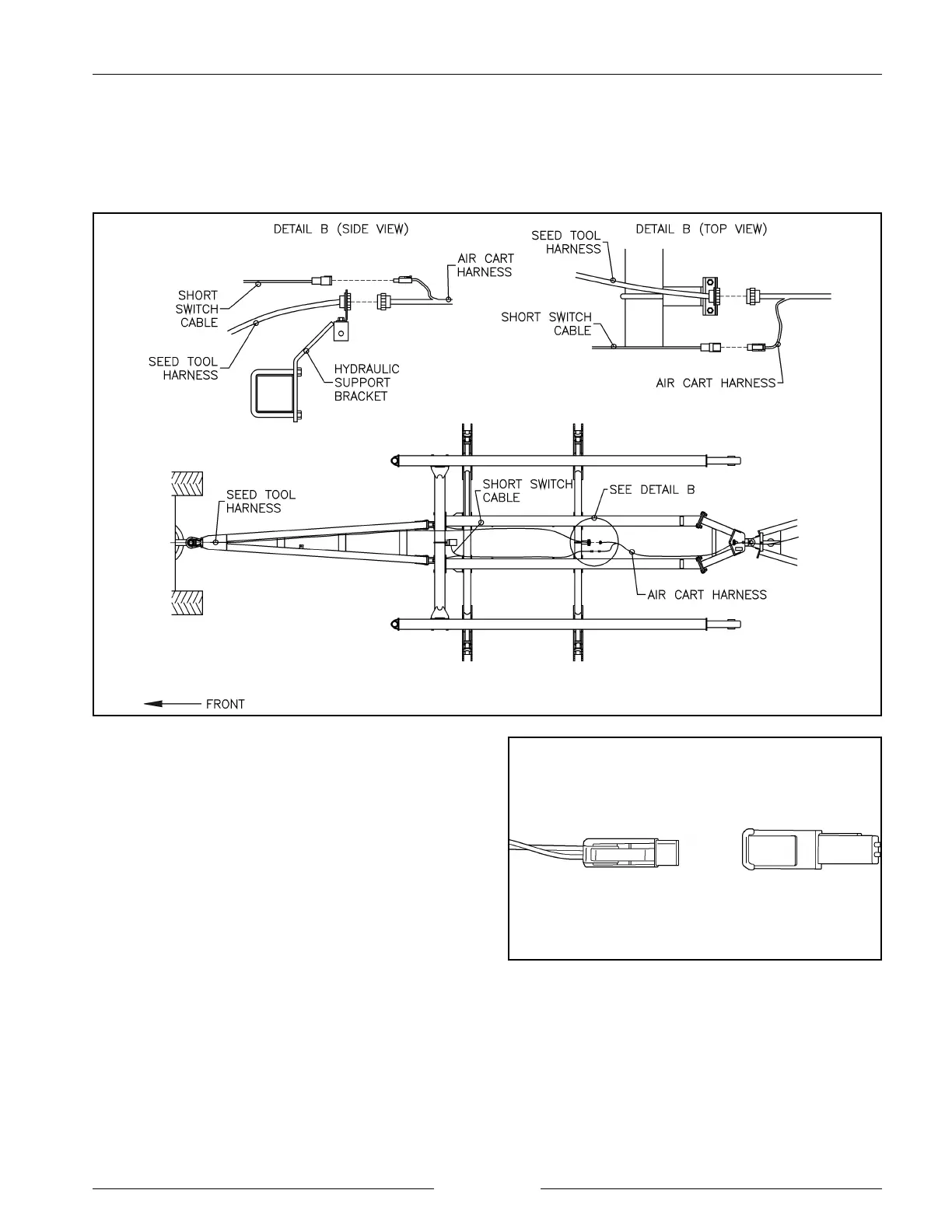

SWITCH WIRE ROUTING (TOW BEHIND)
Use the switch cable supplied to connect the switch to the remote switch connector located at the front of the air cart harness
(Detail B).
NOTE: Be sure the switch wires will not be stretched
or tangled and the switch will not be damaged
as the machine is raised and lowered.
NOTE: The remote switch cable connector on the air
cart harness has a dust cap installed. Remove
this dust cap to connect the switch cable.
