SECTION 4 - ELECTRICAL SYSTEM SERVICE
page 4-8
203213C

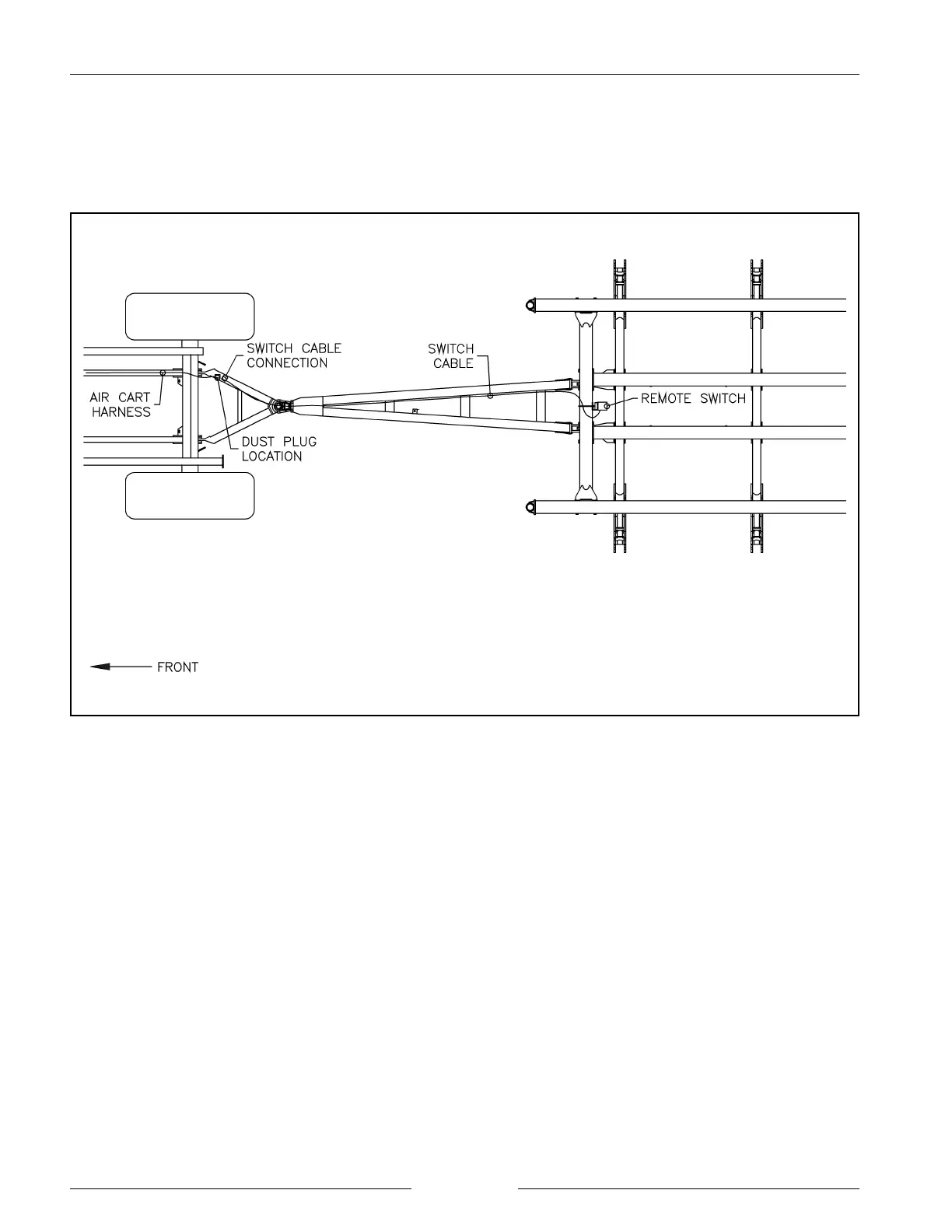

SWITCH WIRE ROUTING (TOW BETWEEN)
Use the longest switch cable supplied to connect the switch to the remote switch connector located at the rear of the air cart
harness.
NOTES:
- Remove the dust cap to connect the switch cable plug.
- The end of the cable with the ring terminals is fastened
to the terminals of the switch.
- Connect the ring terminals to either switch terminal -
polarity does not matter.
- Secure the switch cable to the seeding tool frame or
hydraulic hoses with tie straps provided.
