Cisco Aironet Dual-Band MIMO Wall-Mounted Omnidirectional Antenna (AIR-ANT2544V4M-R)

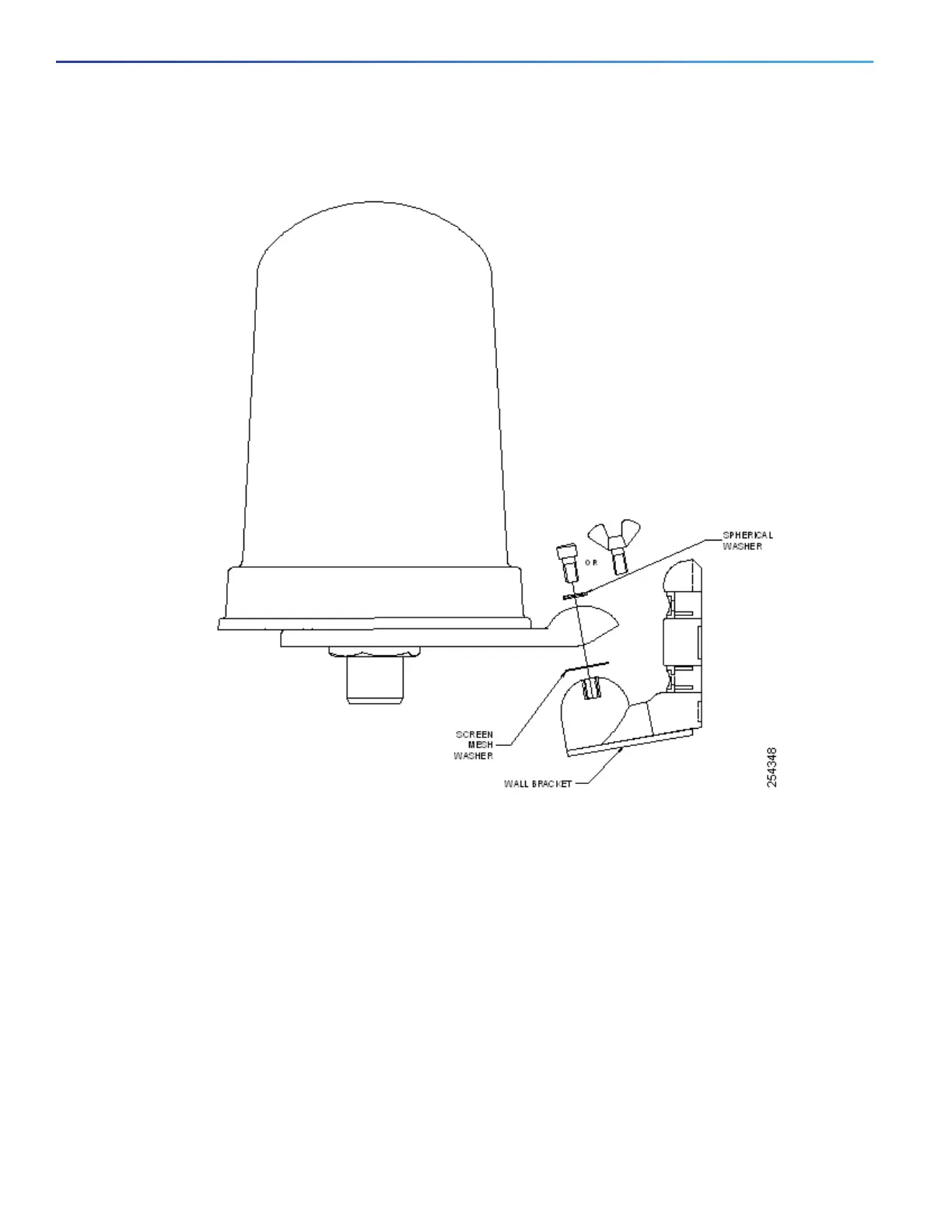

Figure 2 Antenna Bracket Attached to Mounting Bracket

3. Determine the mounting location for the antenna.

4. Attach the wall bracket to the wall using the two screws provided (Figure 3).
