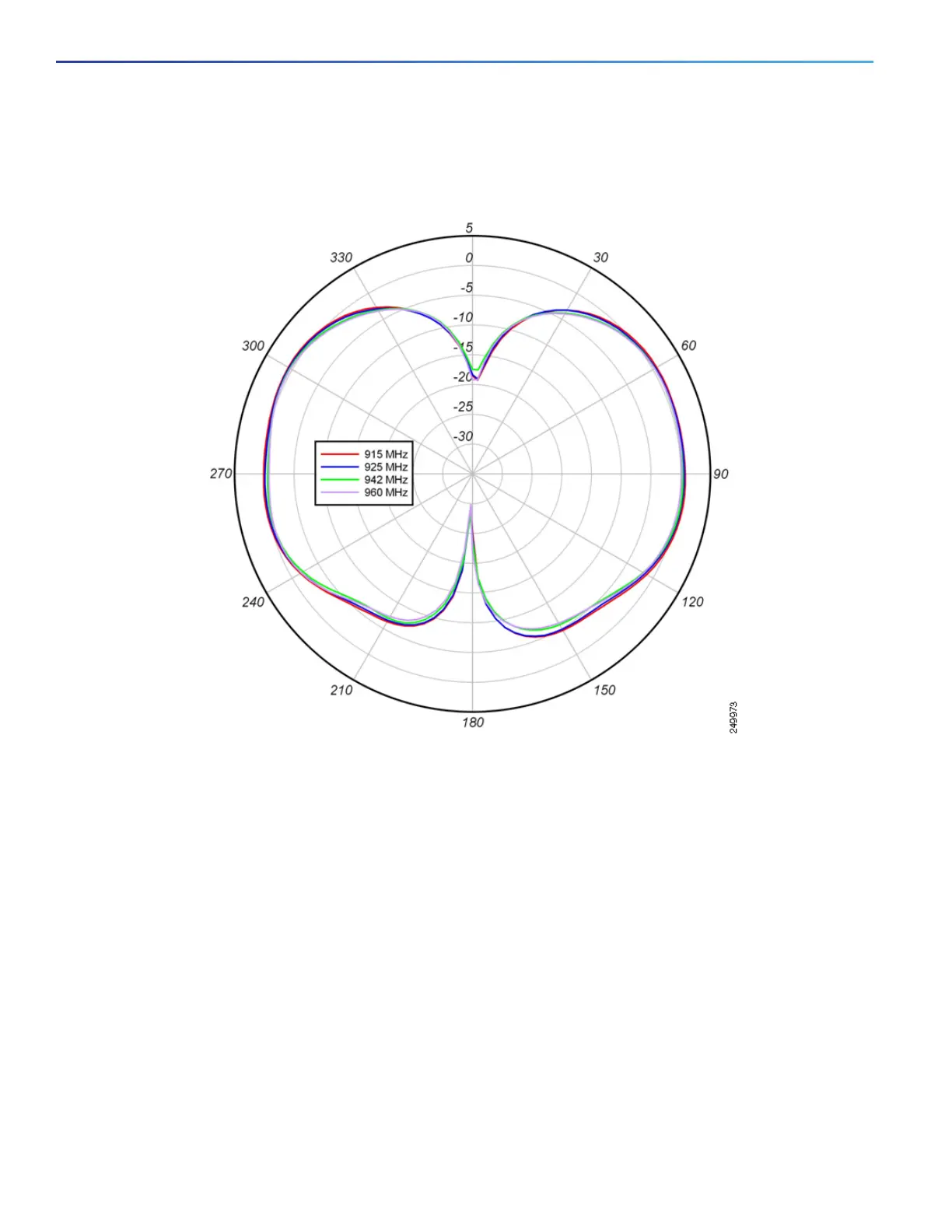

Figure 22 shows the elevation plane patterns (Phi = 90 degree plane cut) for the 900 MHz band for the 4G-ANTM-OM-CM
antenna.
Figure 22 Elevation Plane Patterns (Phi = 90 degree Plane Cut) for the 900 MHz Band
