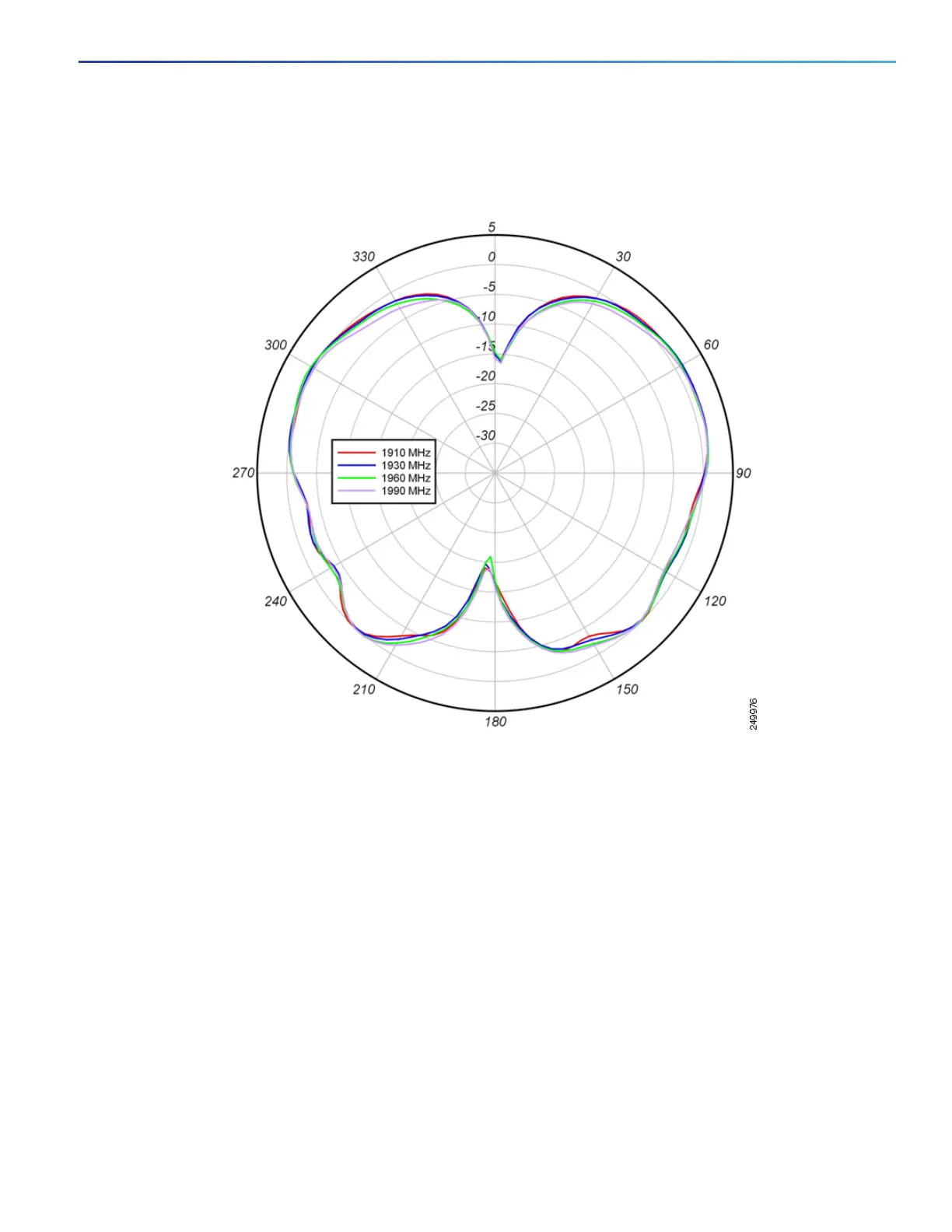

Figure 25 shows the elevation plane patterns (Phi = 90 degree plane cut) for the 1900 MHz band for the 4G-ANTM-OM-CM
antenna.
Figure 25 Elevation Plane Patterns (Phi = 90 degree Plane Cut) for the 1900 MHz Band
