ManagingClientQoSACLs
D-Link UnifiedAccessPointAdministrator’sGuide
November2011 Page132
UnifiedAccessPointAdministrator’sGuide
ThefieldstoconfigureACLrulesappearonlyafteryouhavecreate danACL.Thefollowingimageshowsthe
configurationofanewrulefortheIPv4ACLnamedacl1.TherulepreventsHTTPtrafficfromallclientsinthe
192.168.20.0networkfrombeingforwarded.

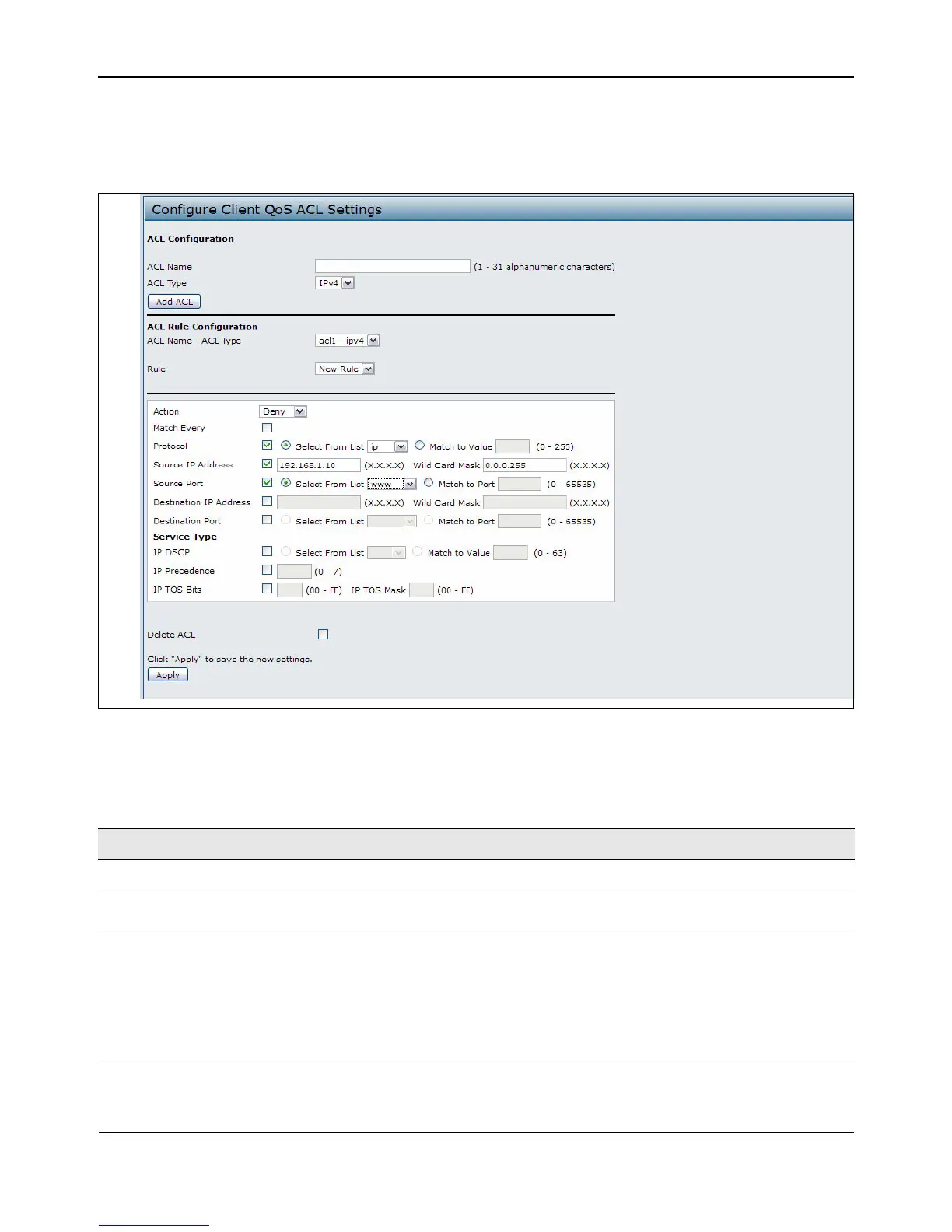

Figure41:ClientQoSACL
Thefollowing
tabledescribesthefieldsavailableontheClientQoSACLpage.
Table53:ACLConfiguration
Field Description
ACLConfiguration
ACLName EnteranametoidentifytheACL.Thenamecancontainfrom1–31alphanumeric
characters.Spacesarenotallowed.
ACLType SelectthetypeofACLtoconfigure:
•IPv4
•IPv6
•MAC
IPv4andIPv6ACLscontrolaccesstonetworkresourcesbasedonLayer3andLayer
4criteria.MAC
ACLscontrolaccessbasedonLayer2criteria.

D-Link DWL-3600AP Specifications

General

Frequency band	2.4 GHz
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	300 Mbit/s
Quality of Service (QoS) support	Yes
Data transfer rate	1 Gbit/s
Wireless technology	802.11 b/g/n
Antennas quantity	2
Antenna gain level (max)	4.7 dBi
Internal	No
Certification	FCC, CE
LED indicators	LAN, Power, WLAN
Interface	RJ-45
WAN connection	Ethernet (RJ-45)
Security algorithms	128-bit WEP, 64-bit WEP, SSID, WPA, WPA2
Storage temperature (T-T)	-20 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Power supply	8 W
Input current	2.5 A
AC input voltage	5 V

Weight and Dimensions

Weight	635 g
Dimensions (WxDxH)	203 x 203 x 48 mm
