ConfiguringaVAP
D-Link UnifiedAccessPointAdministrator’sGuide
November2011 Page165
UnifiedAccessPointAdministrator’sGuide

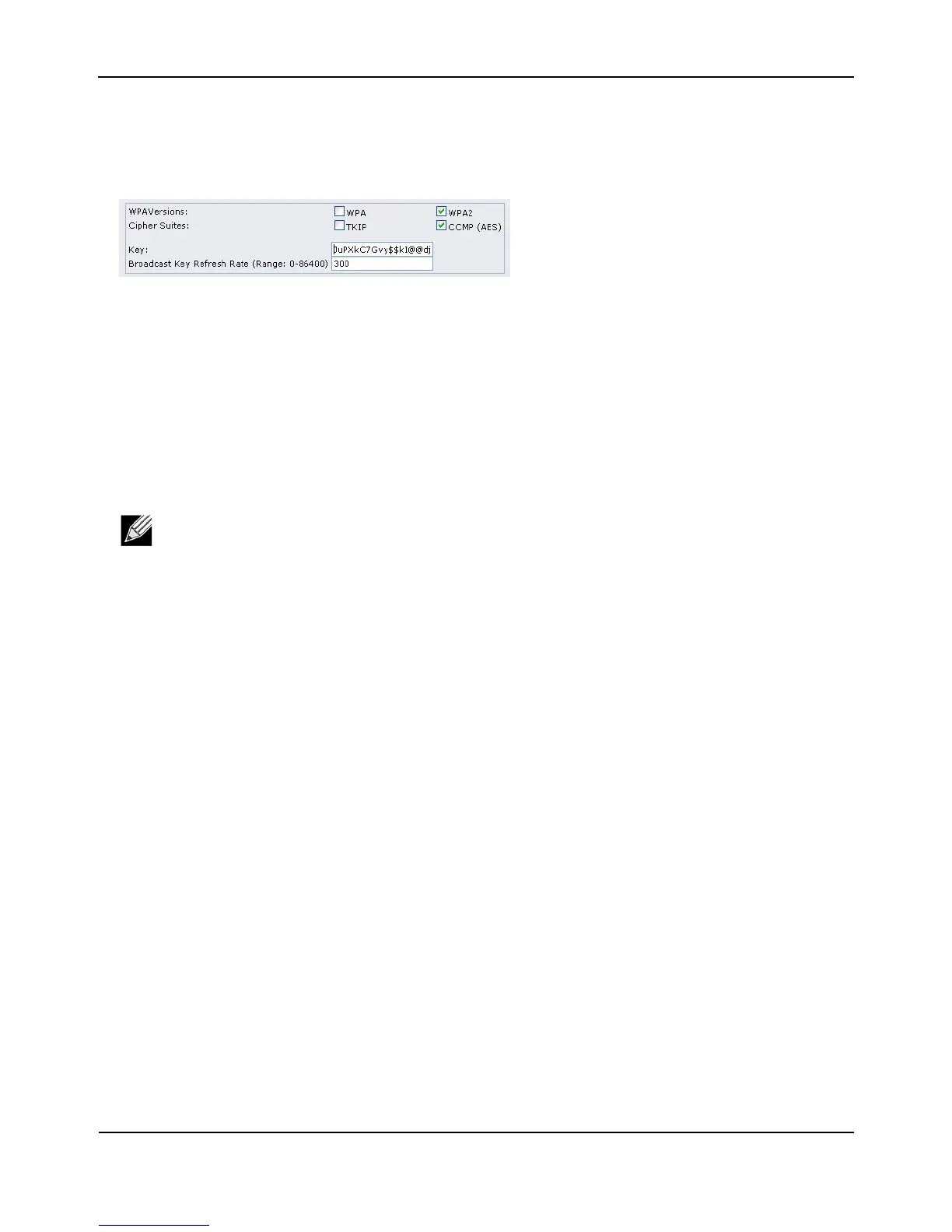

7. EnteraWPAencryptionkeyintheKeyfield.
Thekeycanbeamixofalphanumericandspecialcharacters.Thekeyiscasesensitiveandcanbebetween
8and63characters.
8. ClickApplytoupdatetheAPwiththenewsettings.
VAPConfigurationfromtheCLI
1. ConnecttotheAPbyusingTelnet,SSHoraserialconnection.
2. EnableVAP1.
setvapvap1statusup
3. SettheVLANIDto2.
setvapvap1vlan‐id2
4. SettheSSIDtoMarketing.
setinterfacewlan0vap1ssidMarketing
5. SettheSecurityModetoWPAPersonal.
setinterfacewlan0vap1securitywpa‐personal
6. AllowWPA2clients,andnotWPAclients,toconnecttotheAP.
setbsswlan0bssvap1wpa‐allowedoff
setbsswlan0bssvap1wpa2‐allowedon
7. SettheCipherSuitetoCCMP(AES)only.
setbsswlan0bssvap1wpa‐cipher‐tkipoff
setbsswlan0bssvap1wpa‐cipher‐ccmpon
8. SetthePre‐sharedkey.
setinterfacewlan0vap1wpa‐personal‐keyJuPXkC7GvY$moQiUttp2
Ifthesharedsecretkeysincludesspaces,placethekeyinsidequotationmarks.
9. Usethefollowingcommandstoviewandverifythesettings.
getinterfacewlan0vap1detail
getvapvap1detail
Note:ThepreviouscommandsetstheVLANIDto2forVAP1onbothradios.TosettheVLANID
forVAP1onradiooneonly,usethefollowingcommand:
set vap 1 with radio wlan0 to
vlan-id 2
.

D-Link DWL-3600AP Specifications

General

Frequency band	2.4 GHz
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	300 Mbit/s
Quality of Service (QoS) support	Yes
Data transfer rate	1 Gbit/s
Wireless technology	802.11 b/g/n
Antennas quantity	2
Antenna gain level (max)	4.7 dBi
Internal	No
Certification	FCC, CE
LED indicators	LAN, Power, WLAN
Interface	RJ-45
WAN connection	Ethernet (RJ-45)
Security algorithms	128-bit WEP, 64-bit WEP, SSID, WPA, WPA2
Storage temperature (T-T)	-20 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Power supply	8 W
Input current	2.5 A
AC input voltage	5 V

Weight and Dimensions

Weight	635 g
Dimensions (WxDxH)	203 x 203 x 48 mm
