D-Link DWL-3600AP User Manual

ConfiguringClientQoS
D-Link UnifiedAccessPointAdministrator’sGuide
November2011 Page179
UnifiedAccessPointAdministrator’sGuide

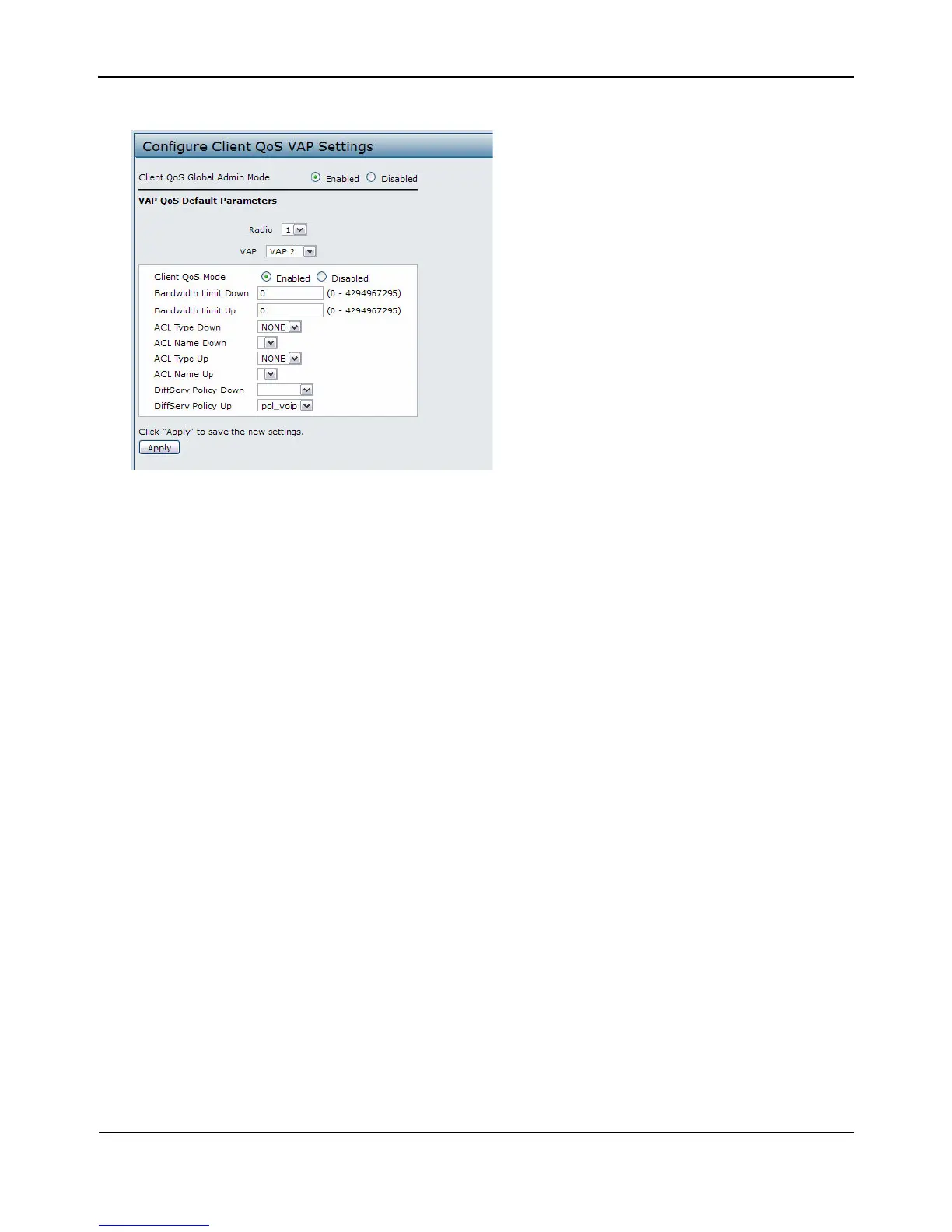

17. ClickApplytoupdatetheAPwiththeQoSsettings.
ConfiguringQoSbyUsingtheCLI
ACLConfiguration
1. ConnecttotheAP.
2. Creat eanACLnamedacl1.
addaclacl1acl‐typeipv4
3. Addaruletoacl1thatallowsHTTPtrafficfromthe192.168.1.0subnet.
addruleacl‐nameacl2acl‐typeipv4actionpermitprotocolipsrc‐ip192.168.1.0src‐ip‐mask
0.0.0.255src‐porthttp
4. Addanotherruletoacl1thatallowsalltrafficfromthehostwithanIPaddressof192.168.1.23.
addruleacl‐nameacl2acl‐typeipv4actionpermitprotocolipsrc‐ip192.168.1.23src‐ip‐mask
0.0.0.0
5. EnableClientQoSontheAP.
setclient‐qosmodeup
6. EnableClientQoSonVAP2
setvapwlan0vap2qos‐modeup
7. Applyacl1toVAP2intheinbounddirection(fromtheclienttotheAP).
setvapwlan0vap2def‐acl‐upacl1
DiffServConfiguration
1. LogontotheAPCLI.
2. Creat eaclassmapnamedclass_voipandconfigureittomatchallUDPpacketsfr omthe192.168.1.0
networkthathaveadestinationIPaddressof192.168.2.200(theVoIPserver).

D-Link DWL-3600AP Specifications

General

Frequency band	2.4 GHz
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	300 Mbit/s
Quality of Service (QoS) support	Yes
Data transfer rate	1 Gbit/s
Wireless technology	802.11 b/g/n
Antennas quantity	2
Antenna gain level (max)	4.7 dBi
Internal	No
Certification	FCC, CE
LED indicators	LAN, Power, WLAN
Interface	RJ-45
WAN connection	Ethernet (RJ-45)
Security algorithms	128-bit WEP, 64-bit WEP, SSID, WPA, WPA2
Storage temperature (T-T)	-20 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Power supply	8 W
Input current	2.5 A
AC input voltage	5 V

Weight and Dimensions

Weight	635 g
Dimensions (WxDxH)	203 x 203 x 48 mm
