ConfiguringClientQoS
D-Link UnifiedAccessPointAdministrator’sGuide
November2011 Page178
UnifiedAccessPointAdministrator’sGuide

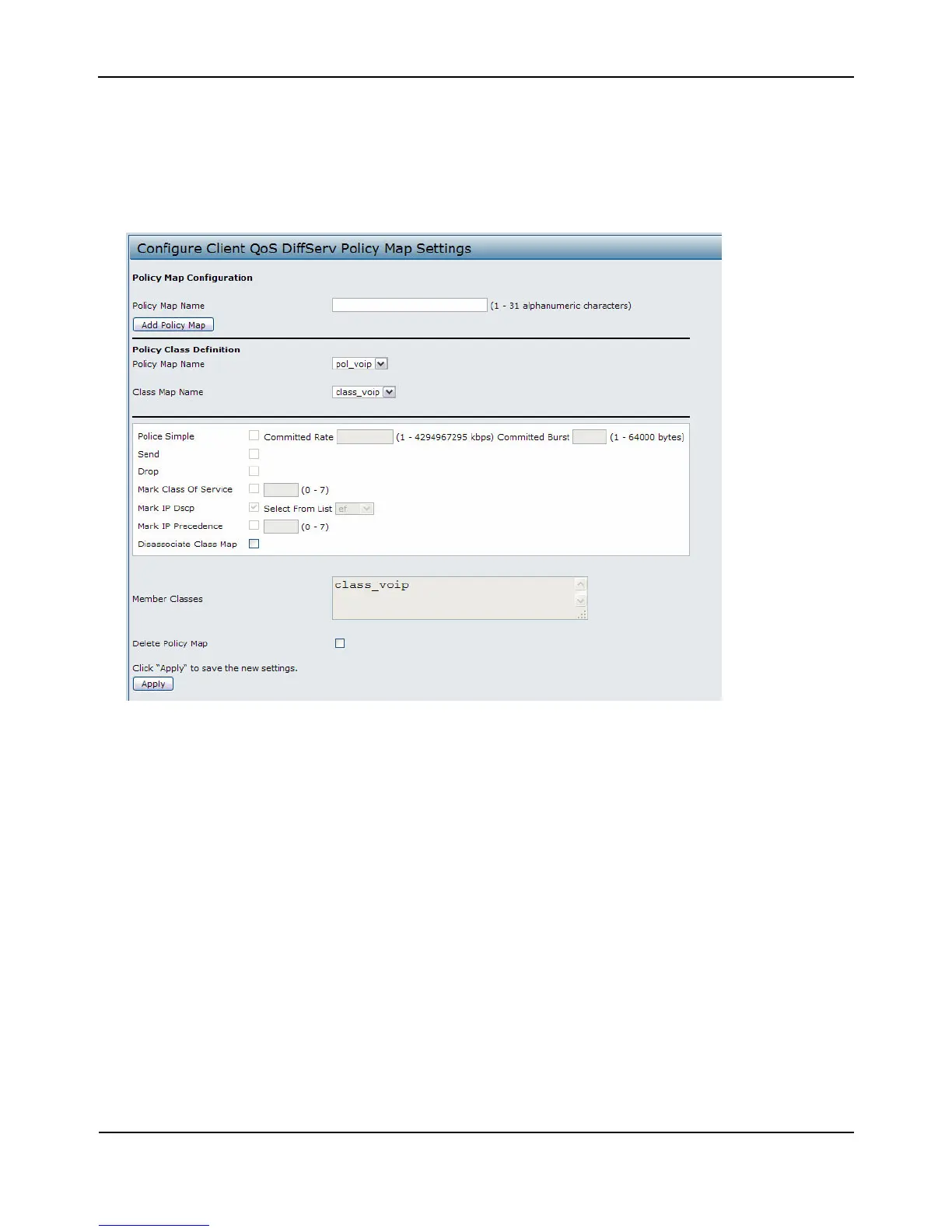

10. Fortheclass_voipclassmap,selecttheIPDSCPoption,andthenselecteffromtheSelectFromListmenu.
11. Trafficthatmeetsthecriteriadefinedintheclass_voipclassismarkedwithaDSCPvalueofEF(expedited
forwarding).
12. ClickApplytosavethepolicy.
13. NavigatetotheClient
QoS>VAPQoSParameterspage.
14. SelectVAP2fromtheVAPmenu.
15. MakesurethattheClientQoSGlobalAdminModeandtheQoSModearebothenabled.
16. FromtheDiffServPolicyUpmenu,selectpol_voip.
