ConfiguringClientQoS
D-Link UnifiedAccessPointAdministrator’sGuide
November2011 Page180
UnifiedAccessPointAdministrator’sGuide
addclass‐mapclass_voipeveryyesprotocoludpsrc‐ip192.168.1.0src‐ip‐mask255.255.255.0dst‐
ip192.168.2.200dst‐ip‐mask255.255.255.255
3. Addapolicymapnamedpol_voip.
addpolicy‐mappol_voip
4. Definethepol_voippolicymapbyaddingtheclass_voipclassmapandspecifyingthatpack etsthatmatch
theclass_voipcriteriawillbemarkedwithaDSCPvalueofEF(expeditedforwarding).
addpolicy‐attrpolicy‐map‐namepol_voipclass‐map‐nameclass_voipmark‐ip‐dscpef
5. EnableClientQoSontheAP.
setclient‐qosmodeup
6. EnableClientQoSonVAP2
setvapwlan0vap2qos‐modeup
7. Applypol_voiptoVAP2intheinbounddirection(fromtheclienttotheAP).
setvapwlan0vap2def‐policy‐uppol_voip
ConfiguringQoSbyUsingSNMP
ACLConfiguration
1. LoadtheDLINK‐WLAN‐ACCESS‐POINT‐MIBmodule.
2. FromtheMIBtree,navigatetotheobjectsintheapQos>apAclTable.
3. UsetheapQosAclStatusobjecttocreatearowentrywithapQosAclNameandapQosAclType astheindexes
forapQosAclEntry.
ThenewapQosAclEntryvalueincludestheapQosAclType(1)followedbythenumber
ofcharactersinthe

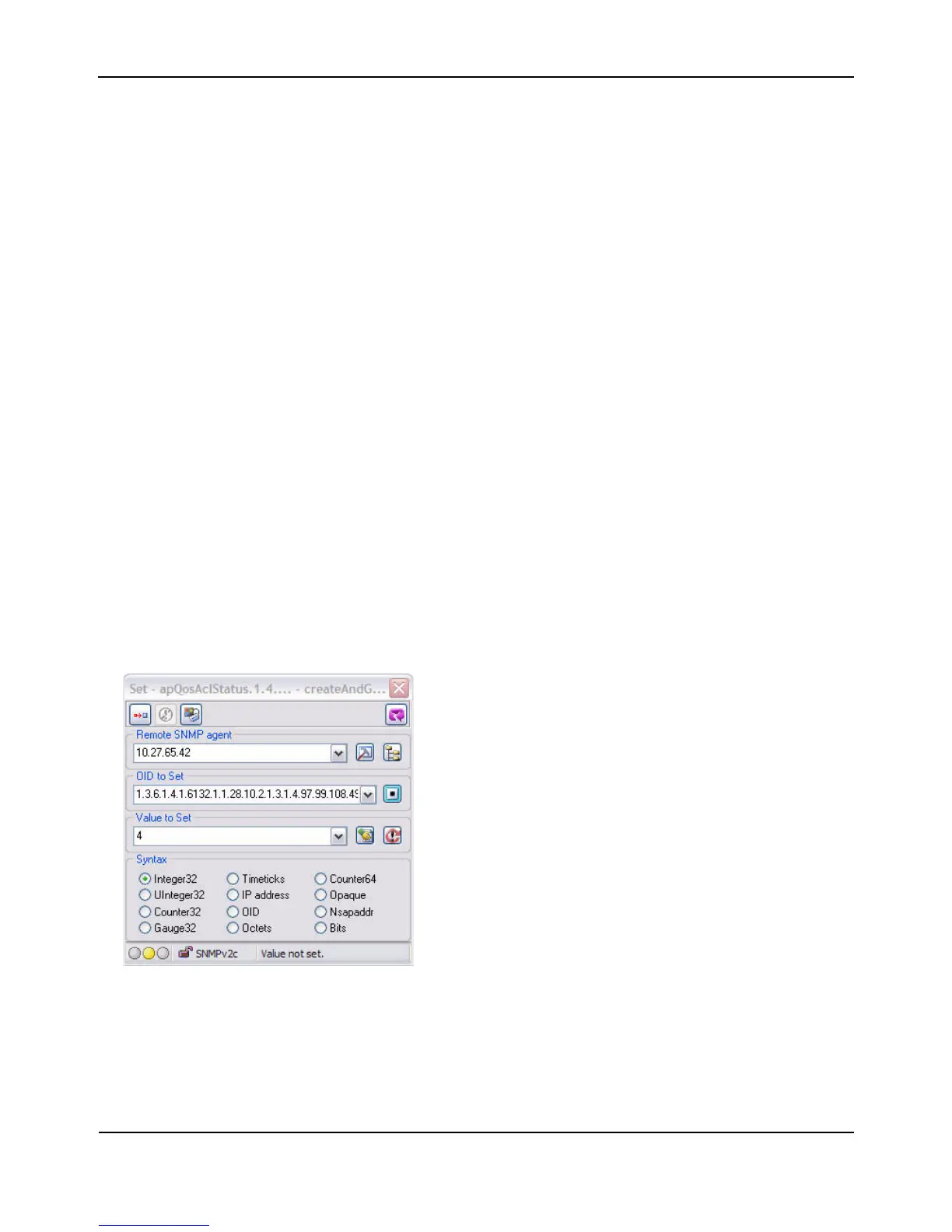

name(4),andthentheASCIIcodeforthename.Inthisexample,acl1is97.99.108.49.Thevaluetosetis4,
whichisCreateandGo.
4. Addaruletoacl1thatallowsHTTPtrafficfromthe192.168.1.0subnet.
•Use1.3.6.1.4.1.6132.1.1.28.10.3.1.14.1.4.97.99.108.49.1tosettheapQosAclRuleStatus
ofRule1to
active(1)
IntheOID,the14(bold)isthesequenceidentifierfortheapQosAclRuleStatussobject,1istheACLtype,
4.97.99.108.49istheACLname(thenumberofcharactersfollowedbytheASCIIcode),andthefinal1

D-Link DWL-3600AP Specifications

General

Frequency band	2.4 GHz
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	300 Mbit/s
Quality of Service (QoS) support	Yes
Data transfer rate	1 Gbit/s
Wireless technology	802.11 b/g/n
Antennas quantity	2
Antenna gain level (max)	4.7 dBi
Internal	No
Certification	FCC, CE
LED indicators	LAN, Power, WLAN
Interface	RJ-45
WAN connection	Ethernet (RJ-45)
Security algorithms	128-bit WEP, 64-bit WEP, SSID, WPA, WPA2
Storage temperature (T-T)	-20 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Power supply	8 W
Input current	2.5 A
AC input voltage	5 V

Weight and Dimensions

Weight	635 g
Dimensions (WxDxH)	203 x 203 x 48 mm
