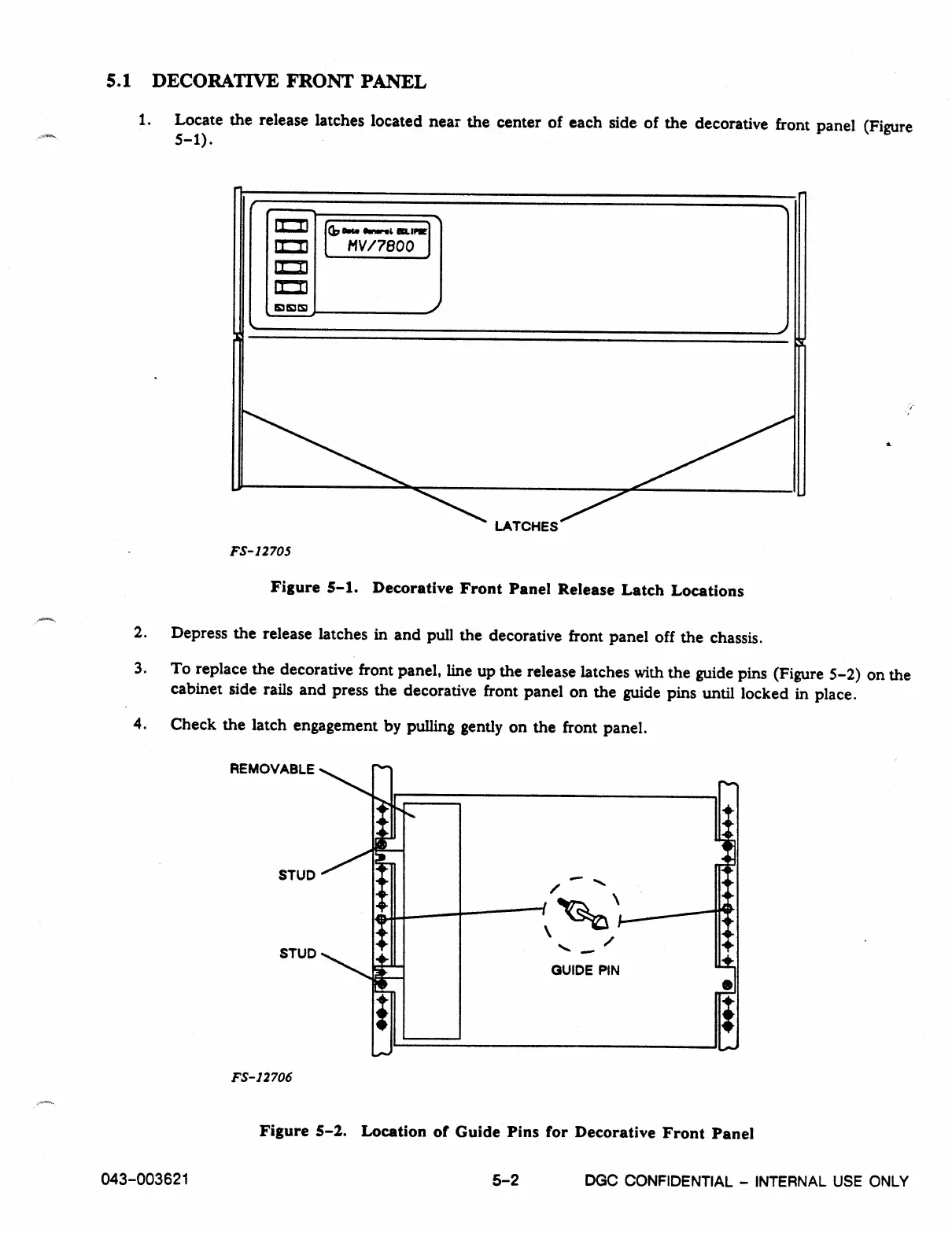

5.1 DECORATIVE FRONT PANEL
1. Locate the release latches located near the center of each side of the decorative front panel (Figure
5-1).
,
.  .
N
11111 .
111
ci,
Dote Donoret MX WIE
NV/7800
NNW
moo
HMI
MO19
.
"--
1
LATCHES
FS-12705
Figure 5-1. Decorative Front Panel Release Latch Locations
2.
Depress the release latches in and pull the decorative front panel off the chassis.
3.
To replace the decorative front panel, line up the release latches with the guide pins (Figure 5-2) on the
cabinet side rails and press the decorative front panel on the guide pins until locked in place.
4.
Check the latch engagement by pulling gently on the front panel.
REMOVABLE
STUD
STUD
FS-12706
Figure 5-2. Location of Guide Pins for Decorative Front Panel
043-003621

5-2

