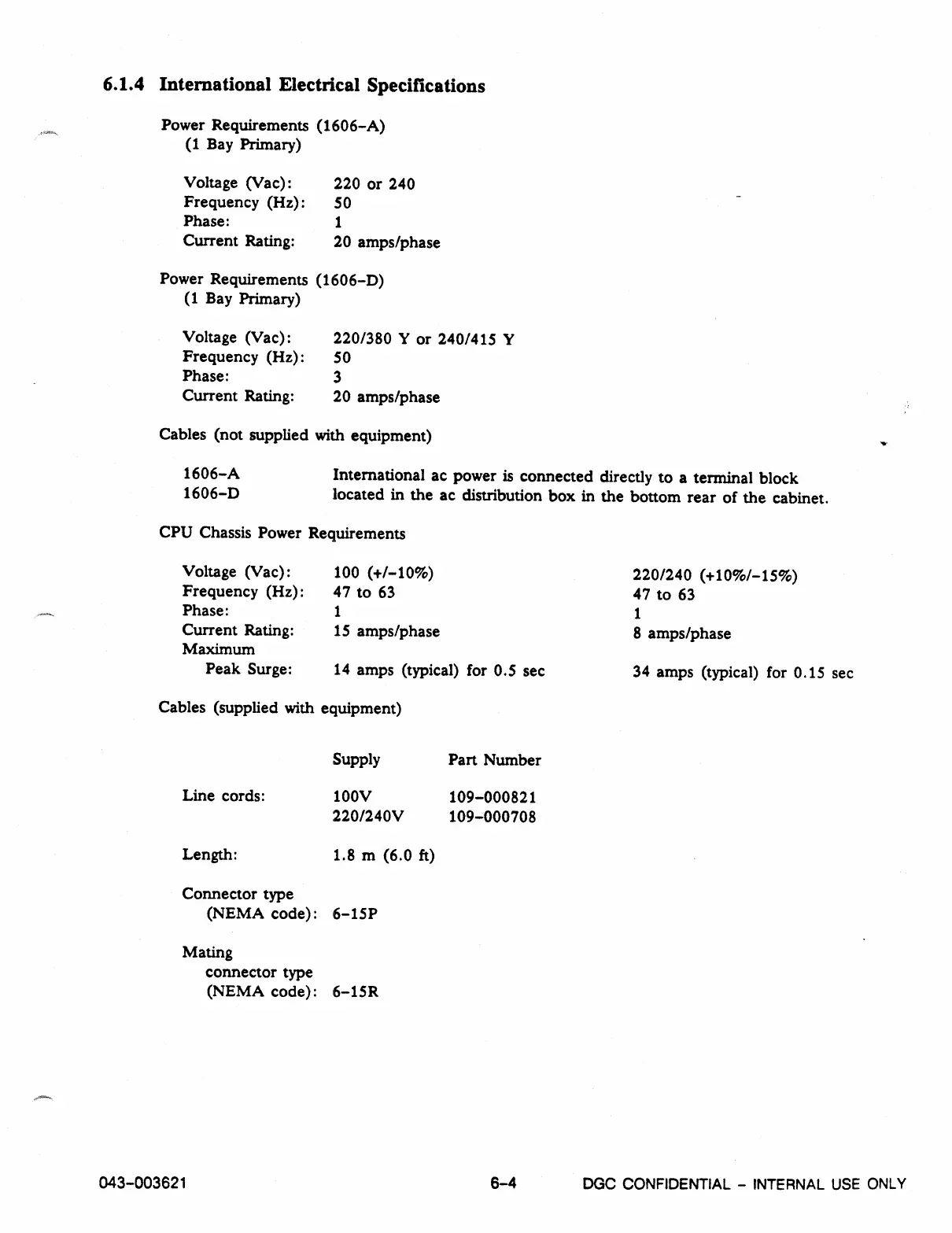

6.1.4 International Electrical Specifications
Power Requirements (1606-A)
(1 Bay Primary)
Voltage (Vac):
220 or 240
Frequency (Hz):
50
Phase:
1
Current Rating:
20 amps/phase
Power Requirements (1606-D)
(1 Bay Primary)
Voltage (Vac):
220/380 Y or 240/415 Y
Frequency (Hz):
50
Phase:
3
Current Rating:
20 amps/phase
Cables (not supplied with equipment)
1606-A
International ac power is connected directly to a terminal block
1606-D
located in the ac distribution box in the bottom rear of the cabinet.
CPU Chassis Power Requirements
Voltage (Vac):
100 (+1-10%)
Frequency (Hz):
47 to 63
Phase:
1
Current Rating:
15 amps/phase
Maximum
Peak Surge:
14 amps (typical) for 0.5 sec
Cables (supplied with equipment)
220/240 (+10%/-15%)
47 to 63
1
8 amps/phase
34 amps (typical) for 0.15 sec
Supply
Part Number
Line cords:
100V
109-000821
220/240V
109-000708
Length:
1.8 m (6.0 ft)
Connector type
(NEMA code):
6-15P
Mating
connector type
(NEMA code):
6-15R
043-003621
6-4
