Data General Service ECLIPSE MV/7800 - Installation of the Front of the Rack

133.35

146.1
(5.25)

(5.75)
DIMENSIONS
IN MM (IN)
LEFT

RIGHT
FRONT

FRONT
RAIL

RAIL
FS-12733

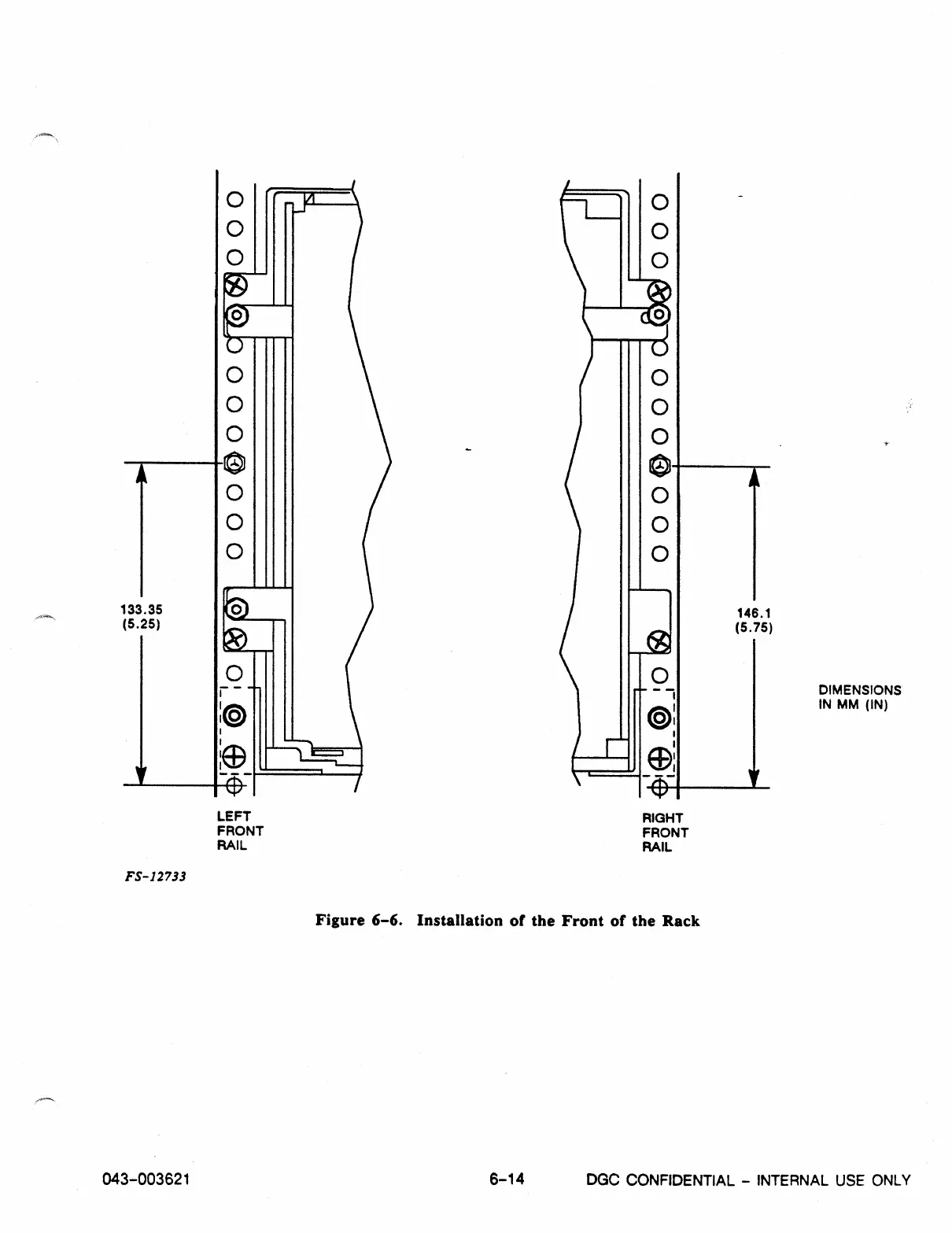

Figure 6-6. Installation of the Front of the Rack
043-003621
 6-14 
DGC CONFIDENTIAL - INTERNAL USE
ONLY
