LOOPBACK PLUG
PLUG (FAR SIDE)
LINE CORD
FS-12737

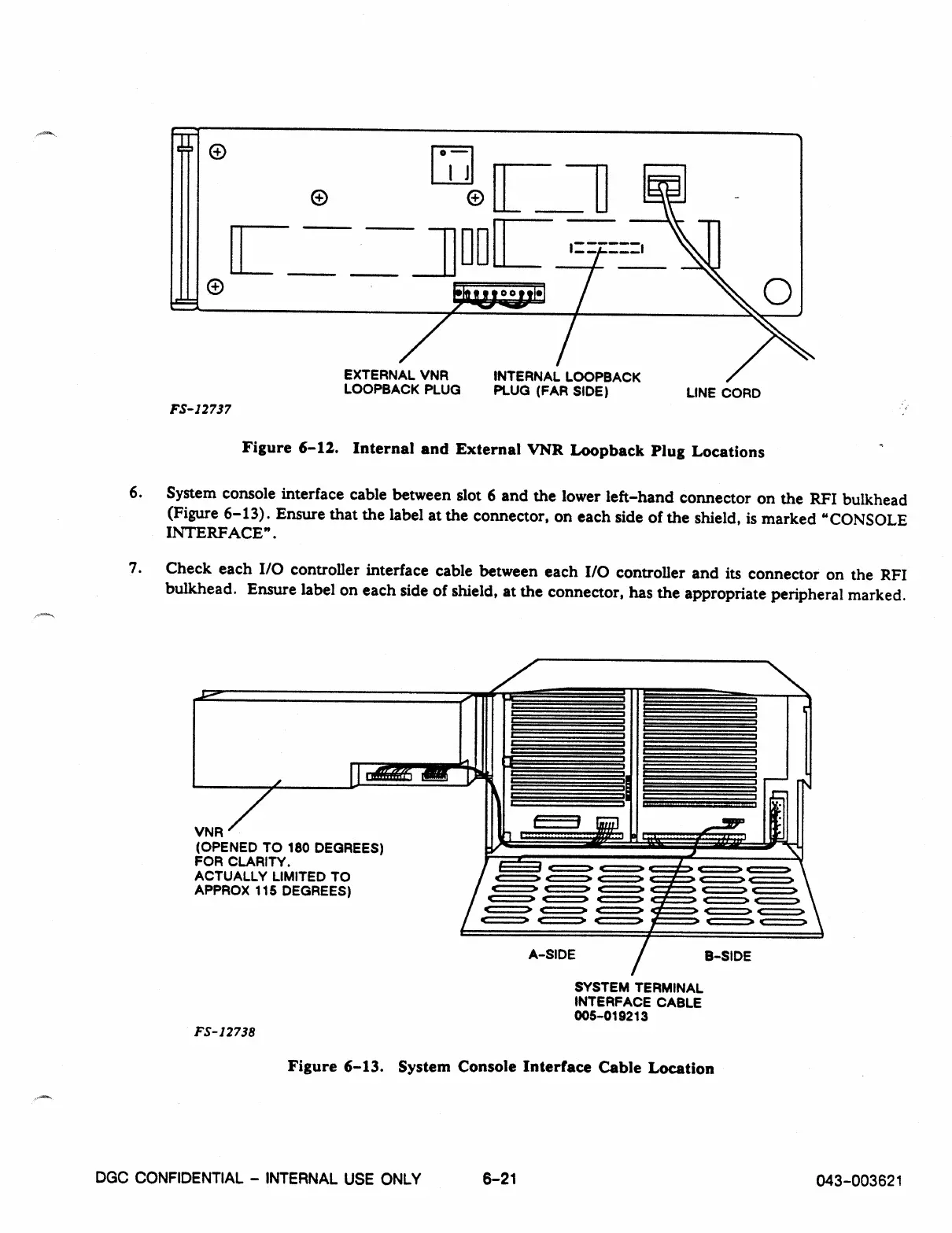

Figure 6-12. Internal and External VNR Loopback Plug Locations
6.
System console interface cable between slot 6 and the lower left-hand connector on the RFI bulkhead
(Figure 6-13). Ensure that the label at the connector, on each side of the shield, is marked "CONSOLE
INTERFACE".
7.
Check each I/O controller interface cable between each I/O controller and its connector on the RFI
bulkhead. Ensure label on each side of shield, at the connector, has the appropriate peripheral marked.
VNR
(OPENED TO 180 DEGREES)
FOR CLARITY.
ACTUALLY LIMITED TO
APPROX 115 DEGREES)
FS-12738
1===,
C==>
s
c===>
0
=DP 4 >
ot
ac
A-SIDE
B-SIDE
SYSTEM TERMINAL
INTERFACE CABLE
005-019213
Figure 6-13. System Console Interface Cable Location
DGC CONFIDENTIAL - INTERNAL USE ONLY
6-21
043-003621
