Data General Service ECLIPSE MV/7800 - Modem Connections

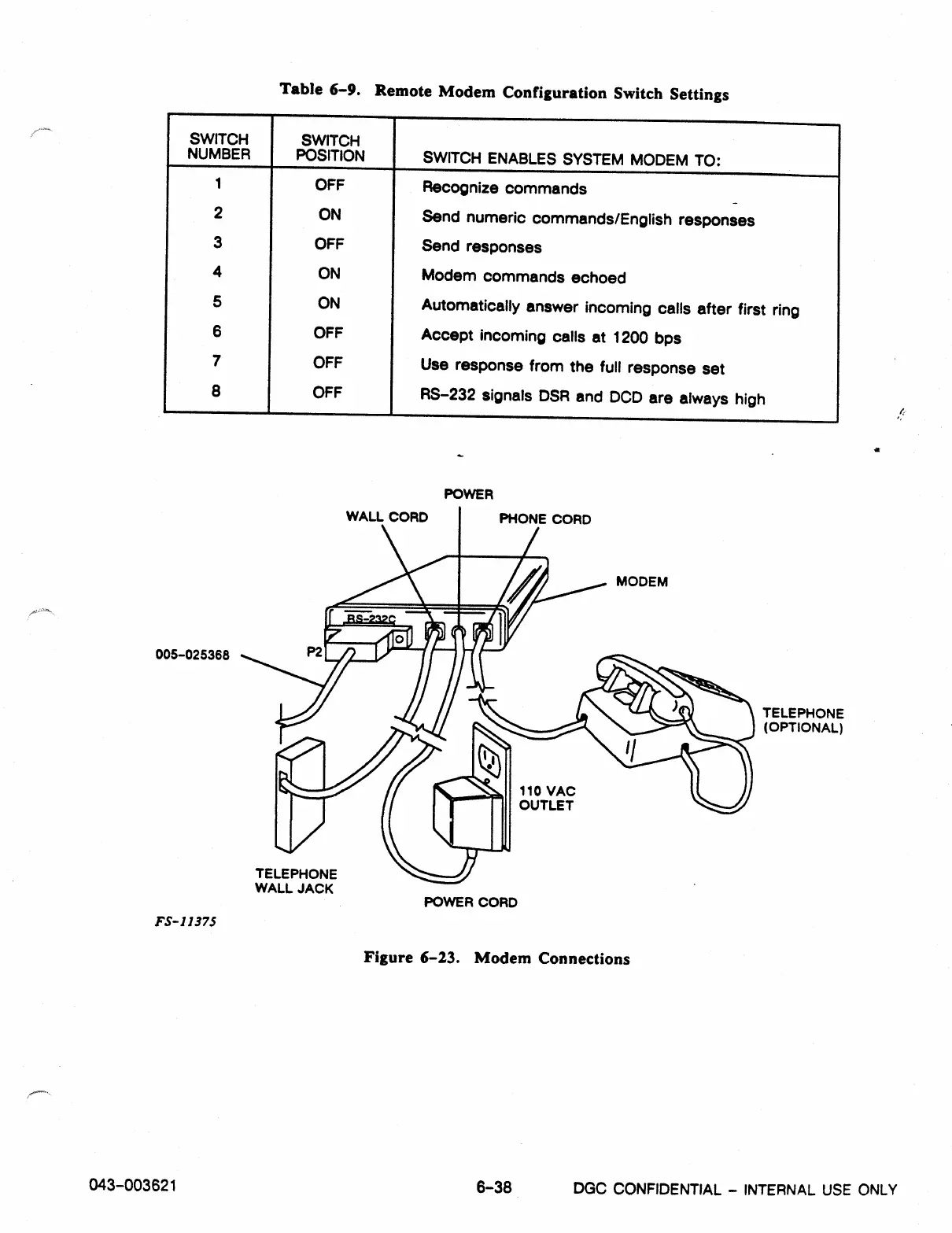

Table 6-9. Remote Modem Configuration Switch Settings
SWITCH
NUMBER
SWITCH
POSITION
SWITCH ENABLES SYSTEM MODEM TO:
1
OFF
Recognize commands
_
2
ON
Send numeric commands/English responses
3
OFF
Send responses
4
ON
Modem commands echoed
5
ON
Automatically answer incoming calls after first ring
6
OFF
Accept incoming calls at 1200 bps
7
OFF
Use response from the full response set
8
OFF
RS-232 signals DSR and DCD are always high
POWER
WALL CORD I

PHONE CORD
MODEM
005-025368

P2
FS-11375
110 VAC
OUTLET
TELEPHONE
(OPTIONAL)
Figure 6-23. Modem Connections
043-003621

6-38 
