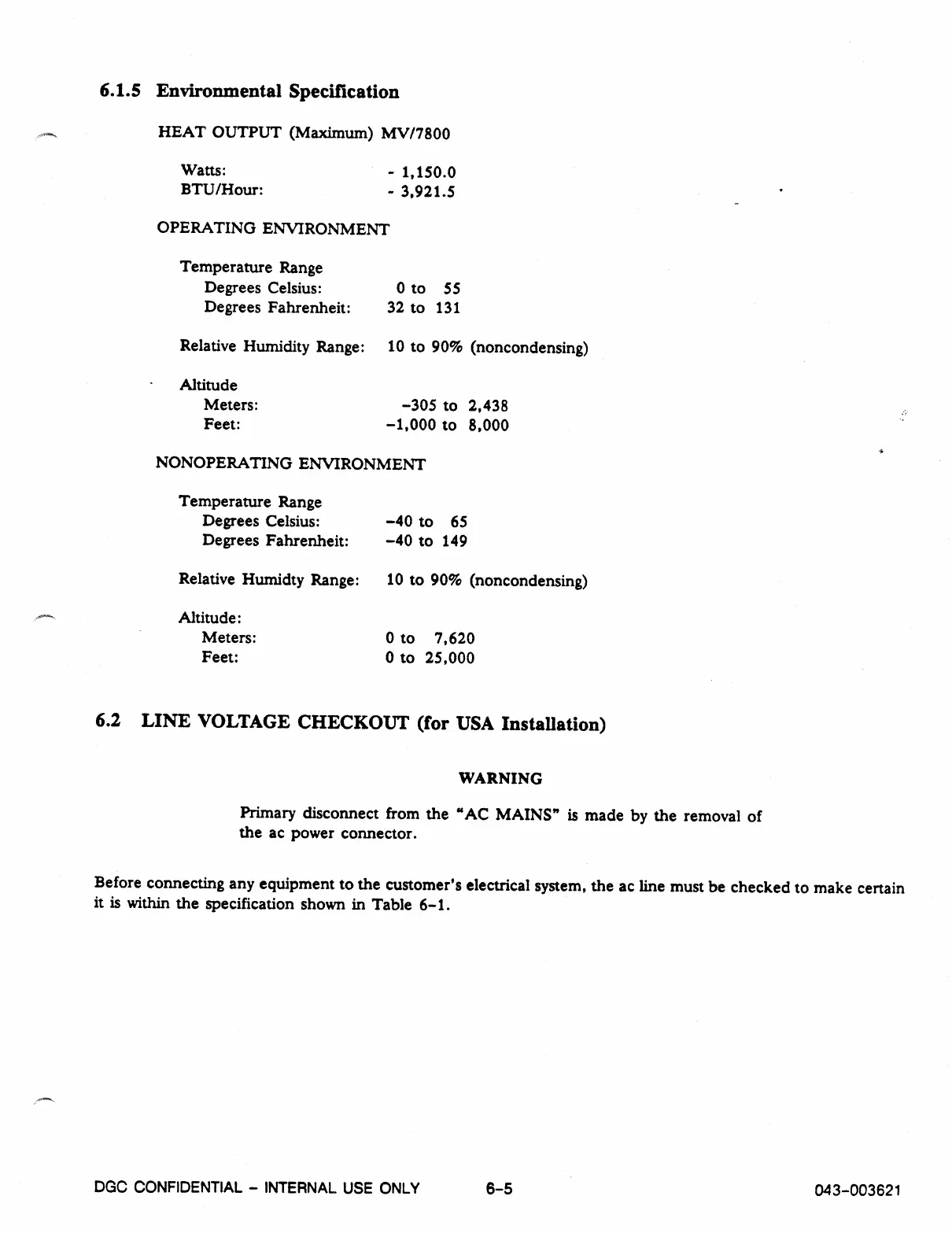

6.1.5 Environmental Specification
HEAT OUTPUT (Maximum) MV/7800
Watts:
- 1,150.0
BTU/Hour:
- 3,921.5
•
OPERATING ENVIRONMENT
Temperature Range
Degrees Celsius:
0 to
55
Degrees Fahrenheit:
32 to 131
Relative Humidity Range:
10 to 90% (noncondensing)
-
Altitude
Meters:
-305 to 2,438
Feet:
-1,000 to 8,000
NONOPERATING ENVIRONMENT
Temperature Range
Degrees Celsius:
-40 to
65
Degrees Fahrenheit:
-40 to 149
Relative Humidty Range:
10 to 90% (noncondensing)
Altitude:
Meters:
0 to
7,620
Feet:
0 to 25,000
6.2 LINE VOLTAGE CHECKOUT (for USA Installation)
WARNING
Primary disconnect from the "AC MAINS" is made by the removal of
the ac power connector.
Before connecting any equipment to the customer's electrical system, the ac line must be checked to make certain
it is within the specification shown in Table 6-1.
DGC CONFIDENTIAL - INTERNAL USE ONLY
6-5
043-003621
