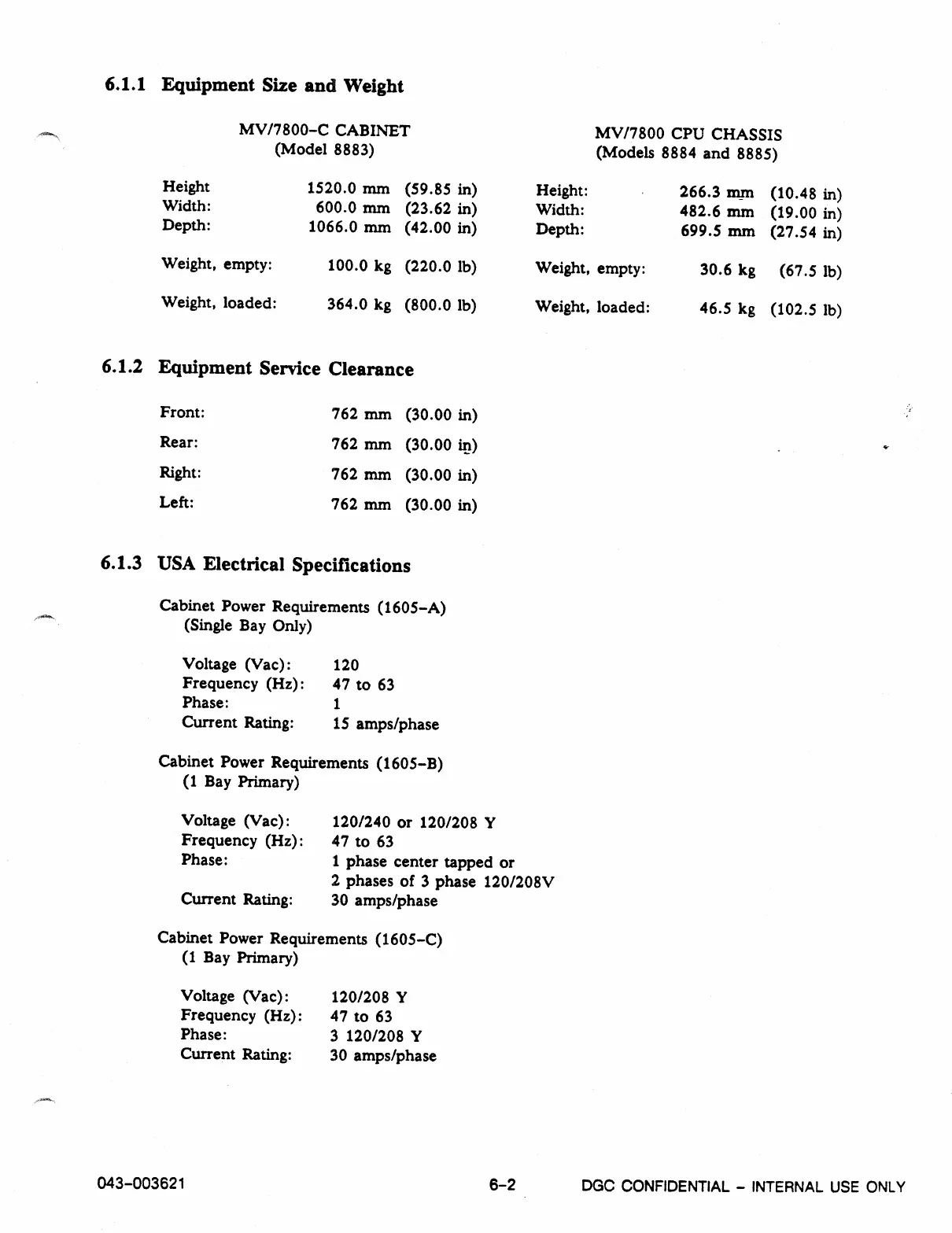

Data General Service ECLIPSE MV/7800 - Equipment Size and Weight; Equipment Service Clearance; USA Electrical Specifications

6.1.1 Equipment Size and Weight
MV/7800-C CABINET
(Model 8883)
MV/7800 CPU CHASSIS
(Models 8884 and 8885)
Height
1520.0 mm
(59.85 in)
Height:
266.3 mm
(10.48 in)
Width:
600.0 mm
(23.62 in)
Width:
482.6 mm
(19.00 in)
Depth:
1066.0 mm
(42.00 in)
Depth:
699.5 mm
(27.54 in)
Weight, empty:
100.0 kg
(220.0 lb)
Weight, empty:
30.6 kg
(67.5 lb)
Weight, loaded:
364.0 kg
(800.0 lb)
Weight, loaded:
46.5 kg
(102.5 lb)
6.1.2 Equipment Service Clearance
Front:
762 mm
(30.00 in)
Rear:
762 mm
(30.00 in)
Right:
762 mm
(30.00 in)
Left:
762 mm
(30.00 in)
6.1.3 USA Electrical Specifications
Cabinet Power Requirements (1605-A)
(Single Bay Only)
Voltage (Vac):

120
Frequency (Hz):

47 to 63
Phase: 
1
Current Rating:

15 amps/phase
Cabinet Power Requirements (1605-B)
(1 Bay Primary)
Voltage (Vac):

120/240 or 120/208 Y
Frequency (Hz):

47 to 63
Phase:

1 phase center tapped or
2 phases of 3 phase 120/208V
Current Rating:

30 amps/phase
Cabinet Power Requirements (1605-C)
(1 Bay Primary)
Voltage (Vac):

120/208 Y
Frequency (Hz):

47 to 63
Phase: 
3 120/208 Y
Current Rating:

30 amps/phase
