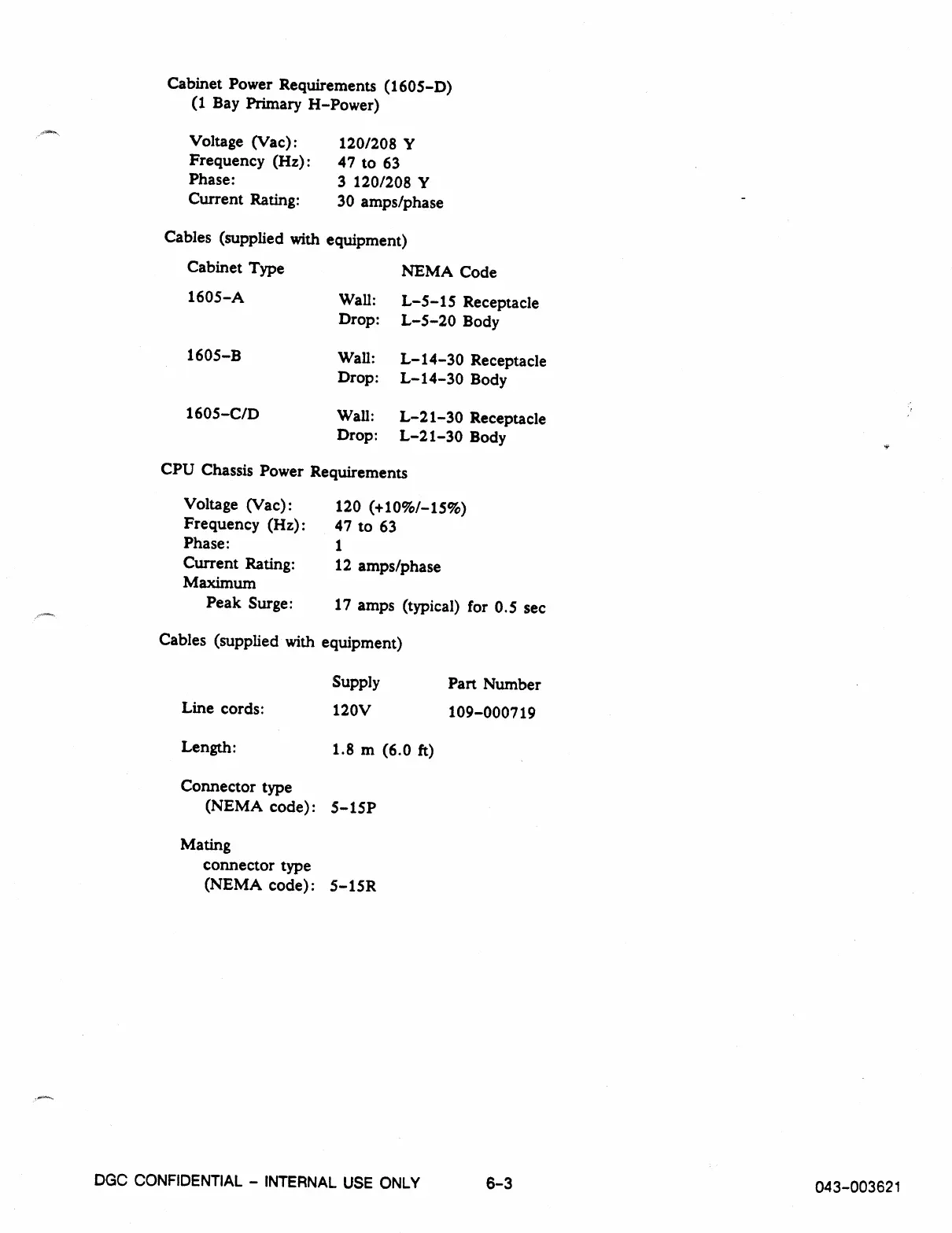

Cabinet Power Requirements (1605-D)
(1 Bay Primary H-Power)
Voltage (Vac):
120/208 Y
Frequency (Hz):
47 to 63
Phase:
3 120/208 Y
Current Rating:
30 amps/phase
Cables (supplied with equipment)
Cabinet Type
NEMA Code
1605-A
Wall:
L-5-15 Receptacle
Drop:
L-5-20 Body
1605-B
Wall:
L-14-30 Receptacle
Drop:
L-14-30 Body
1605-C/D
Wall:
L-21-30 Receptacle
Drop:
L-21-30 Body
CPU Chassis Power Requirements
Voltage (Vac):
120 (+10%/-15%)
Frequency (Hz):
47 to 63
Phase:
1
Current Rating:
12 amps/phase
Maximum
Peak Surge:
17 amps (typical) for 0.5 sec
Cables (supplied with equipment)
Supply
Part Number
Line cords:
120V
109-000719
Length:
1.8 m (6.0 ft)
Connector type
(NEMA code): 5-15P
Mating
connector type
(NEMA code): 5-15R
