Data General Service ECLIPSE MV/7800 - PCB Removal

BUS BARS SAFETY SHIELD
(TWO BOLTS ARE
UNDER THE SHIELD)
FS-12719
J 2 AND P4 CAPTIVE SCREW

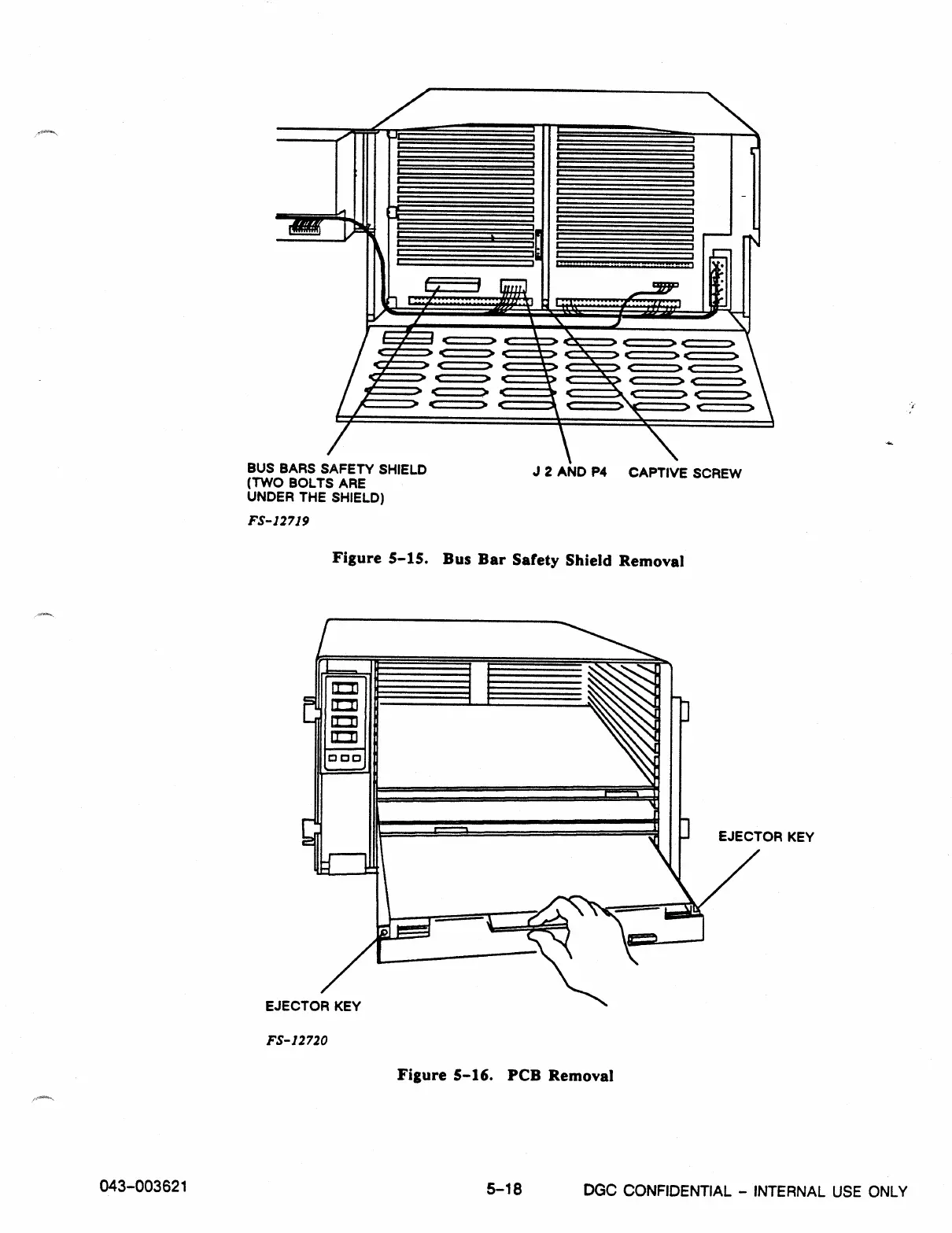

Figure 5-15. Bus Bar Safety Shield Removal
OR KEY
FS- 12720
Figure 5-16. PCB Removal
043-003621

5-18 
DGC CONFIDENTIAL - INTERNAL USE ONLY
