Data General Service ECLIPSE MV/7800 - System Console Interface Cable 005-019213 Location; System Terminal Interface MV;7800 COMSWITCH-II Cable 005-025369 Location

J17
VNR
(OPENED TO 180 DEGREES
FOR CLARITY.
ACTUALLY LIMITED TO
APPROX 115 DEGREES)
1====i
C===>
4===>
4
===>
C===>
0
C===s ,
<===>
4===>
:===•
C===0
C===)
1==>
C===• 1===>
4
C===o C==>
A-SIDE 
B-SIDE
SYSTEM TERMINAL
INTERFACE CABLE
005-019213
FS-12743

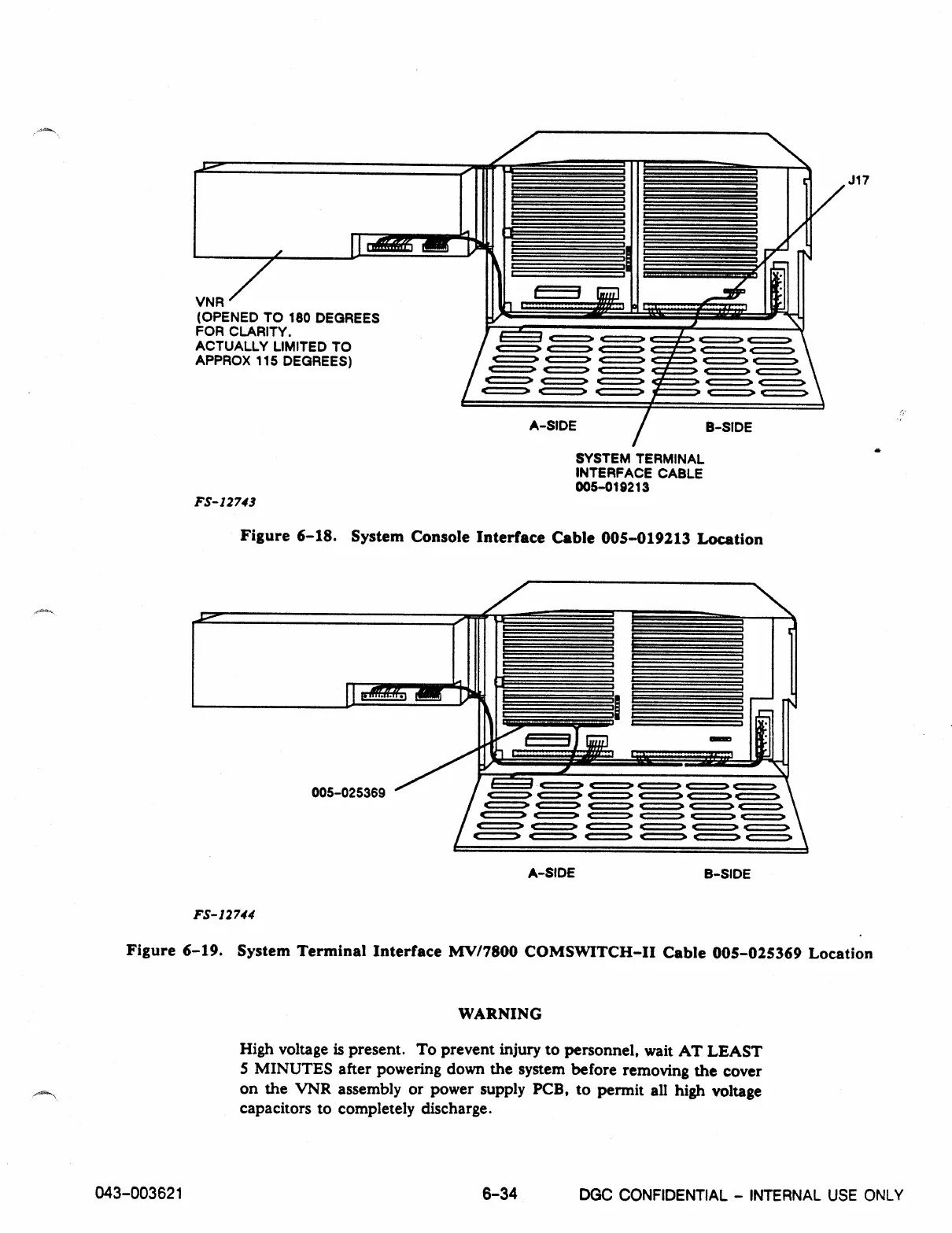

Figure 6-18. System Console Interface Cable 005-019213 Location
A-SIDE

B-SIDE
FS-12744
Figure 6-19. System Terminal Interface MV/7800 COMSWITCH-II Cable 005-025369 Location
WARNING
High voltage is present. To prevent injury to personnel, wait AT LEAST
5 MINUTES after powering down the system before removing the cover
on the VNR assembly or power supply PCB, to permit all high voltage
capacitors to completely discharge.
043-003621

6-34 
