PART NO.
DESCRIPTION
192-002201
192-002202
192-002203
192-002204
192-002205
192-002206
192-002207
Black mat
Straight cord, 2,743 m (9 feet)
Coil type cord, 3,048 m (10 feet)
Blue wrist band
_
Beige wrist band
Alligator clips (2)
Recloseable bag

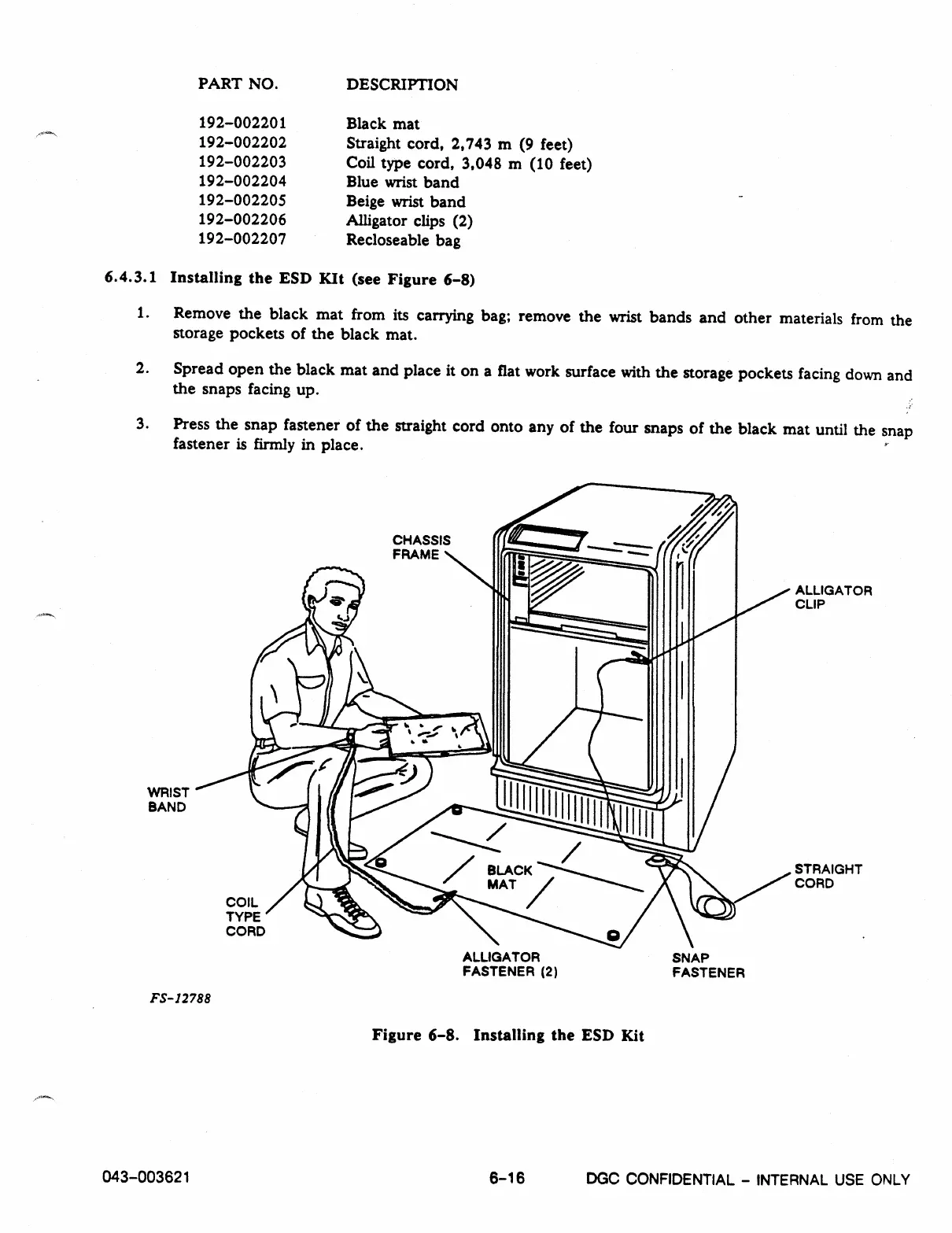

6.4.3.1 Installing the ESD Kit (see Figure 6-8)
1.
Remove the black mat from its carrying bag; remove the wrist bands and other materials from the
storage pockets of the black mat.
2.
Spread open the black mat and place it on a flat work surface with the storage pockets facing down and
the snaps facing up.
3.
Press the snap fastener of the straight cord onto any of the four snaps of the black mat until the snap
fastener is firmly in place.
WRIST
BAND
ALLIGATOR
CLIP
STRAIGHT
CORD
ALLIGATOR
SNAP
FASTENER (2)
FASTENER
FS-12788
Figure 6-8. Installing the ESD Kit
043-003621
6-16
