LEAVE NUT AND
BOLT LOOSE UNTIL
CHASSIS IS INSTALLED
LEFT BRACKE
SLIDE SUPPOI
002-007986
FS-12732

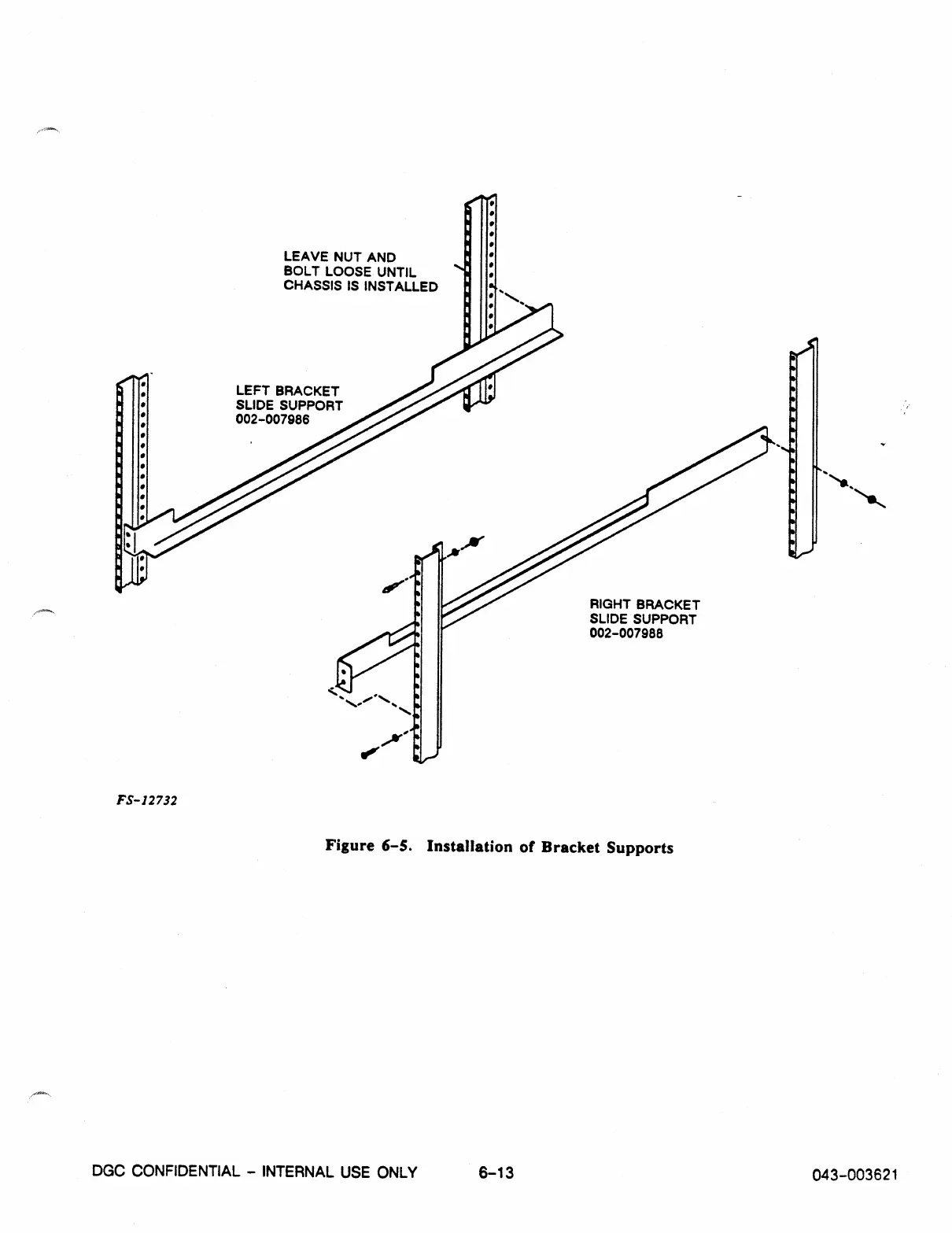

Figure 6-5. Installation of Bracket Supports
DGC CONFIDENTIAL - INTERNAL USE ONLY
6-13
043-003621
