Data General Service ECLIPSE MV/7800 - CPU Chassis Configuration

FAN
MODULE
-5 V BOOSTER, BUS REPEATER, OR I/O
-5 V BOOSTER OR I/O
I/O ONLY
I/O ONLY
I/O ONLY
I/O ONLY
I/O ONLY
I/O ONLY
I/O ONLY
I/O ONLY
I/O ONLY
I/O ONLY
1/0 ONLY
I/O ONLY
OPTIONAL EXPANSION MEMORY
CENTRAL PROCESSING UNIT
POWER SUPPLY
FS-12782

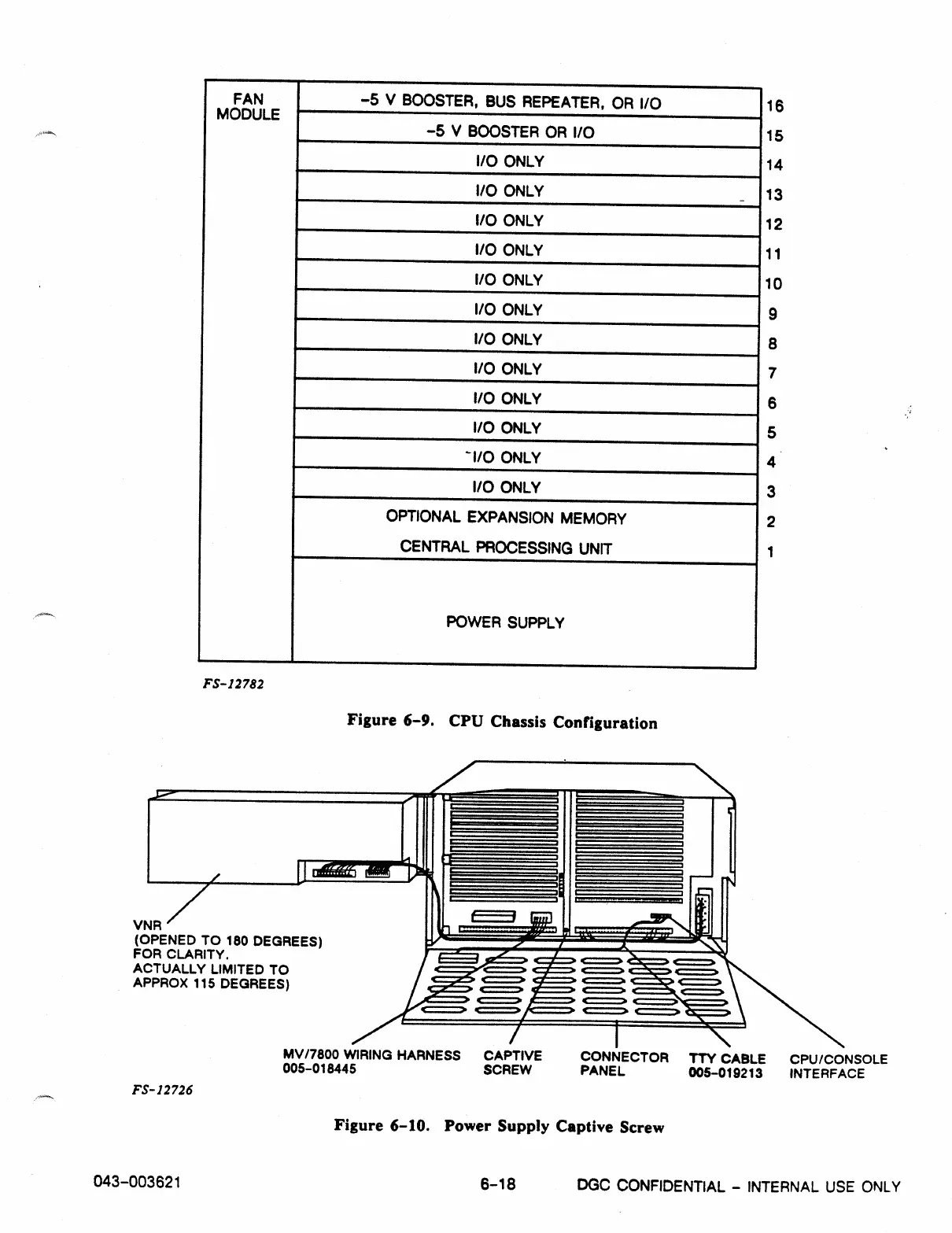

Figure 6-9. CPU Chassis Configuration
VNR
(OPENED TO 180 DEGREES)
FOR CLARITY.
ACTUALLY LIMITED TO
APPROX 115 DEGREES)
JIM P1
C===3'
4= 1==>
C===>
■■ • ■
• C==>
C==>
...•
■■ • ■
C==>
=it 4=>
C==> C==>
4 
C=1.
.> 
>
MV/7800 WIRING HARNESS CAPTIVE

CONNECTOR TTY CABLE CPU/CONSOLE
005-018445

SCREW 
PANEL

005-019213
INTERFACE
FS- 12726
Figure 6-10. Power Supply Captive Screw
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
043-003621

6-18 
