Nova t I on
CID
=C=1
OFF/ON
READY POWER
1BBOBT199
457
8 7 6 5 4 3 2 1
FS-12064

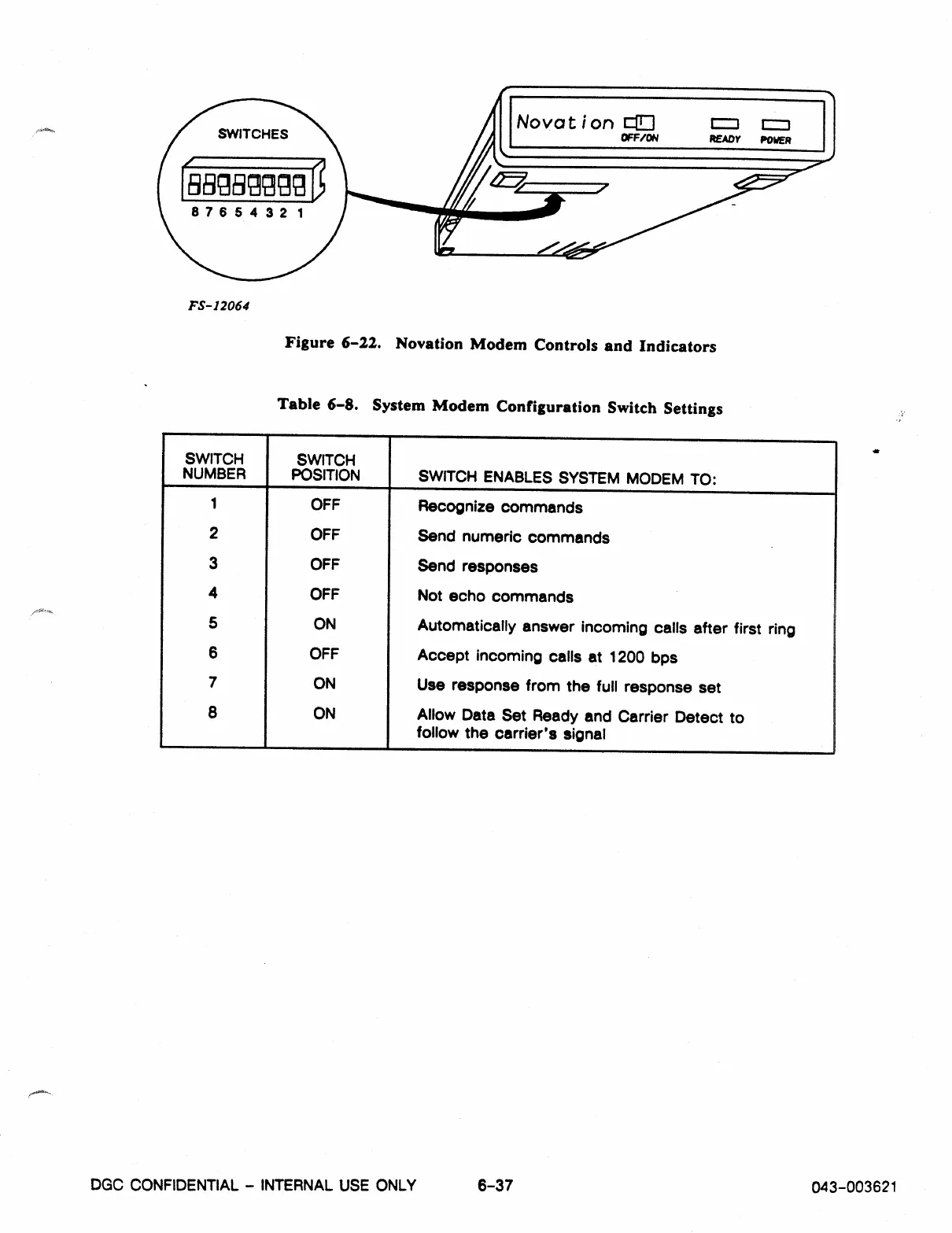

Figure 6-22. Novation Modem Controls and Indicators
Table 6-8. System Modem Configuration Switch Settings
SWITCH
SWITCH
NUMBER
POSITION
SWITCH ENABLES SYSTEM MODEM TO:
1
OFF
Recognize commands
2
OFF
Send numeric commands
3
OFF
Send responses
4
OFF
Not echo commands
5
ON
Automatically answer incoming calls after first ring
6
OFF
Accept incoming calls at 1200 bps
7
ON
Use response from the full response set
8
ON
Allow Data Set Ready and Carrier Detect to
follow the carrier's signal
