FRONT
PANEL
PCB
0 FEMALE
ONNECTOR
71
UNKEYED
WIRE
CONNECTOR
WRAP
FS-12713

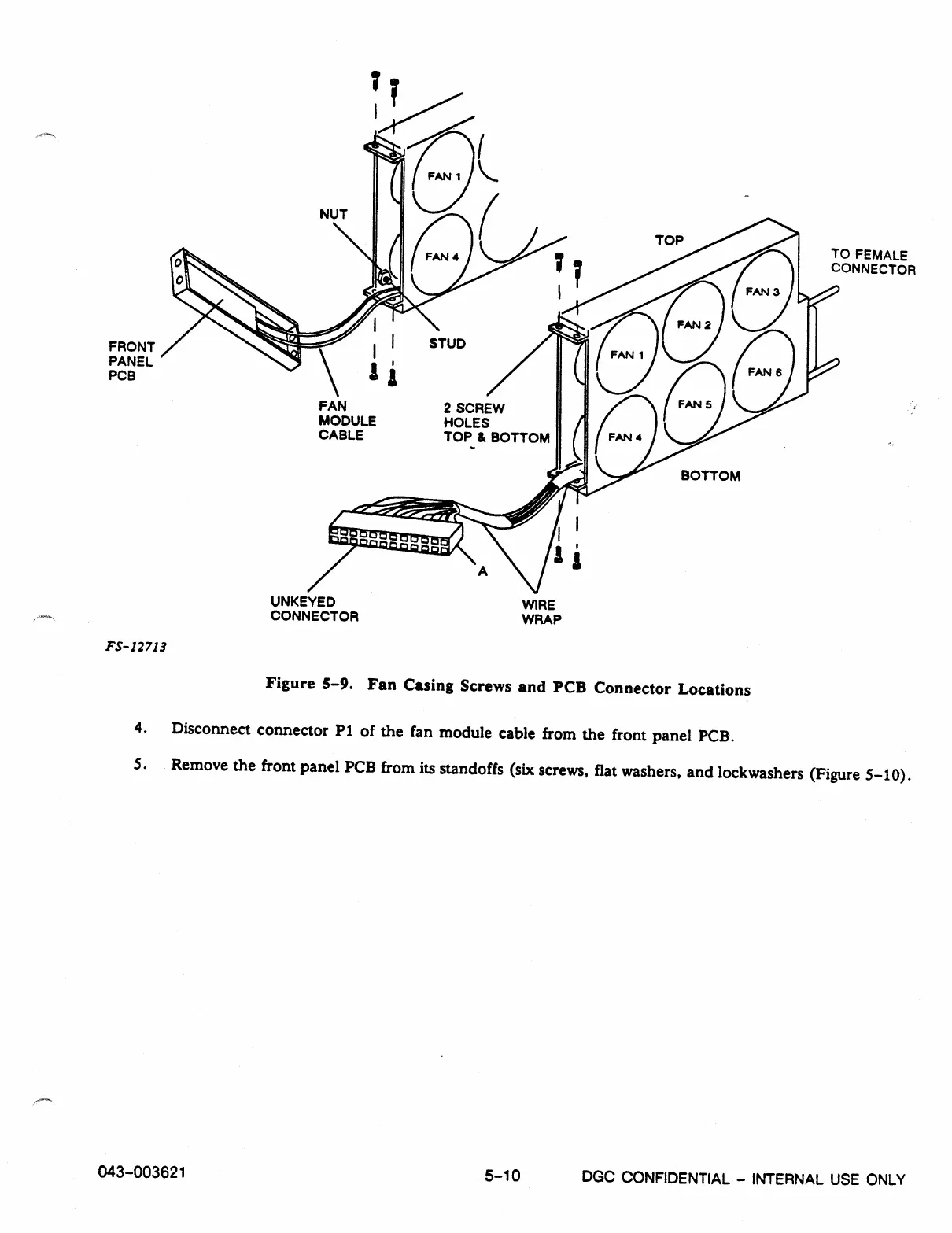

Figure 5-9. Fan Casing Screws and PCB Connector Locations
4.
Disconnect connector P1 of the fan module cable from the front panel PCB.
5.
Remove the front panel PCB from its standoffs (six screws, flat washers, and lockwashers (Figure 5-10).
043-003621
5-10
DGC CONFIDENTIAL - INTERNAL USE ONLY
