5.7 ELECMOSTATIC DISCHARGE (ESD)
Many of the PCBs within Data General equipment contain metal-oxide-semiconductor (MOS) devices which are
sensitive to and can be damaged by ESD.
Because of the danger of ESD, an ESD kit (Figure 5-11) must be used when removing and handling PCBs
(including bus repeaters). The ESD kit (Part No. 129-002200) contains the following items:
PART NO. DESCRIPTION
192-002201
192-002202
192-002203
192-002204
192-002205
192-002206
192-002207
Black mat
Straight cord, 2.743 m (9 ft)
Coil type cord, 3.048 m (10 ft)
Blue wrist band
Beige wrist band
Alligator clips (2)
Recolseable bag
WRIST
BAND
ALLIGATOR
CLIP
STRAIGHT
CORD
ALLIGATOR
SNAP
FASTENER (2)
FASTENER
FS-12788

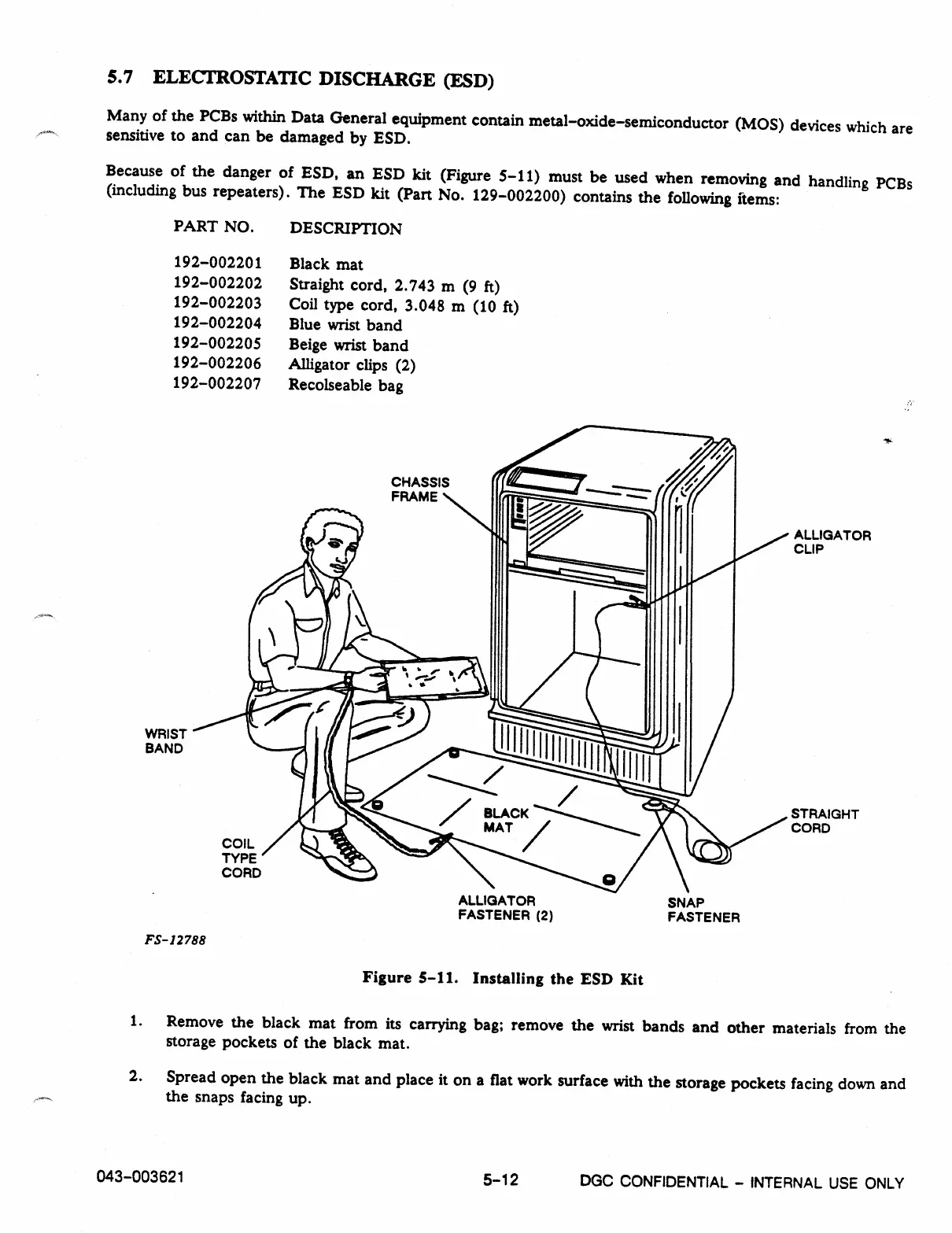

Figure 5-11. Installing the ESD Kit
1.
Remove the black mat from its carrying bag; remove the wrist bands and other materials from the
storage pockets of the black mat.
2.
Spread open the black mat and place it on a flat work surface with the storage pockets facing down and
the snaps facing up.
