Data General Service ECLIPSE MV/7800 - Page 128

TO BMC
CONTROLLERS
SLOT 3 I/O
SLOT 2 OPT MEM
SLOT 1 CPU
MEMORY EXPANSION
DAUGHTER BOARD
0 0 0
FS-12727

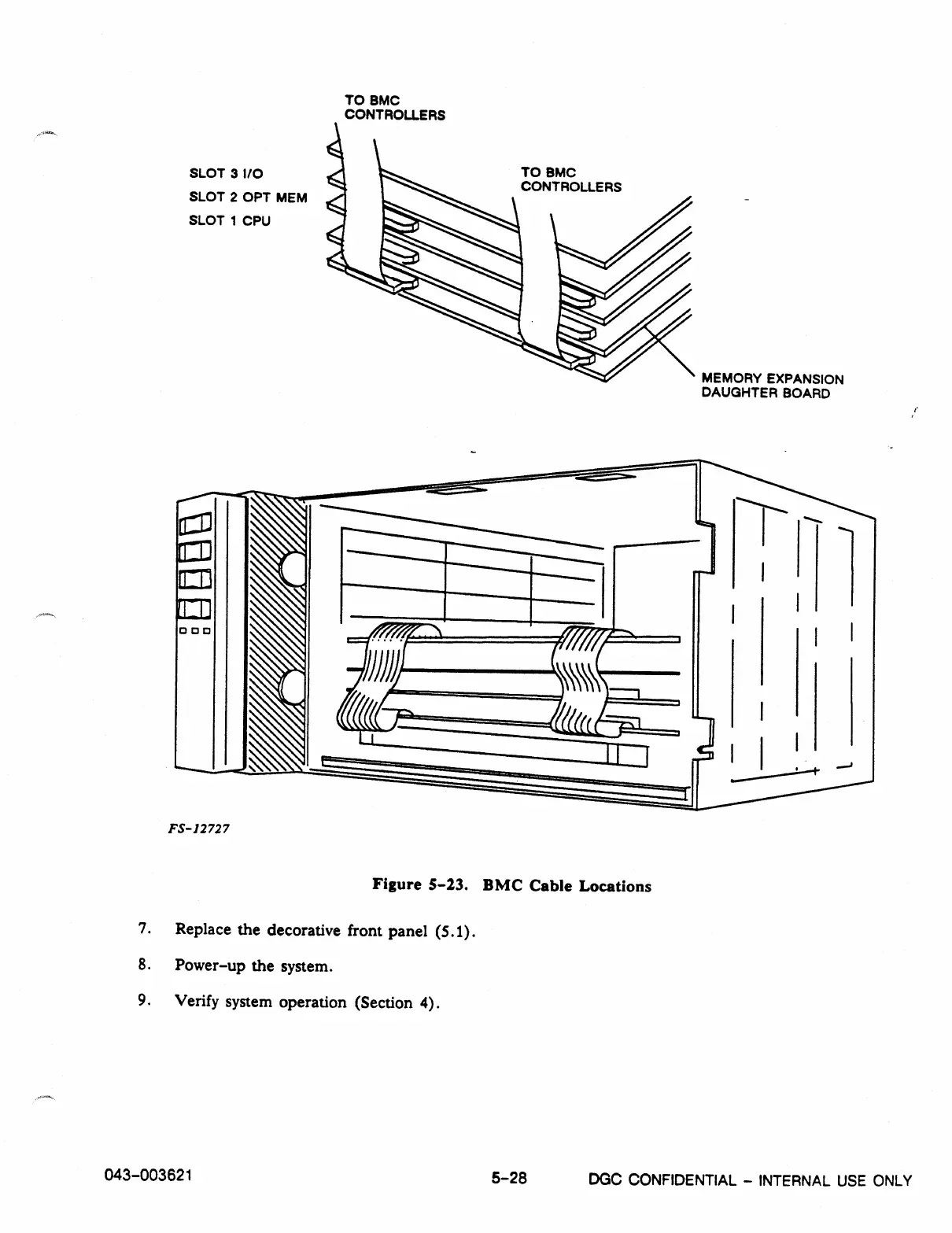

Figure 5-23. BMC Cable Locations
7.
Replace the decorative front panel (5.1).
8.
Power-up the system.
9.
Verify system operation (Section 4).
043-003621 
5-28 
DGC CONFIDENTIAL - INTERNAL
USE ONLY
