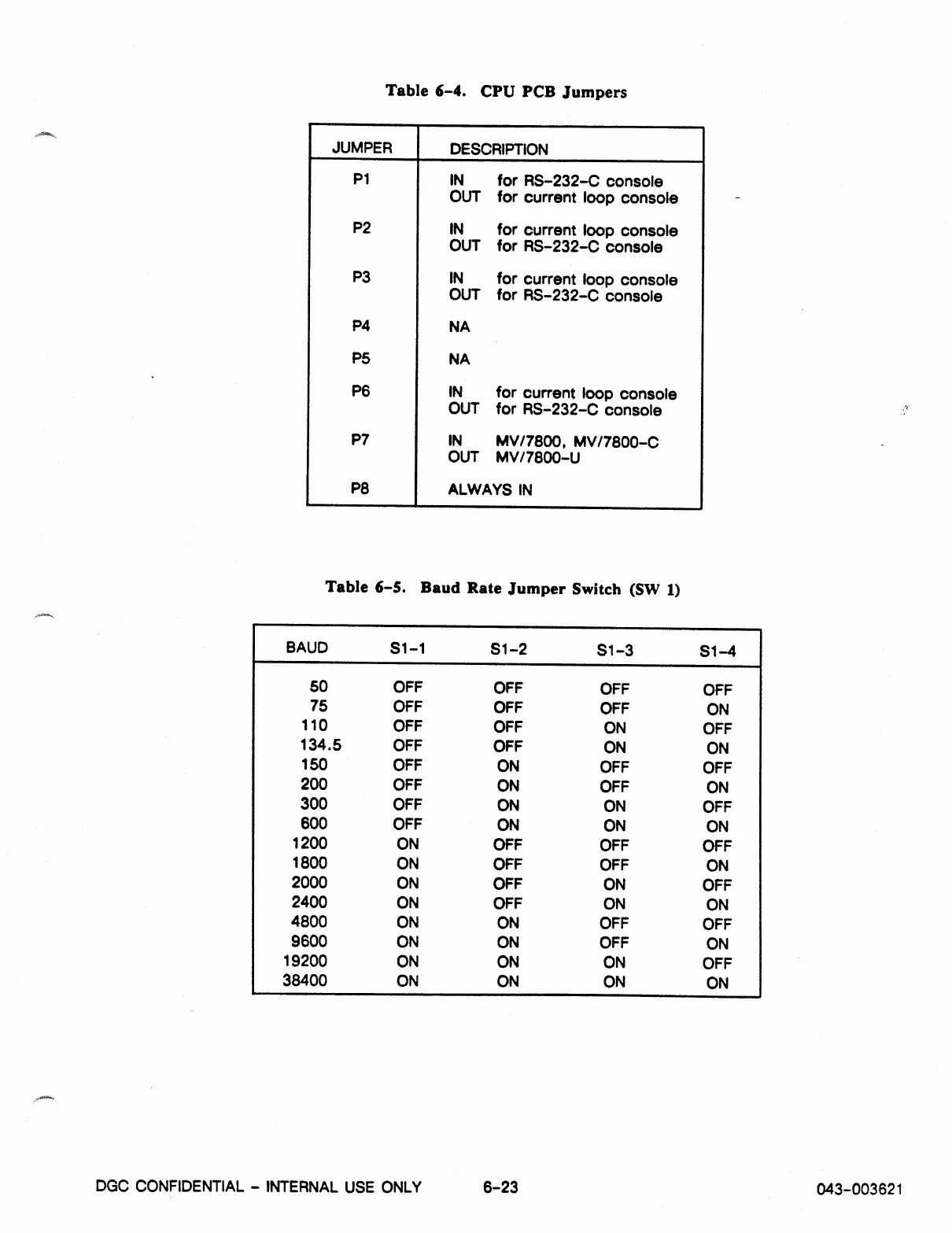

Table 6-4. CPU PCB Jumpers
JUMPER
DESCRIPTION
P1
IN 
for RS-232-C console
OUT 
for current loop console
P2
IN 
for current loop console
OUT 
for RS-232--C console
P3
IN 
for current loop console
OUT 
for RS-232-C console
P4
NA
P5
NA
P6
IN 
for current loop console
OUT 
for RS-232-C console
P7
IN 
MV/7800, MV/7800-C
OUT MV/7800-U
P8 
_
ALWAYS IN
Table
6-5.
Baud Rate Jumper Switch (SW 1)
BAUD
S1-1
S1-2
S1-3
S1-4
50
OFF
OFF
OFF
OFF
75
OFF
OFF
OFF
ON
110
OFF
OFF
ON
OFF
134.5
OFF
OFF
ON
ON
150
OFF
ON
OFF
OFF
200
OFF
ON
OFF
ON
300
OFF
ON
ON
OFF
600
OFF
ON
ON
ON
1200
ON
OFF
OFF
OFF
1800
ON
OFF
OFF
ON
2000
ON
OFF
ON
OFF
2400
ON
OFF
ON
ON
4800
ON
ON
OFF
OFF
9600
ON
ON
OFF
ON
19200
ON
ON
ON
OFF
38400
ON
ON
ON
ON
DGC CONFIDENTIAL - INTERNAL USE ONLY

6-23 
043-003621
