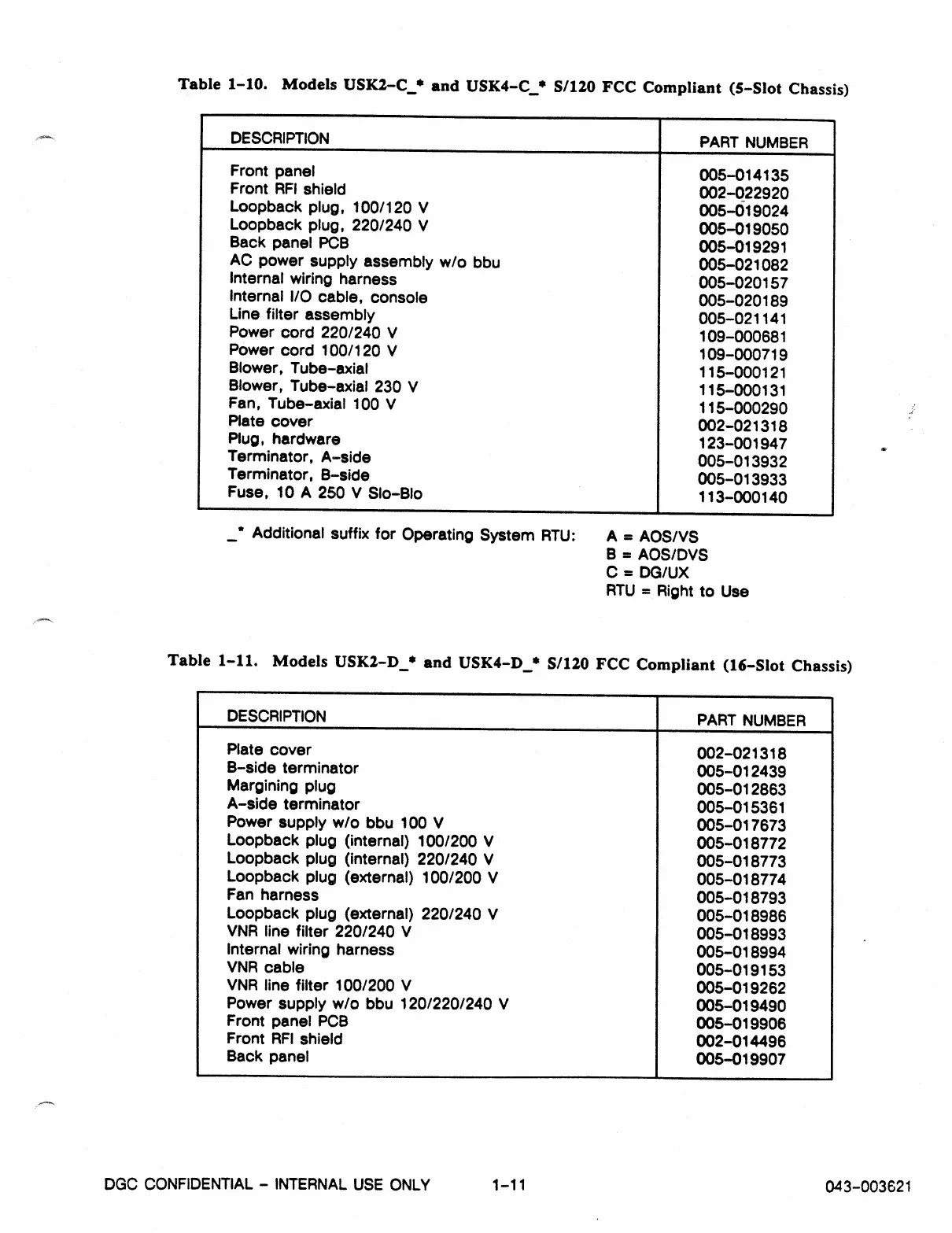

Table 1-10. Models USK2-C_* and USK4-C_* S1120 FCC Compliant (S-Slot Chassis)
DESCRIPTION
PART NUMBER
Front panel
005-014135
Front RFI shield
002-022920
Loopback plug, 100/120 V
005-019024
Loopback plug, 220/240 V
005-019050
Back panel PCB
005-019291
AC power supply assembly w/o bbu
005-021082
Internal wiring harness
005-020157
Internal I/O cable, console
005-020189
Line filter assembly
005-021141
Power cord 220/240 V
109-000681
Power cord 100/120 V
109-000719
Blower, Tube-axial
115-000121
Blower, Tube-axial 230 V
115-000131
Fan, Tube-axial 100 V
115-000290
Plate cover
002-021318
Plug, hardware
123-001947
Terminator, A-side
005-013932
Terminator, B-side
005-013933
Fuse, 10 A 250 V Slo-Blo
113-000140
* Additional suffix for Operating System RTU:
A = AOS/VS
B = AOS/DVS
C = DG/UX
RTU = Right to Use
Table 1-11. Models USK2-D_* and USK4-D_* S/120 FCC Compliant (16-Slot Chassis)
DESCRIPTION
PART NUMBER
Plate cover
002-021318
B-side terminator
005-012439
Margining plug
005-012863
A-side terminator
005-015361
Power supply w/o bbu 100 V
005-017673
Loopback plug (internal) 100/200 V
005-018772
Loopback plug (internal) 220/240 V
005-018773
Loopback plug (external) 100/200 V
005-018774
Fan harness
005-018793
Loopback plug (external) 220/240 V
005-018986
VNR line filter 220/240 V
005-018993
Internal wiring harness
005-018994
VNR cable
005-019153
VNR line filter 100/200 V
005-019262
Power supply w/o bbu 120/220/240 V
005-019490
Front panel PCB
005-019906
Front RFI shield
002-014496
Back panel
005-019907
