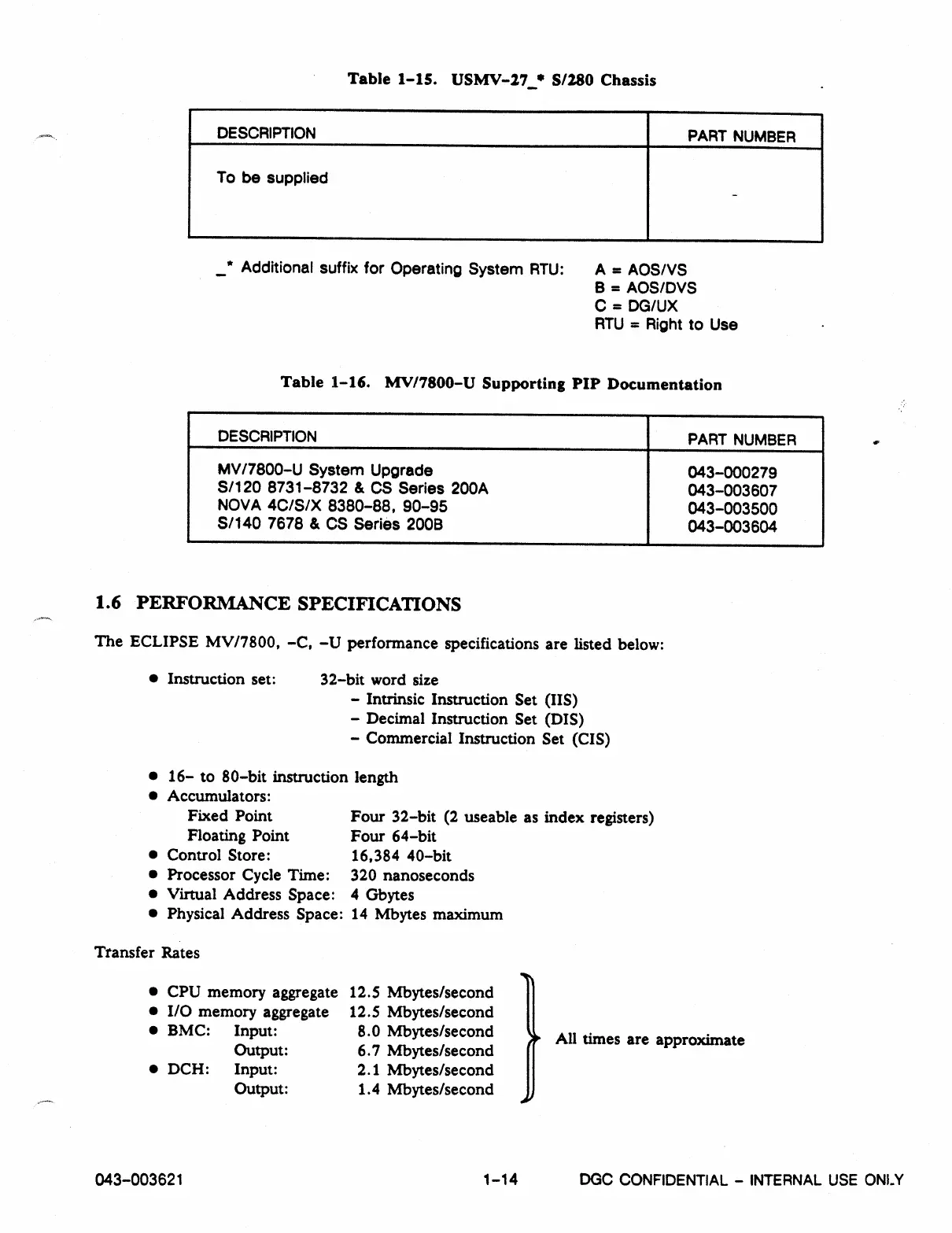

Table 1-15. USMV-272 S1280 Chassis
DESCRIPTION
PART NUMBER
To be supplied
* Additional suffix for Operating System RTU:
A = AOS/VS
B = AOS/DVS
C = DG/UX
RTU = Right to Use
Table 1-16. MV/7800-U Supporting PIP Documentation
DESCRIPTION
PART NUMBER
MV17800-U System Upgrade
043-000279
S/120 8731-8732 & CS Series 200A
043-003607
NOVA 40/S/X 8380-88, 90-95
043-003500
S1140 7678 & CS Series 200B
043-003604
1.6 PERFORMANCE SPECIFICATIONS
The ECLIPSE MV/7800, -C, -U performance specifications are listed below:
•
Instruction set:
32-bit word size
-
Intrinsic Instruction Set (IS)
-
Decimal Instruction Set (DIS)
-
Commercial Instruction Set (CIS)
•
16- to 80-bit instruction length
•
Accumulators:
Fixed Point
Four 32-bit (2 useable as index registers)
Floating Point
Four 64-bit
•
Control Store:
16,384 40-bit
•
Processor Cycle Time: 320 nanoseconds
•
Virtual Address Space: 4 Gbytes
•
Physical Address Space: 14 Mbytes maximum
Transfer Rates
•
CPU memory aggregate 12.5 Mbytes/second
•
I/O memory aggregate
12.5 Mbytes/second
•
BMC:
Input:
8.0 Mbytes/second
Output:
6.7 Mbytes/second
•
DCH:
Input:
2.1 Mbytes/second
Output:
1.4 Mbytes/second
times are approximate
043-003621
1-14
