(POWER ON)

SELF TEST INITIATED



CHECK PWR

LAMP IS LIT

ERROR



YES



SEE TABLE 4-4 POWER-UP

SELF TEST DEFINITIONS

"POWER-UP TESTING COMPLETE"

DISPLAYED ON MASTER CONSOLE

SCP-CLI> PROMPT

DISPLAYED? .

AUTO PROGRAM

LOAD MENU

DISPLAYED?

SOP CLI>

NOTE

READY FOR



SEE SUBSECTION 4.3.3

OPERATOR



TO ENTER SCP, SELECT '2'

COMMANDS



THEN; "Change preset values Menu"

displayed -

SELECT CHOICE '6' TO ENTER SCP



IF MICROCODE HAS NOT BEEN LOADED

SELECT CHOICE '3' FROM

"Change preset values Menu" AND LOAD

MICROCODE FROM DEVICE

FS- 12762

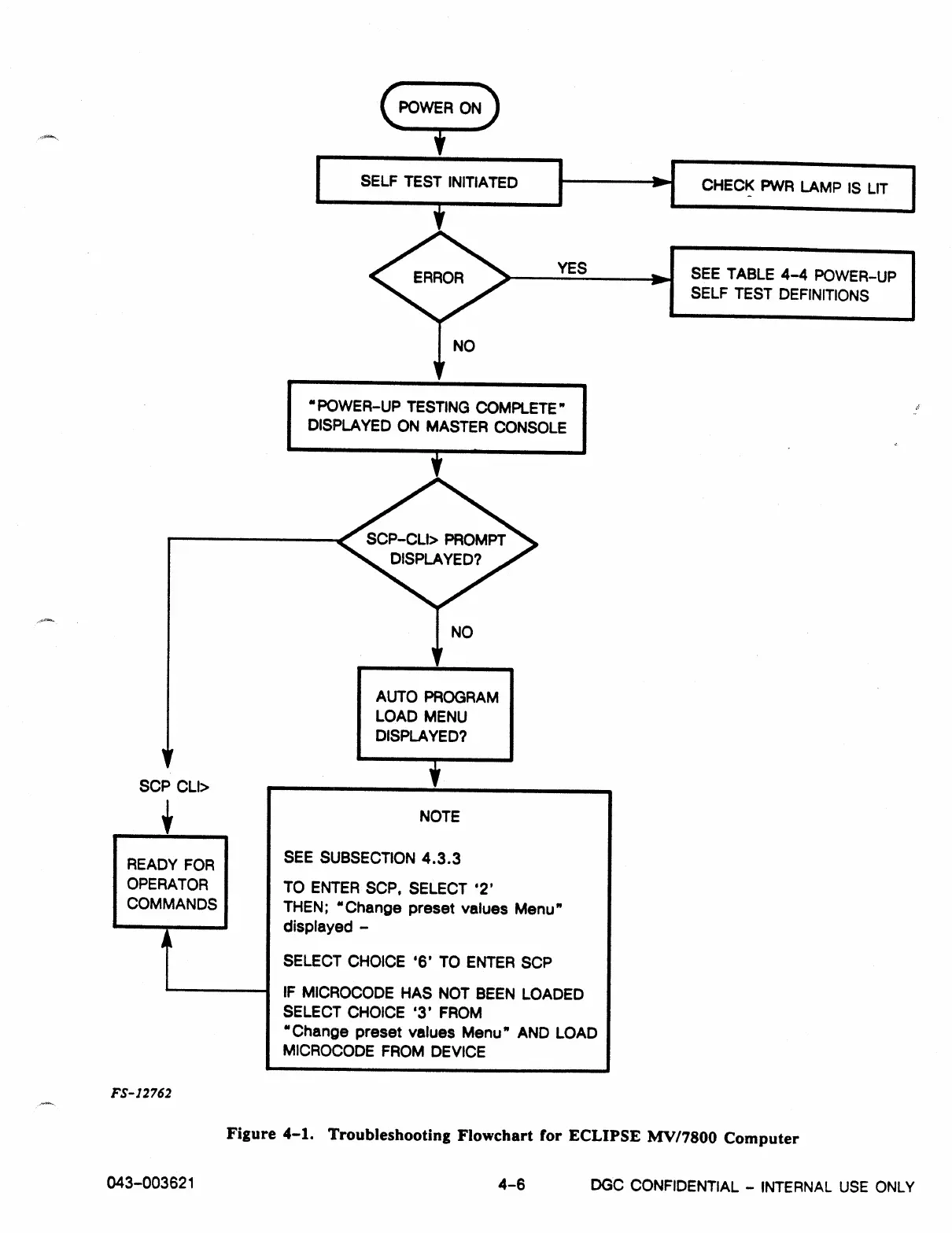

Figure 4-1. Troubleshooting Flowchart for ECLIPSE MV17800 Computer

043-003621



4-6


