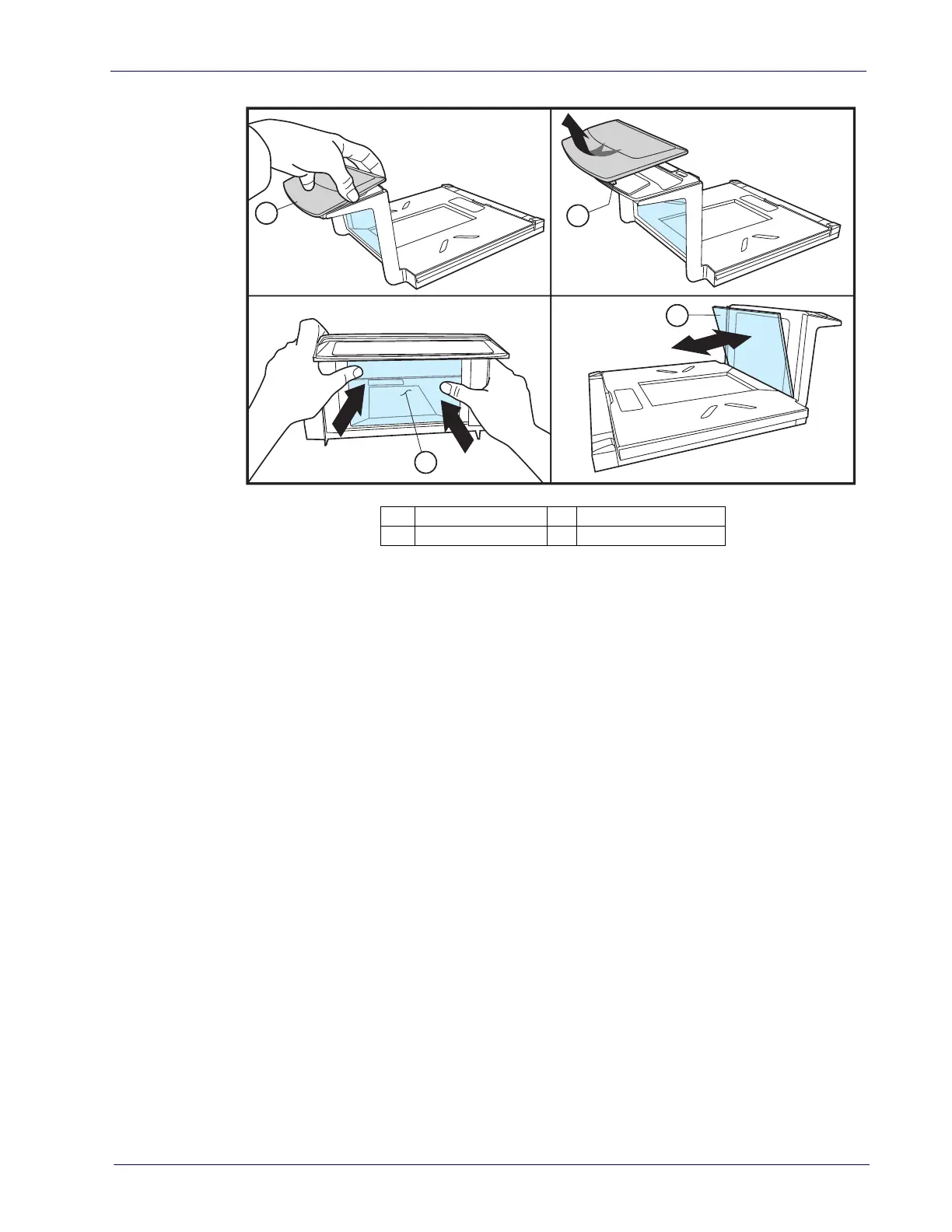

Figure 33. Vertical Scan Window Removal/Replacement
To Replace a Vertical Scan Window:
1. Carefully clean all adhesive or other obstructions from the Vertical Window
frame area of the Platter.
2. Apply adhesive squares to the corners of the backside of the Vertical Win-
dow.
3. Tilt the Vertical Window into position as shown in Figure 33d, then press
around the front edges of the window to secure it in place.
4. Reinstall the top bezel (Figure 33a), first hooking the bezel’s lip over the
Platter’s top edge, then pressing down along the front edge to engage the
bezel’s snaps.
5. Clean both sides of the Vertical Scan Window using a paper towel or lint
free cleaning tissues dampened with a mild, water-based glass cleaner.
DO NOT use abrasive cleaners or pads.
6. Reinstall the Platter. Vertical Scan Window replacement is now complete.
1
2
3
3
ab
cd
1
Top Bezel
3
Vertical Window
2
Bezel Lip

Datalogic Magellan 9400i Specifications

General

Standard interfaces	USB
Connectivity technology	Wired
Type	Built-in bar code reader
Sensor type	Linear
Scanner type	1D/2D
Light levels (direct sunlight)	0 - 86080 lx
Linear (1D) barcodes supported	GS1 DataBar Expanded, GS1 DataBar Omnidirectional, JAN, U.P.C.
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, Micro QR Code, QR Code, Small Aztec Code
Input voltage	100 - 240 V
Input frequency	50 - 60 Hz
Power source type	AC
Power consumption (standby)	11 W
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Product color	Black, Grey
Housing material	-
Sustainability certificates	RoHS

Weight and Dimensions

Depth	102 mm
Width	401 mm
Height	130 mm
Weight	- g
