CBX ELECTRICAL CONNECTIONS
82 MATRIX 320
POWER SUPPLY
Power can be supplied to the reader through the CBX100/500 spring clamp terminal
pins as shown in Figure 53:

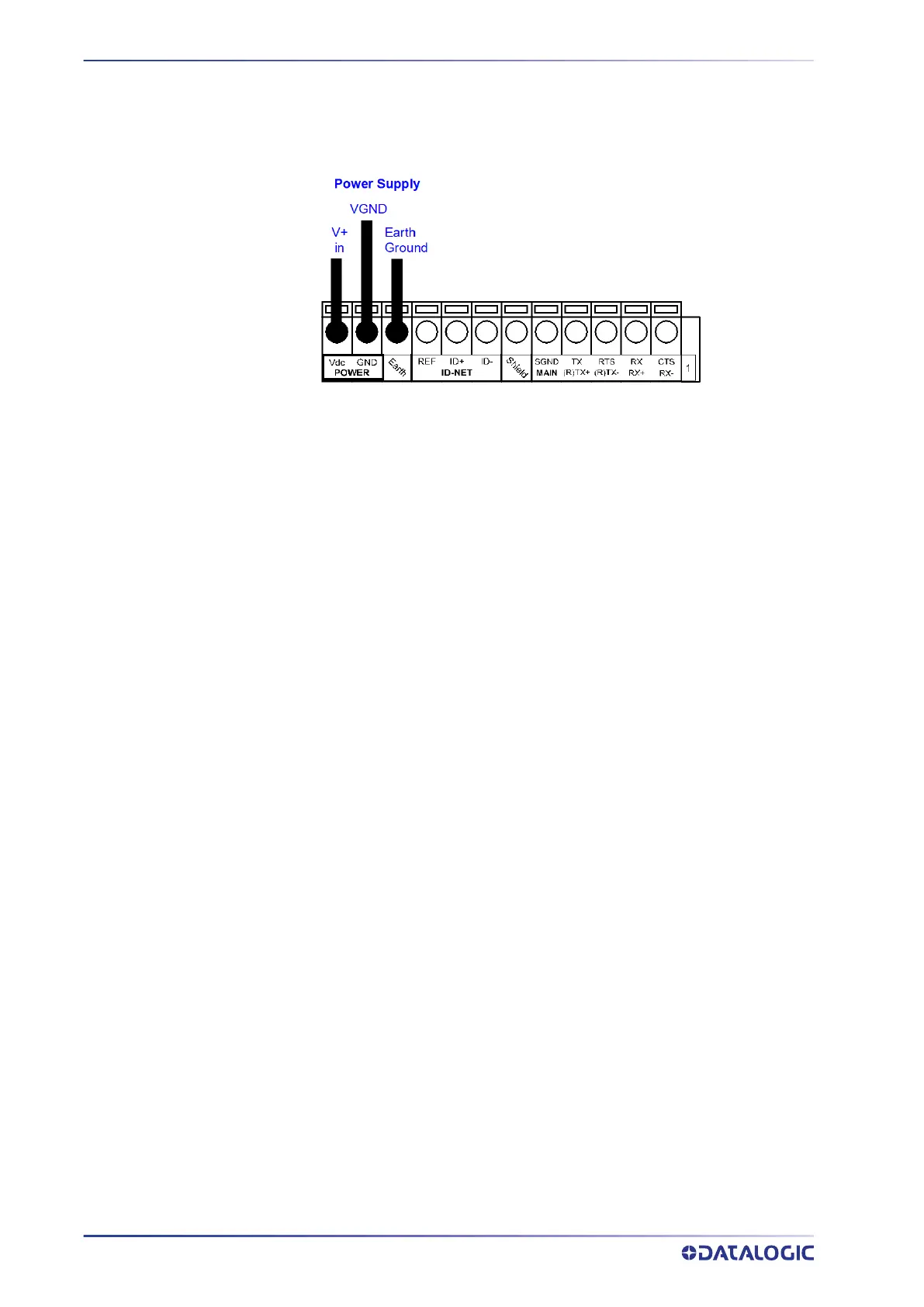

Figure 53 - Power Supply Connections
The power must be between 10 and 30 Vdc only.
It is recommended to connect the device CHASSIS to earth ground (Earth) by setting the
appropriate jumper in the CBX connection box. See the CBX Installation Manual for
details.
