MOUNTING AND POSITIONING MATRIX 320
PRODUCT REFERENCE GUIDE 65
Extended Mounting
Extended mounting allows:
• side installations with wider range of tilt angles than compact mounting (because
the side bracket frame is outside the reader volume):

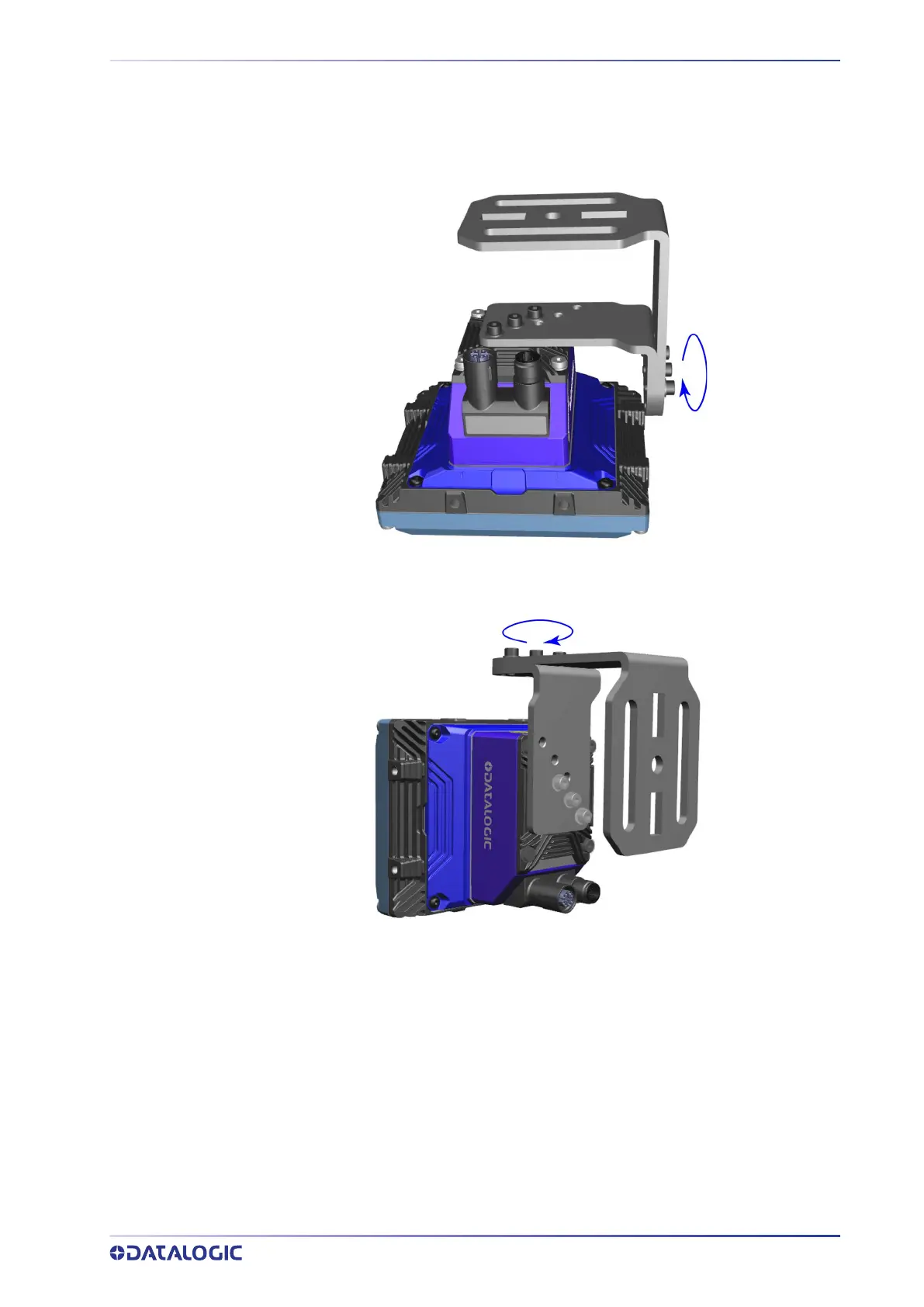

Figure 45 - Extended mounting
• frontal installations:
Figure 46 - Front extended mounting
Mount the body side of the Pivot Fix Bracket onto the heat sink of the reader using the
proper set of holes depending on the desired mounting.
To correctly couple the body-side bracket and the frame-side bracket, follow this proce-
dure:
1. Insert the silver screw and silver washer through the central hole of the frame
bracket. Thread the screw loosely into the body-side bracket. This screw can be
used as pivot to ease the rotation of the body bracket.
2. Set the desired skew angle by rotating the body-side bracket and aligning two
holes (opposite to the central hole) between the body-side bracket and the frame-
side bracket.
