Datalogic Matrix 320 Product Reference Guide

ACCESSORY COVERS AND FILTERS
PRODUCT REFERENCE GUIDE 75

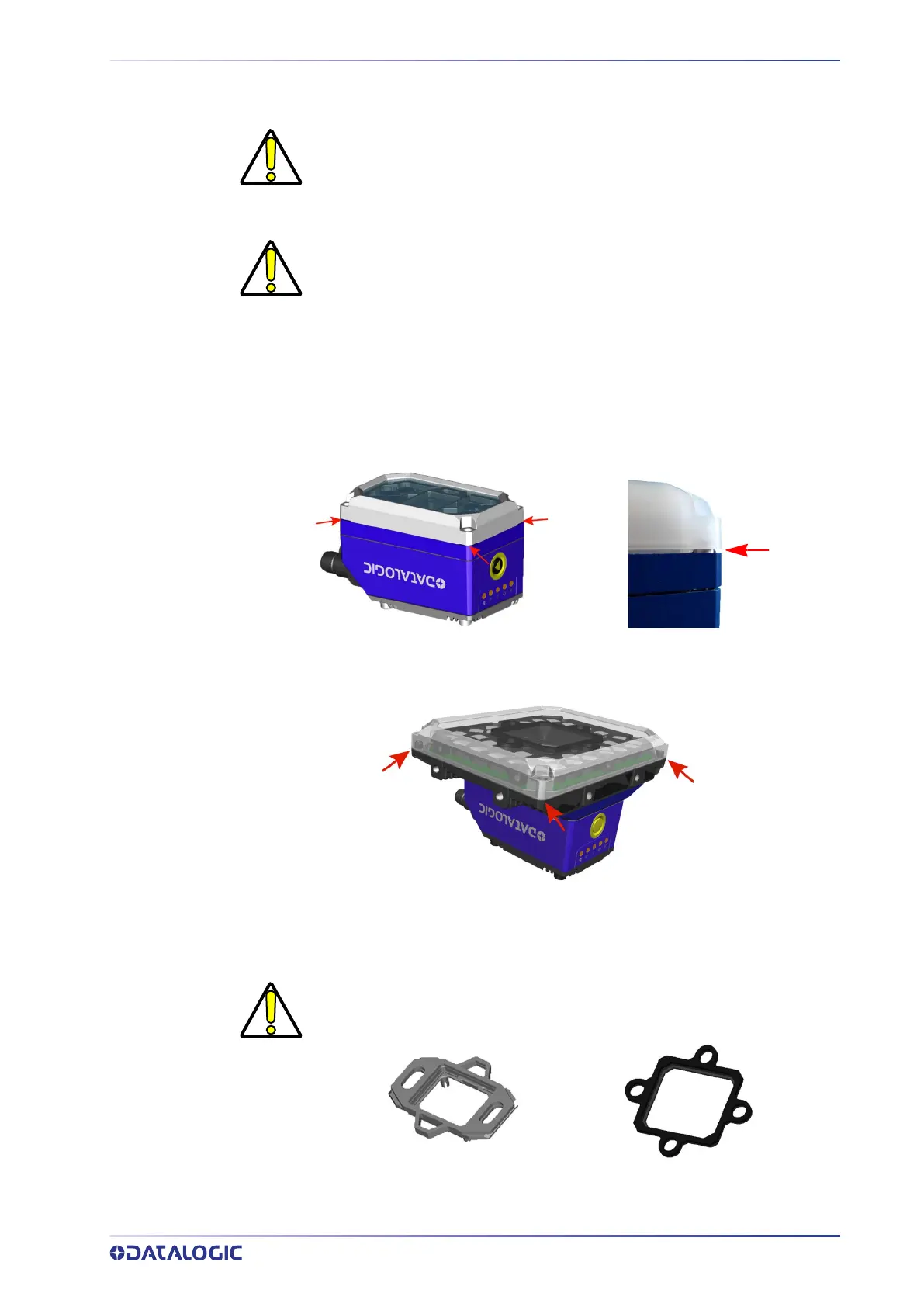

Cover Replacement
1. Unscrew the four screws using a 2.5 mm Allen wrench.
2. Remove the cover. The cover will remain attached to the body because of the gas-
ket. To unmount it properly, it is recommended to gently lever the cover from its
corners using a flat blade screwdriver between the cover and the body of the
reader. See Figure 49 and Figure 50.
Figure 49 - Removing the cover (14 LEDs model)
Figure 50 - Removing the cover (36 LEDs model)
CAUTION
The reader must be disconnected from the power supply during the
cover replacement procedure.
CAUTION
Make sure to operate in a dust-free environment during the cover
replacement procedure.
CAUTION
When removing the cover to replace it, the Poron filter frame might stick
to the removed window. Make sure to reassemble it.
Poron filter frame Poron filter frame
(14 LEDs illuminator model) (36 LEDs illuminator model)
