Datalogic Matrix 320 Product Reference Guide

INSTALLATION
72 MATRIX 320
10. Mount the heat sink (see "Heat Sink mounting instructions" on page 72).
Heat Sink mounting instructions
When to mount the heat sink
The heat sink provided in the package is to be used as an adapter for rotating brackets
and for heat dissipation. Its use is recommended especially in high ambient tempera-
ture applications. Refer to the Product Reference Guide for more information.
How to mount the heat sink
The Matrix 320 package contains the following materials to mount the heat sink:
• 1 heat sink
• 4 black screws
• 4 black washers
To install the heat sink on the reader, please follow this procedure:

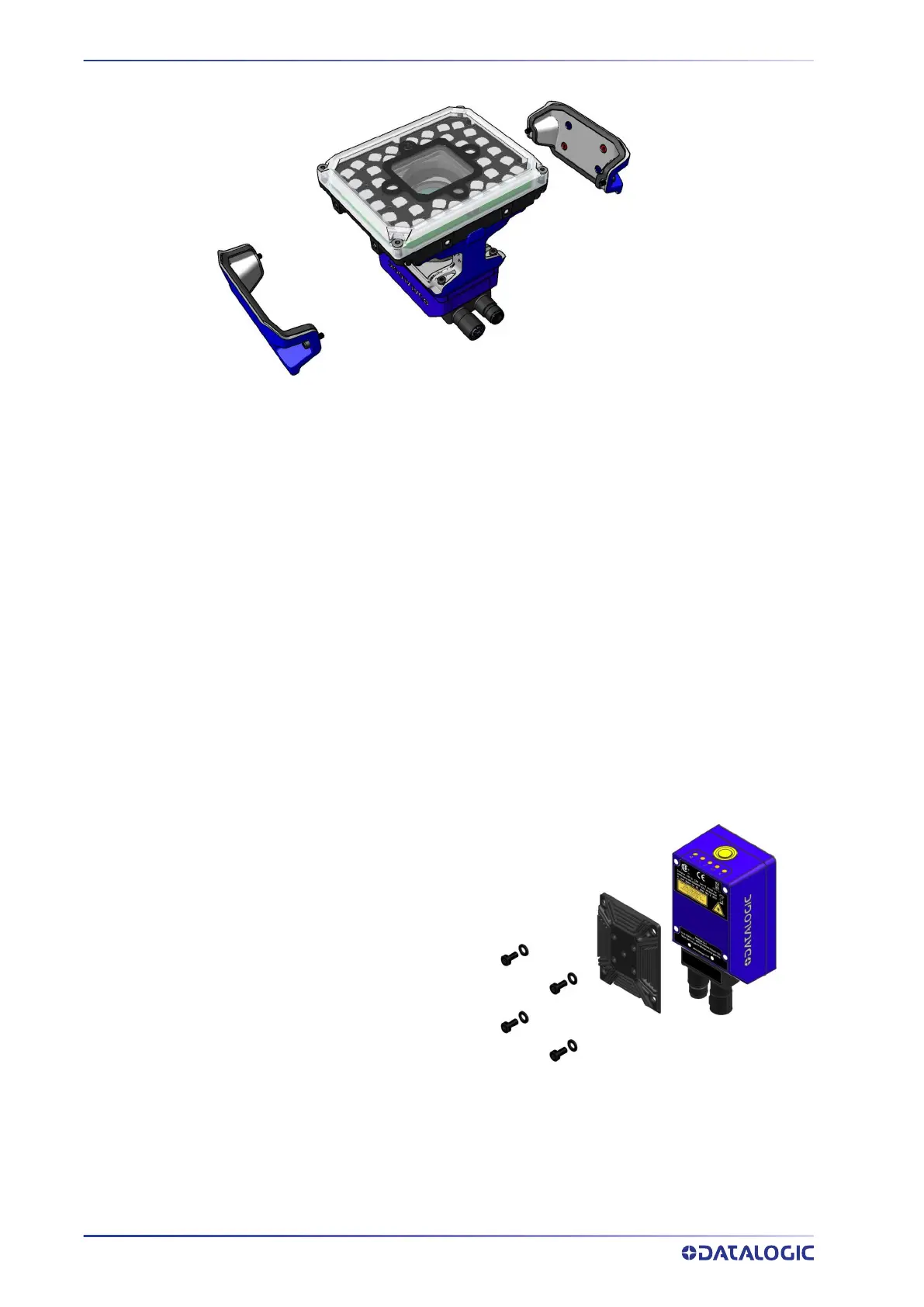

9. Mount the adapter
side covers. These
come the magnets,
so they can be
attached to a metal
board or to each
other to keep your
hands free during
installation.
1. Insert the screws and washers
through the heat sink and
thread them loosely into the
Matrix 320 reader, as shown in
the figure below.
2. Tighten the screws

Datalogic Matrix 320 Specifications

General

Brand	Datalogic
Model	Matrix 320
Category	Barcode Reader
Language	English
