CBX ELECTRICAL CONNECTIONS
98 MATRIX 320

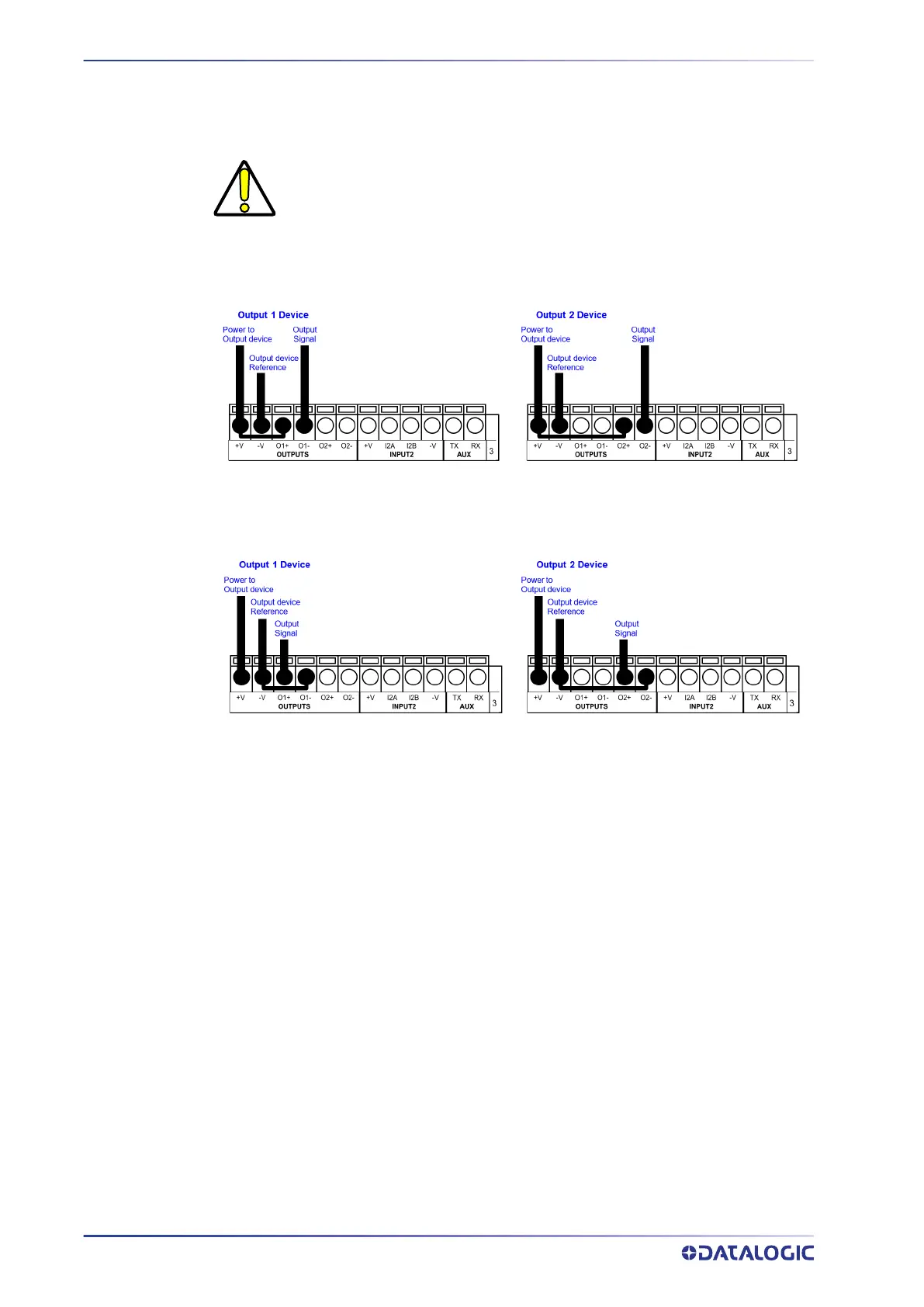

Output 1 and 2 Connections Using Matrix 320 Power
Figure 72 - PNP/Open Emitter Output Using Matrix 320 Power
Figure 73 - NPN/Open Collector Output Using Matrix 320 Power
CAUTION
Power from the Vdc/GND spring clamps is available directly to the Out-
put Device on the +V/-V spring clamps, and does not pass through the
Power Switch (ON/OFF) inside the CBX. Disconnect the power supply
when working inside the CBX.
