CBX ELECTRICAL CONNECTIONS
100 MATRIX 320
Output 3 Connections Using Matrix 320 Power (CBX500 Only)

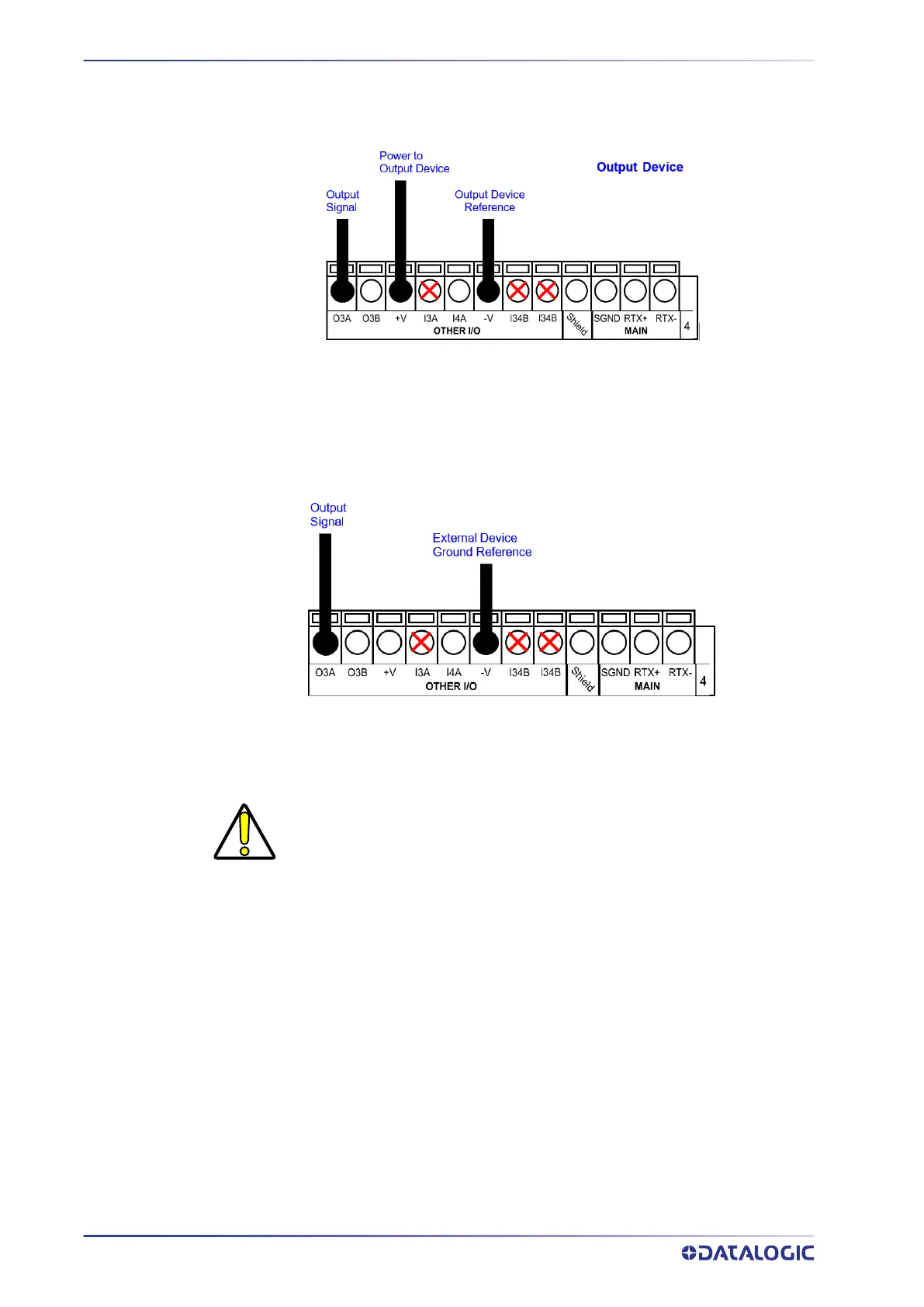

Figure 76 - Output 3 Using Matrix 320 Power
Output 3 Connections Using External Power (CBX500 Only)
Figure 77 - Output 3 Using External Power
CAUTION
Do not connect to I3A or I34B signals, they are reserved.
