ON-BOARD ETHERNET INTERFACE
PRODUCT REFERENCE GUIDE 101
ON-BOARD ETHERNET INTERFACE
The on-board Ethernet Interface can be used for TCP/IP communication with a remote
or local host computer by connecting the reader to either a LAN or directly to a host PC.
There is no need to use a crossover adapter since Matrix 320 incorporates an auto-cross
function.
A CAB-ETH-X-M0x cable can be used to connect to a LAN.
On the Matrix 320 on-board Ethernet interface the following communication channels
are available:
• TCP Client
• TCP Server
• UDP Channel
• FTP Client
The following Fieldbus protocols are also available over the on-board Ethernet inter-
face:
• EtherNet/IP
• PROFINET IO
• Modbus TCP Client
• Modbus TCP Server
• SLMP
For further details refer to the Help On Line page of the Reading Phase step (Channels)
and (Fieldbuses) in DL.CODE.
USER INTERFACE - SERIAL HOST
The following table contains the pinout for standard RS232 PC Host interface. For other
user interface types please refer to their own manual.

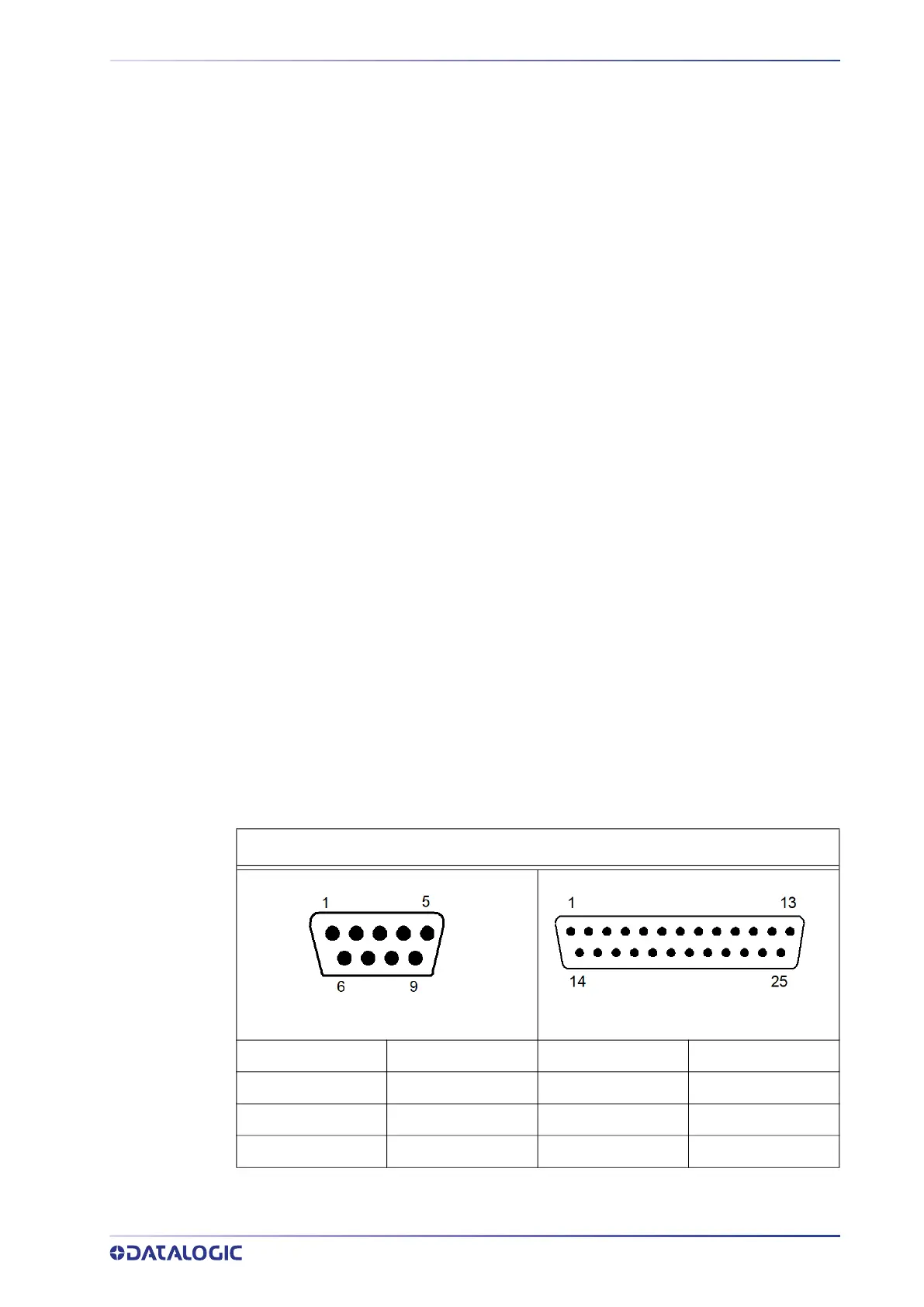

RS232 PC-side Connections
9-pin male connector 25-pin male connector
Pin Name Pin Name
2 RX 3 RX
3 TX 2 TX
5 GND 7 GND
