INDICATORS AND KEYPAD BUTTON
PRODUCT REFERENCE GUIDE
35
INDICATORS AND KEYPAD BUTTON

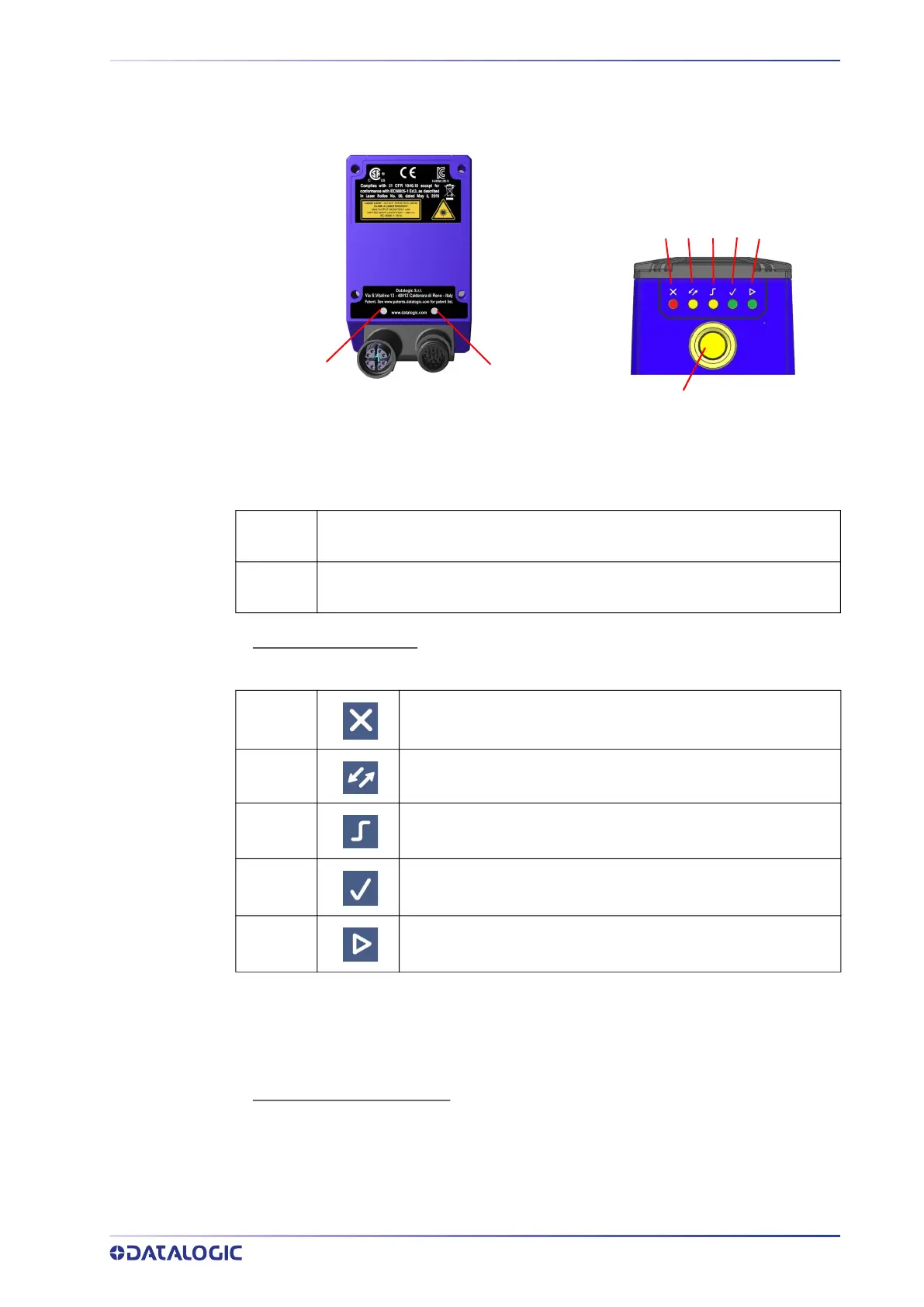

Figure 16 - Indicators
The following LED indicators are located on the reader:
In normal operating mode
the colors and meaning of the five LEDs are illustrated in the
following table:
* When connected to a Fieldbus network through the CBX500, the COM LED is always active, even
in the absence of data transmission, because of polling activity on the Fieldbus network.
During the reader startup (reset or restart phase), these five LEDs blink for one second.
In X-PRESS Configuration mode
the colors and meaning of these five LEDs are described
in X-PRESS Human Machine Interface.
The keypad button (Figure 16, 8) is software programmable. By default it starts the X-
PRESS interface for quick installation without using a PC (see "
Step 3A - Aim and Autofo-
cus the reader" on page 3
).
PWR
blue LED indicates that the reader is connected to the power supply (Figure
16, 1)
NET
yellow LED indicates connection to the on-board Ethernet network (Figure
16, 2)
STATUS
red LED indicates a NO READ result (Figure 16, 3)
COM
yellow LED indicates active communication on the main serial port
* (Figure 16, 4)
TRIGGER
yellow LED indicates the status of the reading phase (Figure 16,
5)
GOOD
green LED confirms successful reading (Figure 16, 6)
READY
green LED indicates that the reader is ready to operate (Figure
16, 7)
