INSTALLATION
56
MATRIX 320
MECHANICAL DIMENSIONS
Matrix 320 can be installed to operate in different positions. The four screw holes (M4 x
8 mm) on the body of the reader are for mechanical fixture.
The diagrams below give the overall dimensions of the reader and may be used for its
installation.
Refer to page 62 for various mounting solutions and correct positioning, and
Chapter 6,
Reading Features
for FOV vs. Reading Distance considerations.

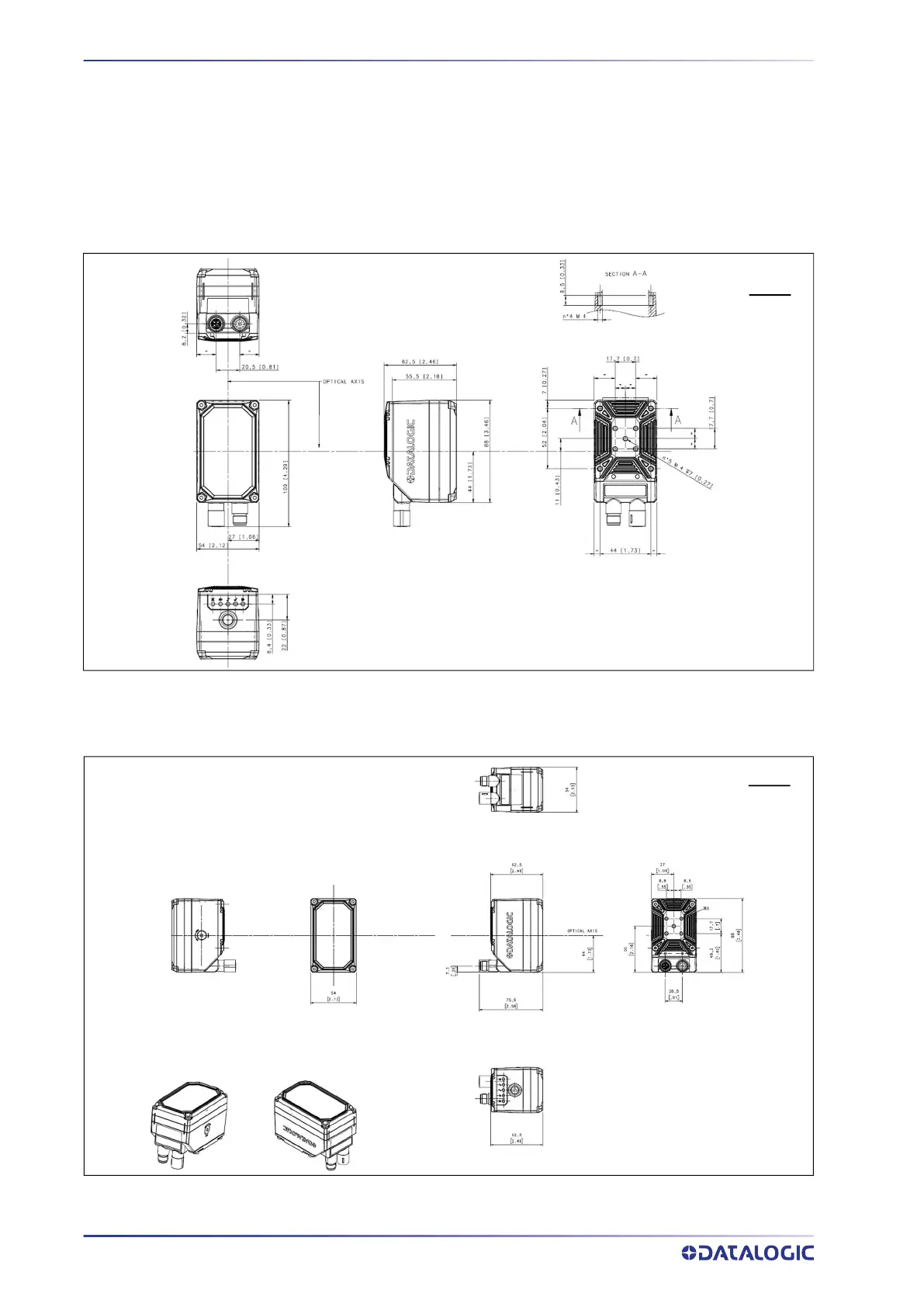

Figure 29 - Matrix 320 (Liquid Lens) with 14 LEDs illuminator (connectors 0°)
Figure 30 - Matrix 320 (Liquid Lens) with 14 LEDs illuminator (connectors 90°)
mm
[inch]
mm
[inch]
